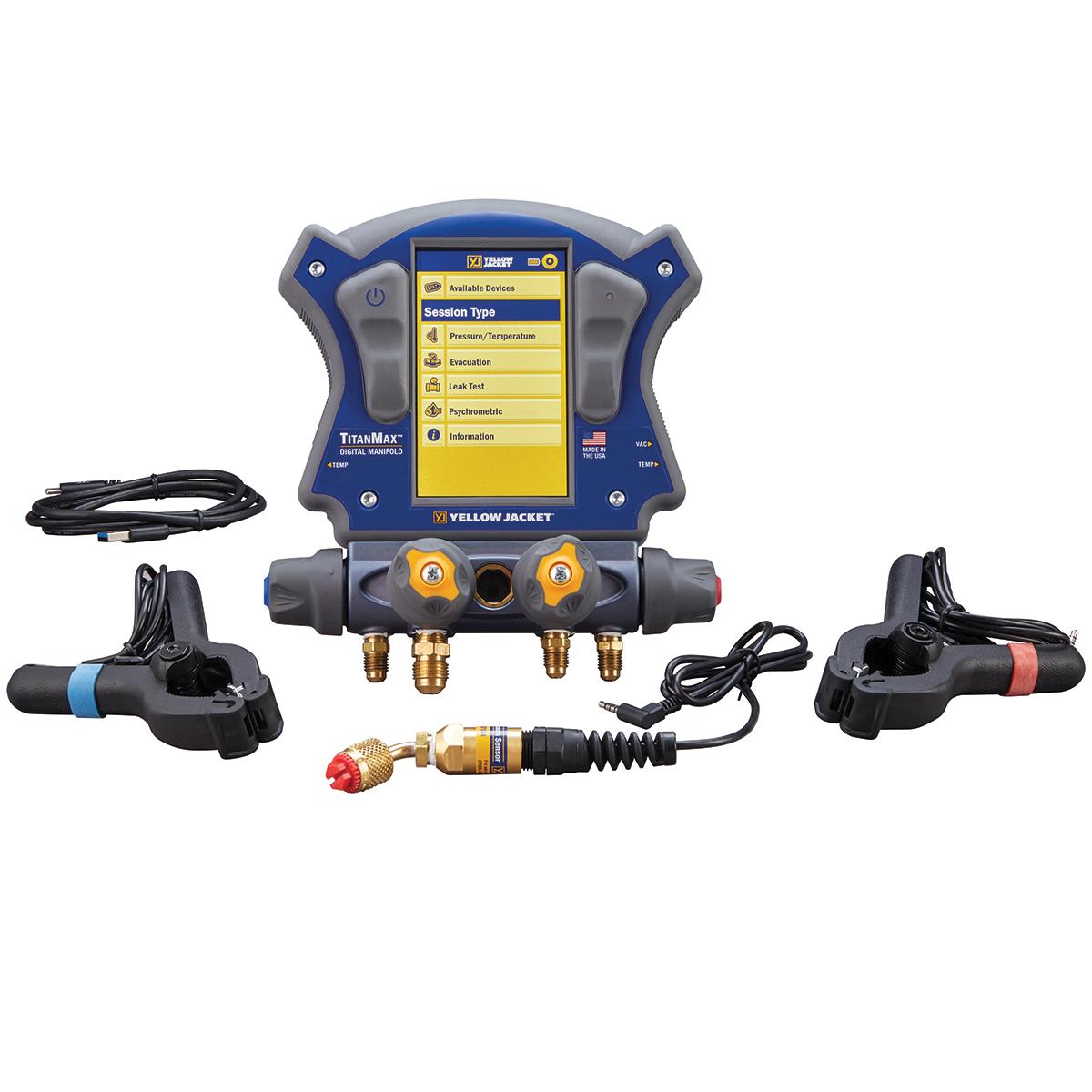

The YELLOW JACKET® TITANMAX™ Digital Manifold provides the easiest path to system measurements. This 4-valve manifold provides fast and accurate measurements for refrigeration and A/C systems. The high resolution backlit touchscreen display erases the need for multi-function buttons and provides clear graphical and digital measurements. It also features internal data logging. Connect via Bluetooth® to the YJACK VIEW® App or measureQuick® App for further analysis.
Yellow Jacket® TITANMAX™ Manifold, 740 psia, 140 to -4 deg F, +/-0.36 % Accuracy, 0.1 deg F/deg C Temperature Resolution, 5 in Display, Backlit Touchscreen Display, IP52 Enclosure, -40 to 266 deg F Temperature Measuring, Battery, 9 in L x 8-1/2 in W x 4 in D, Domestic/Import: Domestic
| Accuracy | : | +/-0.36 % |
| Dimensions | : | 9 in L x 8-1/2 in W x 4 in D |
| Display Size | : | 5 in |
| Display Type | : | Backlit Touchscreen |
| Domestic/Import | : | Domestic |
| Enclosure Type | : | IP52 |
| Measuring Range | : | -40 to 266 deg F Temperature |
| Power Supply | : | Battery |
| Pressure Rating | : | 740 psia |
| Resolution | : | 0.1 deg F/deg C Temperature |
| Temperature Rating | : | 140 to -4 deg F |
- Measures high and low side pressures and temperatures
- Displays vapor and liquid saturation temperatures
- Calculates system superheat and subcooling
- On-board data logging; export to your computer with USB or to your phone via YJACK VIEW® App
- Compatible with measureQuick® App
- Pressure hold mode displays rate of change for vacuum and positive pressure measurements
- Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW®
- High resolution, full color, backlit, 5″ touchscreen display

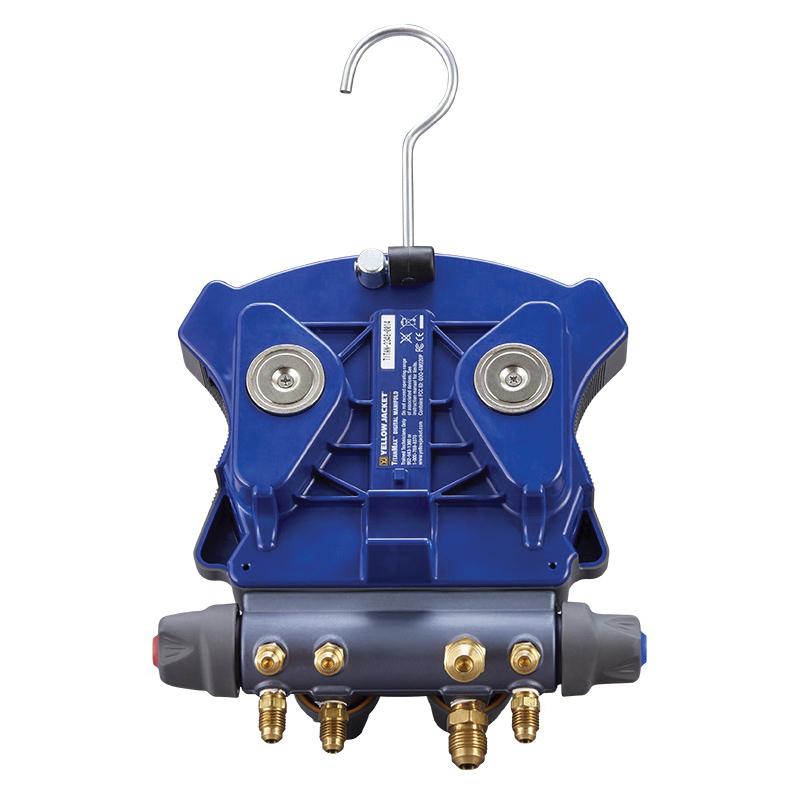

- Robust housing with ergonomic grip
- External vacuum sensor with vacuum target notification

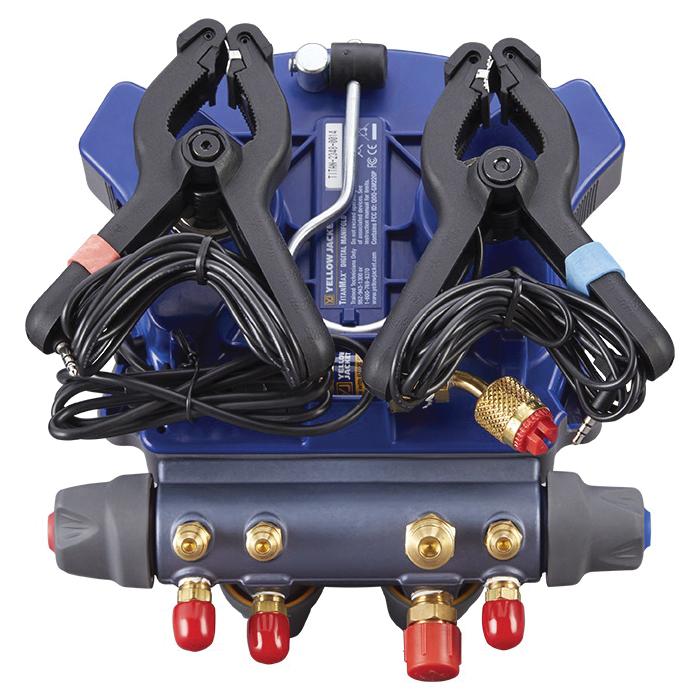

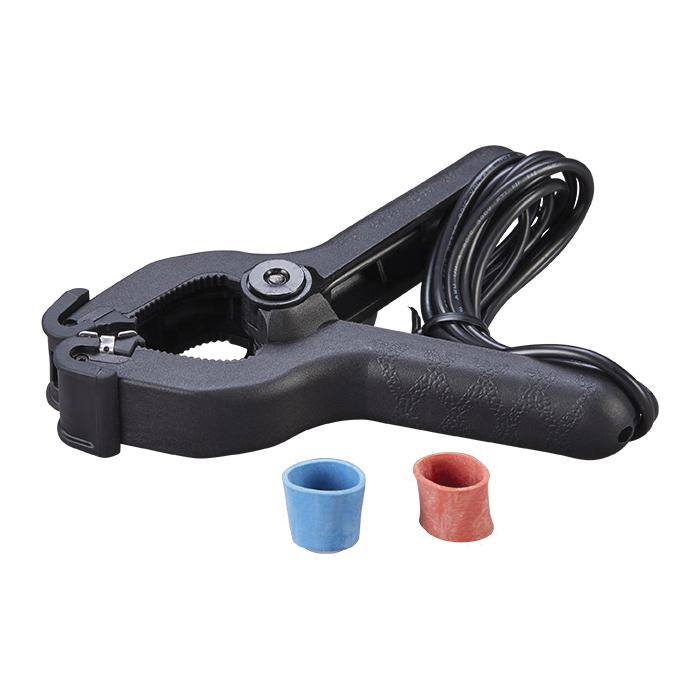

- Larger temperature clamps (2) for up to 1-5/8″ pipes
- Bluetooth® 5.2; range up to 1,000 feet
- Maximum working pressure 740 psia (51.0 bar)
- Multiple languages: French, Spanish, German and English
- Rechargeable battery with life indicator
- US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2)
- Meets IP52 standards
- Two-year warranty
