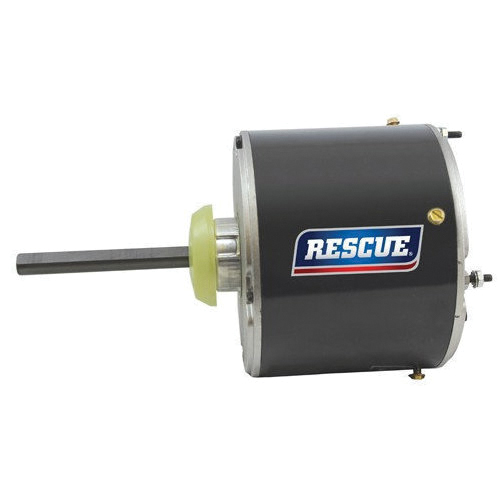

US Motors® Motor, 0.333 hp, 208-230 V, 2.6 A, 1.8 A, 60 Hz, 1 ph, 1075 rpm, 2 Speed, TEAO Enclosure, 48 Frame, 1/2 x 5 in Shaft, 1 Service Factor, Ball Bearing, 45.13 ft-oz Breakdown, 7.584 ft-oz Locked Rotor Torque, Stud Mounting, 140 deg F, Insulation Class: Class B, 5.6 in Overall Width, 9.562 in Overall Depth, For Use With: 370 V Permanent Split Capacitors, Additional Information: Model K055WDJ0404012B, FHP Motor Type, CCW Lead End Reversible Rotation, 6-Pole
| Additional Information | : | Model K055WDJ0404012B, FHP Motor Type, CCW Lead End Reversible Rotation, 6-Pole |
| Amperage Rating | : | 2.6 A, 1.8 A |
| Bearing Type | : | Ball |
| Dimensions | : | 5.6 in Dia x 10.3 in L |
| Duty Type | : | Continuous |
| Enclosure Type | : | TEAO |
| Frame Size | : | 48 |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 0.333 hp |
| Insulation Class | : | Class B |
| Motor Enclosure Type | : | Totally Enclosed Air Over |
| Mounting Type | : | Stud |
| Number of Speeds | : | 2 |
| Overall Depth | : | 9.562 in |
| Overall Width | : | 5.6 in |
| Phase | : | 1 ph |
| Rotation Type | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 x 5 in |
| Speed Rating | : | 1075 rpm |
| Suitable For Use With | : | 370 V Permanent Split Capacitors |
| Temperature Rating | : | 140 deg F |
| Torque Rating | : | 45.13 ft-oz Breakdown, 7.584 ft-oz Locked Rotor |
| Voltage Rating | : | 208-230 V |
- 140degF (60degC) Ambient Design
- Bearings Have All Angle Thrust System
- Class B Insulation
- Suitable for Use With 370V Capacitors
- Extended Studs
- 30" Leads
- Hubless Lead End
- Drain Holes Both Ends
- Reversible Rotation (Unless otherwise noted)
- Automatic Reset Thermal Overload Protector
- Continuous Duty
- 208v will not be marked on DOE regulated spread-voltage motors.
