Samsung CXH18ADB SAM AC018BXADCH/AA
  1. pin-int

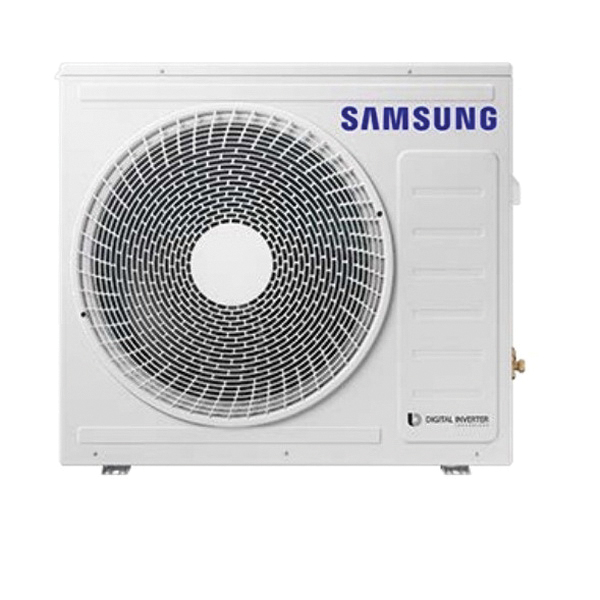

Samsung CXH18ADB SAM AC018BXADCH/AA

Samsung CXH18ADB Multi-Position Air Handler Outdoor Unit, 208-230 V, 18.7 A, 18000 Btu/hr Cooling, 1 ph-Phase, Steel

  • Manufacturer: Samsung
  • Brand Name: Samsung
  • Part Number: SAM AC018BXADCH/AA
  • MPN: CXH18ADB
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Samsung Multi-Position Air Handler Outdoor Unit, 208-230 V, 18.7 A, 125 W, 60 Hz, 1-Phase, 3 Fan Speeds, 20000 Btu/hr Heating, 18000 Btu/hr Cooling, 2154 cfm Heating CFM Rating, 600 cfm Cooling CFM Rating, 12 EER Rating, 19.2 SEER, 10 HSPF, Pipe Connection, 1/4 in Liquid Line, 3/8 in Suction Line, Inverter Drive, 48 dB Heating Sound Level, 48 dB Cooling Sound Level, Steel, Finish: Powder-Coated, -4 to 75 deg F Heating Operating Temperature, 23 to 122 deg F Cooling Operating Temperature, 34-5/8 in Overall Length, 31-7/16 in Overall Width, 12-1/4 in Overall Height

Amperage Rating      :      18.7 A
Connection Type      :      Pipe
Cooling BTU Rating      :      18000 Btu/hr
Cooling CFM Rating      :      600 cfm
Cooling Operating Temperature      :      23 to 122 deg F
Cooling Sound Level      :      48 dB
Drive Type      :      Inverter
EER Rating      :      12
Finish      :      Powder-Coated
Frequency Rating      :      60 Hz
HSPF Rating      :      10
Heating BTU Rating      :      20000 Btu/hr
Heating CFM Rating      :      2154 cfm
Heating Operating Temperature      :      -4 to 75 deg F
Heating Sound Level      :      48 dB
Liquid Line Size      :      1/4 in
Material      :      Steel
Number of Fan Speeds      :      3
Overall Height      :      12-1/4 in
Overall Length      :      34-5/8 in
Overall Width      :      31-7/16 in
Phase      :      1 ph
Power Rating      :      125 W
SEER Rating      :      19.2
Suction Line Size      :      3/8 in
Voltage Rating      :      208-230 V
  • The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire
  • High-voltage terminal block temperature sensor to disable unit in the event of power connection overheating
  • Auto-restart after power loss
  • Soft-start compressor minimizing current inrush
  • All heat exchangers shall be mechanically bonded aluminum fin to copper tube
  • The condensing unit heat exchanger salt spray test method: ASTM-B117-18 - the heat exchanger showed no unusual rust or corrosion development to 2,280 hours
  • Base pan heater equipped as standard
  • Indoor Unit: Insulated, galvanized steel
  • Control wiring shall be 2 X 16 AWG
  • No additional interface modules/adapters are required when connecting to Samsung central control options
  • The unit shall be operated via a wireless or wired remote control with DDC type signal
  • Dual set temperature support when connected to MWR-WG00UN Advanced Wired Controller or central control options
  • Wired or wireless controllers must be purchased separately Refrigerant System
  • The compressor shall be hermetically sealed, inverter-controlled BLDC rotary type
  • Refrigerant flow shall be controlled by an electronic expansion valve at outdoor unit :DUUDQW\ 10 Years compressor, 10 years parts, 1 year limited labor when registered Controls
  • System shall provide 100% heating capacity at -4degF(-20degC)
  • The outdoor unit shall have snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit
  • Night-time Quiet Mode: reduction of operational sound during (automatic or manual activation)
  • System can be set up as heating/cooling, cooling only, or heating only via outdoor unit option setting
  • Maximum Current Control configurable from 50% - 100% via outdoor unit, wired controller, or central controller
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_CXH18ADB_Specification_Sheet.pdf
