rFOIL® 2280-48-075 RXHVBB48075
rFOIL® Big 8™ 2280-48-075 Reflective Duct Insulation With Air Spacer, 75 ft L, 48 in W, 1 in Thick, Polyethylene
- Manufacturer: Covertech Fabricating Inc
- Brand Name: rFOIL®
- Part Number: RXHVBB48075
- MPN: 2280-48-075
- UPC: 629136011447
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:

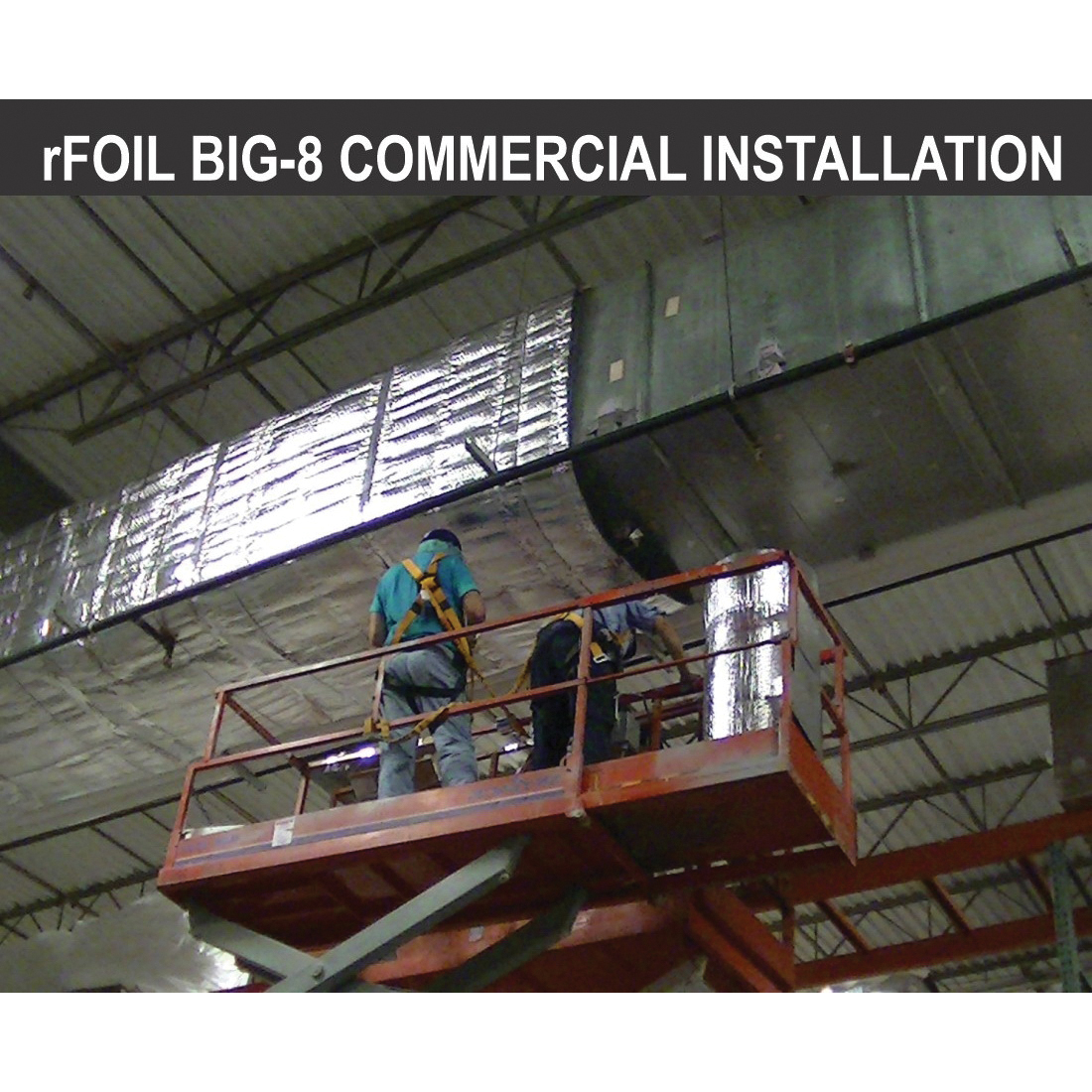

Designed, manufactured, tested and certified to meet R8 code requirements for all duct types, rFOIL Big 8 2280 Reflective Duct Insulation series is a consistent contractor's choice. Our rFOIL Big 8 2280 Reflective Duct Insulation series consists of two layers of thick polyethylene bubble pack reflective insulation connected by 2-inch wide spacers. Multi-Layer Duct Insulation-Reflective Duct Insulation with built in spacer strips and multi-layer reflective insulation. An inspector-friendly easily visible code certification strip on Big-8 means no hassles at the jobsite and extra peace of mind for installers!. The Big-8 Reflective Duct Insulation has been tested to an R-8 and is classified as Class 1/Class A in accordance with the ASTM E84-09 fire test standard. The product was mounted in accordance to ASTM-E2599-08. rFOIL Big-8 is specially designed to reduce radiant heat gain/loss in all residential and commercial duct applications. rFOIL also helps control condensation by providing an airtight thermal break around duct work.
rFOIL® Big 8™ Reflective Duct Insulation, 2280 Series, 75 ft Length, 48 in Width, 1 in Thickness, Polyethylene, R-Value: R8, -60 to 180 deg F, 300 sq-ft Coverage Area, Additional Information: 3.7 N-mm Tensile Strength
| Additional Information | : | 3.7 N-mm Tensile Strength |
| Coverage Area | : | 300 sq-ft |
| Length | : | 75 ft |
| Material | : | Polyethylene |
| R-Value | : | R8 |
| Series | : | 2280 Series |
| Temperature Rating | : | -60 to 180 deg F |
| Thickness | : | 1 in |
| Width | : | 48 in |
- First Reflective Bubble (non-fibrous) Insulation to achieve R-8 (with Air Space)
- Stops Virtually All Heat from RADIATING into or out of Duct Systems
- Sealed Air Spaces Provide Tremendous Condensation Control
- High Compression Resistance Maintains Thermal Value
- Clean, Safe, and Easy Installation Results in Lower Labor Costs
- Simple to Cut and Configure around Obstructions
- Will Not Harbor Mold, Mildew, or Other Fungi
- Faster Reactions Time for Radiant Floor Heating
- Will Not Rot, Degrade, Compress or Break Down Thermal Value over Time
- Seals Duct System from Attic Dust and Fibrous Glass Particles
- Allows Inspectors to Easily Identify Product and Specs
