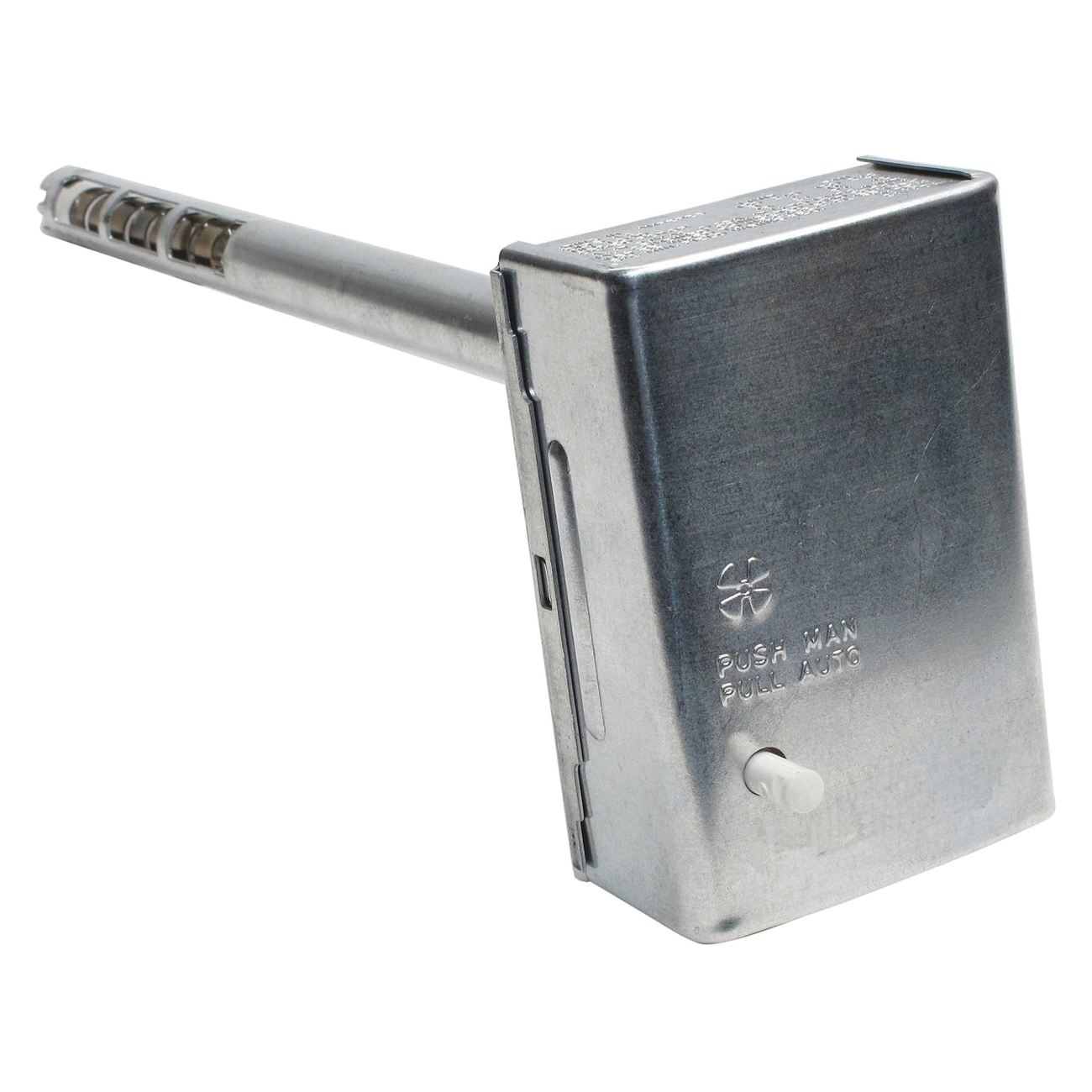

resideo L4064B2210/U HW L4064B2210

resideo L4064B2210/U Fan and Limit Controller, SPDT Switch, Switching Action: Fan: Make On Rise, Limit: Break On Rise

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: resideo
  • Part Number: HW L4064B2210
  • MPN: L4064B2210/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The fan and limit controller from Resideo controls high limit and fan motor in all types of forced air heating systems. The bimetal sensing element turns the fan on and off according to plenum temperature. It has mounting adapters for replacing devices, adapters for wiring convenience, and a strain relief bushing for preventing damage due to field abuse.

resideo Fan and Limit Controller, SPDT Switch, Fan: Make On Rise, Limit: Break On Rise Switching Action, Contact Configuration: NO-NC, 65 to 250 deg F, Male Flag Connection, 2 A at 25 VAC, 0.25 A at 0.25 to 12 VDC Pilot Duty, 11-1/2 in Insertion Length, Bracket, Surface Mounting, 4-9/32 in H x 3 in W x 1-19/32 in D, Steel, Finish: Zinc-Plated, For Use With: Forced Warm Air Heating Systems

Connection Type      :      Male Flag
Contact Configuration      :      NO-NC
Dimensions      :      4-9/32 in H x 3 in W x 1-19/32 in D
Finish      :      Zinc-Plated
Insertion Length      :      11-1/2 in
Material      :      Steel
Mounting Type      :      Bracket, Surface
Pilot Duty Rating      :      2 A at 25 VAC, 0.25 A at 0.25 to 12 VDC
Suitable For Use With      :      Forced Warm Air Heating Systems
Switch Type      :      SPDT
Switching Action      :      Fan: Make On Rise, Limit: Break On Rise
Temperature Rating      :      65 to 250 deg F
  • Three wiring terminal options available for easy installation
  • Push-in receptacles for stripped wire
  • Female receptacles for 1/4 inch male flag connectors
  • Auxiliary screw terminals
  • Field adjustable fan and high limit settings
  • L4064B,W, and R models have a manual fan switch that overrides the fan control to keep the fan running continuously
  • TRADELINE models with mounting adapters for easy installation and strain relief bushings to protect wiring from field abuse
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/resideo_L4064B2236_U_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/resideo_L4064B2236_U_Instruction_Installation_Manual.pdf
