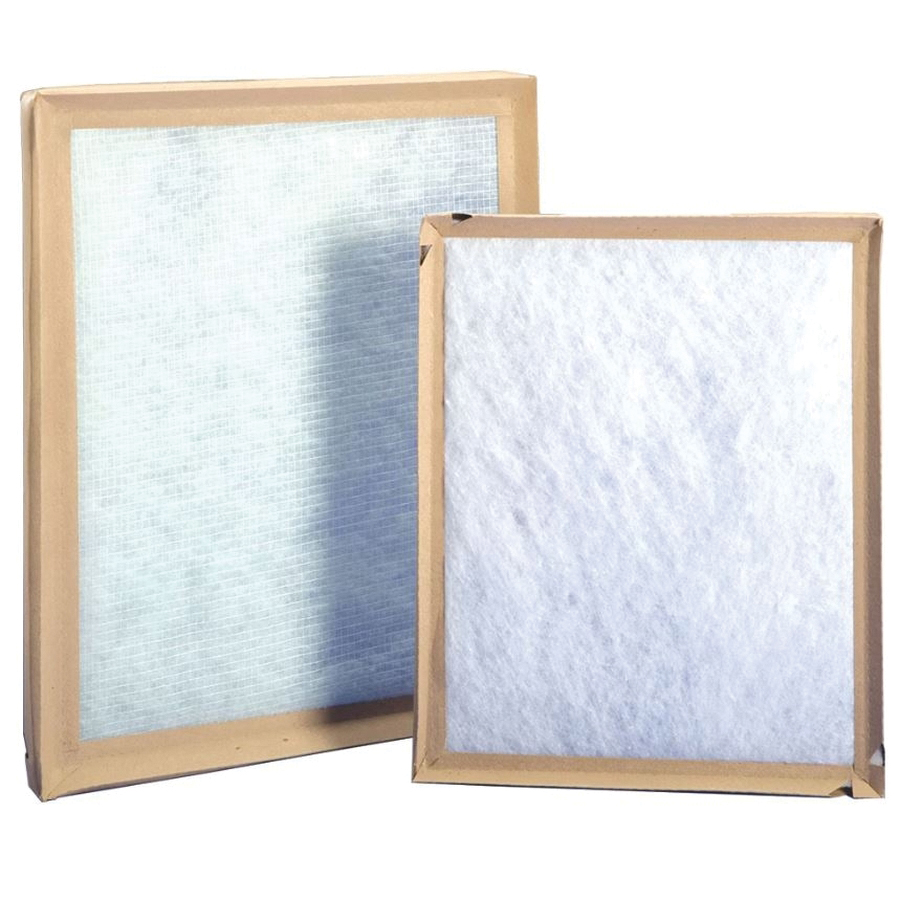

The P312 disposable panel filter with synthetic media is ideally suited for use in residential, commercial, and light industrial HVAC applications, including those where high quantities of dust and lint are present in the air. The filter media is made from polyester fibers bonded together in an interlocking pattern of tiny lint and dust traps. This configuration maximizes dust loading, while minimizing resistance to air flow. The filter uses unique monobond pinch frame technology, which features a one-piece frame sealed to the media under pressure and heat. This ensures a continuous bond of media to the board around the periphery of the frame, eliminating weak corners and air bypass. The integrity of the seal is maintained by using a high tensile strength polyethylene binder, which enables the filter to withstand varying humidity and temperature levels. The frame of the P312 is produced using post-consumer materials.
Purolator® Air Filter, Model: P312, Disposable Panel Filter, Synthetic Media, Monobond Pinch Frame, 18 in Width, 25 in Height, 2 in Depth, 5 MERV, 85 to 90 % Filter Efficiency, 300 fpm Velocity, 0.07 in-WG Initial Resistance, 1 in-WG Final Resistance, Average Arrestance: 75 to 85 %, 938 cfm Air Flow Capacity, 18 x 25 x 1-5/8 in Actual, 200 deg F
| Actual Size | : | 18 x 25 x 1-5/8 in |
| Air Flow Capacity | : | 938 cfm |
| Average Arrestance | : | 75 to 85 % |
| Depth | : | 2 in |
| Filter Efficiency | : | 85 to 90 % |
| Filter Type | : | Disposable Panel |
| Final Resistance | : | 1 in-WG |
| Frame Material | : | Monobond Pinch |
| Height | : | 25 in |
| Initial Resistance | : | 0.07 in-WG |
| MERV | : | 5 |
| Media Material | : | Synthetic |
| Model | : | P312 |
| Rated Velocity | : | 300 fpm |
| Temperature Rating | : | 200 deg F |
| Width | : | 18 in |
Specification Sheet
