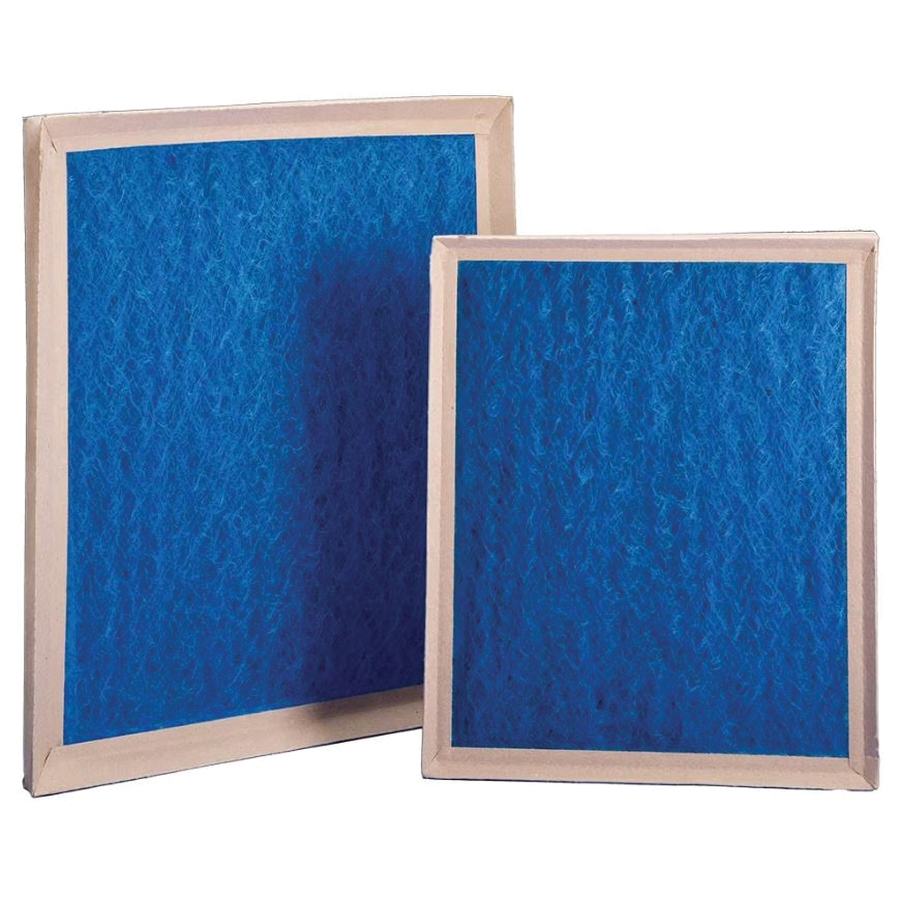

The Purolator® F312 is a heavy-duty disposable panel filter engineered for use in industrial and commercial applications, including environments where high quantities of dust and lint are present in the air. The unique Monobond pinch frame concept utilizes a one-piece frame sealed to the media under heat and pressure. This construction feature produces a continuous bond of media to the board around the periphery of the frame, eliminating weak corners and air bypass. The use of a high tensile strength polyethylene binder increases the integrity of the seal and allows the filter to withstand varying temperatures and humidity levels.F312 panel filters are manufactured with superior-grade fiberglass media to guarantee full-depth loading and high dust holding capacity. The computer-controlled manufacturing process ensures a uniform gradient density pattern in the media. To enhance filtration capability and prevent migration of finer particles, the filter media has a skin backing and is evenly coated with gelled adhesive. F312 frames are produced using post-consumer recycled materials.
Purolator® Air Filter, Model: F312, Disposable Panel Filter, Fiberglass Media, Monobond Pinch Frame, 20 in Width, 30 in Height, 2 in Depth, 4 MERV, 65 to 75 % Filter Efficiency, 492 fpm Velocity, 0 in-WG Initial Resistance, 1 in-WG Final Resistance, 150 deg F, Additional Information: Blue Color
| Additional Information | : | Blue Color |
| Depth | : | 2 in |
| Filter Efficiency | : | 65 to 75 % |
| Filter Type | : | Disposable Panel |
| Final Resistance | : | 1 in-WG |
| Frame Material | : | Monobond Pinch |
| Height | : | 30 in |
| Initial Resistance | : | 0 in-WG |
| MERV | : | 4 |
| Media Material | : | Fiberglass |
| Model | : | F312 |
| Rated Velocity | : | 492 fpm |
| Temperature Rating | : | 150 deg F |
| Width | : | 20 in |
- Nominal depth (in.): 1, 2
- Maximum operating temperature: 150 degF (66 degC)
- Materials of construction: Heavy duty kraft frame, superior grade fiberglass media, polyethylene binder
- Pinch frame design improves rigidity and prevents leakages
- Superior-grade fiberglass media guarantees full-depth loading and high dust holding capacity
- Improved aerodynamics reduces restriction to air flow
- Use of a high tensile strength polyethylene binder increases the integrity of the seal, allowing the filter to withstand varying temperatures and humidity levels
