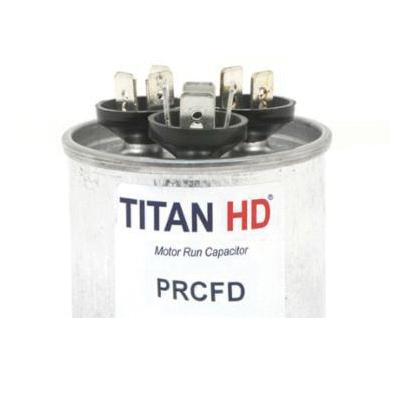

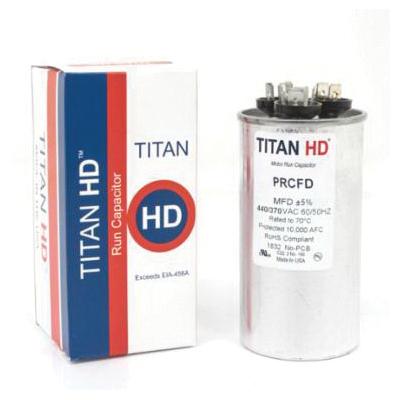

Packard PRCFD403A PRCFD403A
Packard PRCFD Series PRCFD403A Motor Dual Run Capacitor, MFD Rating: 40+3 uF, 440 VAC, Round, 2 in Dia, 2.88 in H
- Manufacturer: DiversiTech Corporation
- Brand Name: Packard
- Part Number: PRCFD403A
- MPN: PRCFD403A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Check Branch Availability
-
Price:
Packard Motor Dual Run Capacitor, Series: PRCFD Series, 40+3 uF MFD Rating, 440 VAC, 50/60 Hz, Round Shape, Male Quick-Connect Terminal, 60000 hr Average Life, -40 to 70 deg C, Aluminum Case, Steel Cover, 2 in Dia, 2.88 in Height, Additional Information: 1/4 in Terminal Size
| Additional Information | : | 1/4 in Terminal Size |
| Average Life | : | 60000 hr |
| Case Material | : | Aluminum |
| Cover Material | : | Steel |
| Diameter | : | 2 in |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 2.88 in |
| MFD Rating | : | 40+3 uF |
| Series | : | PRCFD Series |
| Shape | : | Round |
| Temperature Rating | : | -40 to 70 deg C |
| Terminal Type | : | Male Quick-Connect |
| Voltage Rating | : | 440 VAC |
- Eye catching packaging for retail environment
- Contains metalized polypropylene film technology for self-restoration in the event of a breakdown
- Sophisticated UL approved pressure sensitive interrupter to remove the capacitor from circuit at end of life
- Patented, environmentally friendly oil prevents corrosion and aids in optimum heat transfer
- Aluminum cans filled with soybean based oil
- Made in USA
