Packard POCF12.5A POCF12.5A
  1. pin-int

Packard POCF12.5A POCF12.5A

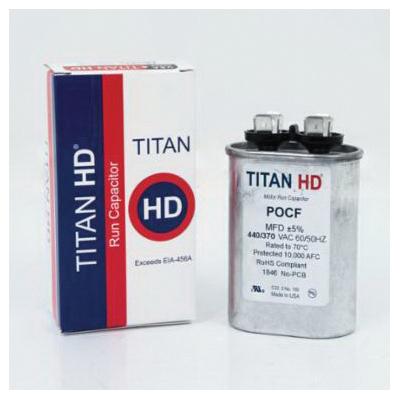

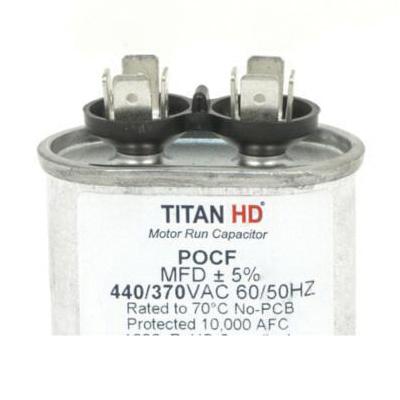

Packard POCF Series POCF12.5A Motor Single Run Capacitor, MFD Rating: 12.5 uF, 440 VAC, Oval, 2.19 in H, 2 in W

  • Manufacturer: DiversiTech Corporation
  • Brand Name: Packard
  • Part Number: POCF12.5A
  • MPN: POCF12.5A
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch Availability

Packard Motor Single Run Capacitor, Series: POCF Series, 12.5 uF MFD Rating, 440 VAC, 50/60 Hz, Oval Shape, 60000 hr Average Life, +/-10 % Standard Tolerance, -40 to 70 deg C, Aluminum Case, 2.19 in Height, 2 in Width, 1-1/4 in D

Average Life      :      60000 hr
Case Material      :      Aluminum
Depth      :      1-1/4 in
Frequency Rating      :      50/60 Hz
Height      :      2.19 in
MFD Rating      :      12.5 uF
Series      :      POCF Series
Shape      :      Oval
Standard Tolerance      :      +/-10 %
Temperature Rating      :      -40 to 70 deg C
Voltage Rating      :      440 VAC
Width      :      2 in
  • Manufactured using state of the art, metalized polypropylene film technology for self-restoration in the event of a breakdown
  • Eye catching packaging for retail environment
  • Contains metalized polypropylene film technology for self-restoration in the event of a breakdown
  • Sophisticated UL approved pressure sensitive interrupter to remove the capacitor from circuit at end of life
  • Patented, environmentally friendly oil prevents corrosion and aids in optimum heat transfer
  • Aluminum cans filled with soybean based oil
  • Made in U.S.A
