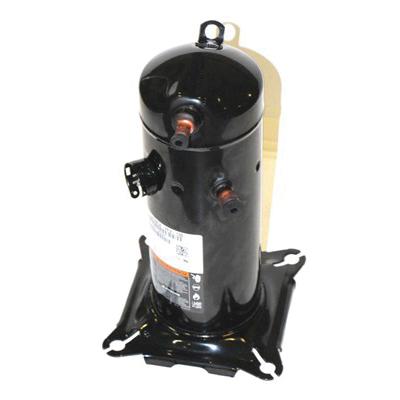

NORDYNE Scroll Compressor, 31300 Btu BTU, 3 ton, 04-03-2021 in Suction Line, 02-01-2021 in Discharge Line, 456 lb/hr, 208 - 230 VAC, 13.1 A, 2990 W, 3 hp, R-22 Refrigerant, Start Capacitor: 50/372 uF, Domestic
| Amperage Rating | : | 13.1 A |
| BTU Rating | : | 31300 Btu |
| Discharge Line Size | : | 02-01-2021 in |
| Domestic/Import | : | Domestic |
| Flow Rate | : | 456 lb/hr |
| Power Rating | : | 2990 W, 3 hp |
| Refrigerant Type | : | R-22 |
| Start Capacitor | : | 50/372 uF |
| Suction Line Size | : | 04-03-2021 in |
| Tonnage | : | 3 ton |
| Voltage Rating | : | 208 - 230 VAC |
- Scroll Compressor
- 87 A high locked rotor
- 30.9 A minimum circuit ampacity
- 45 deg F evaporating temperature
- 65 deg F returns gas temperature
- 17.1 A-rated loads
- Solder suction line fitting
- 7-1/2 x 7-1/2 x 16.08 in mounting
- 25 oz oils charge initial
- 19 oz oils charge recharge
- ZR32K5E-PFV-800 compressor
