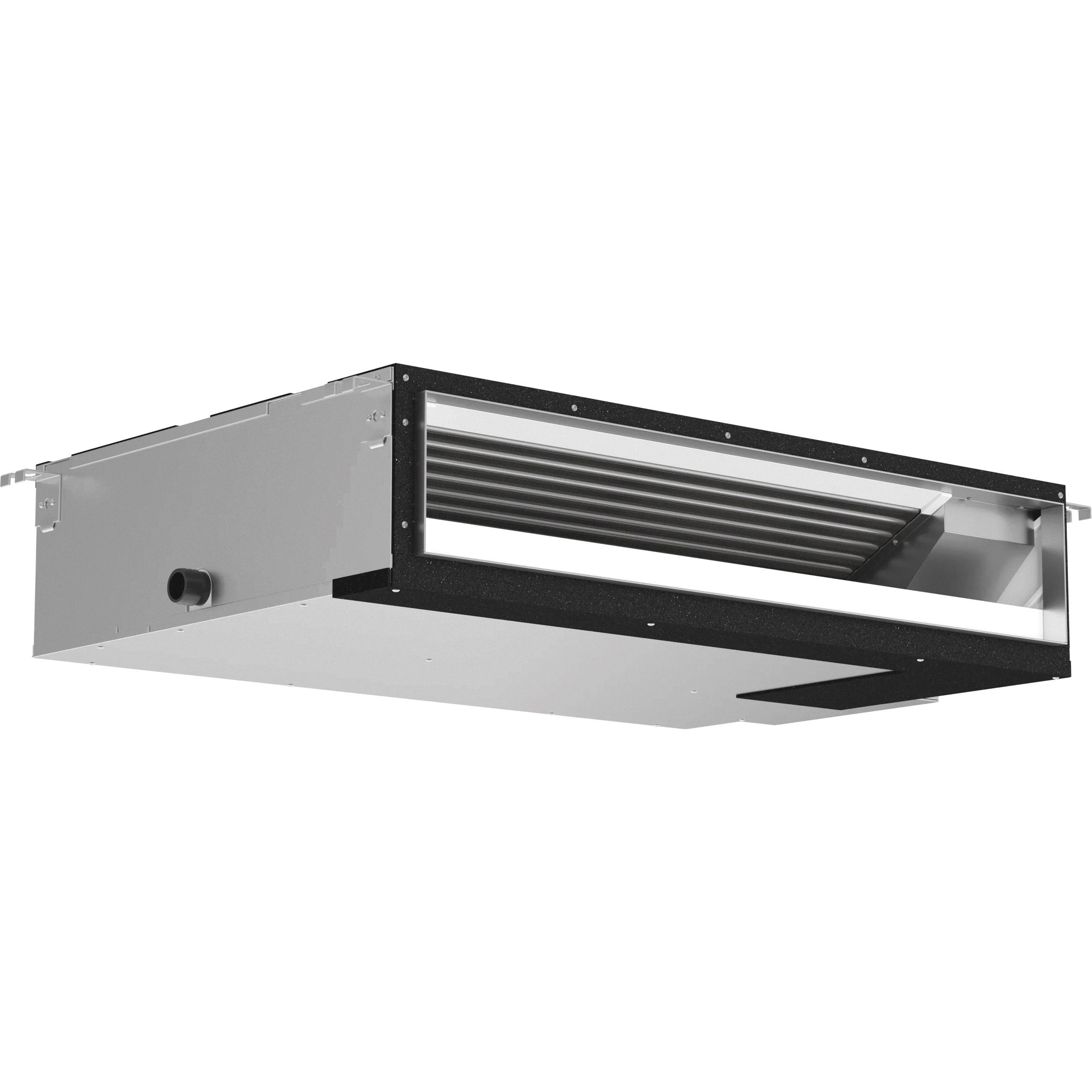

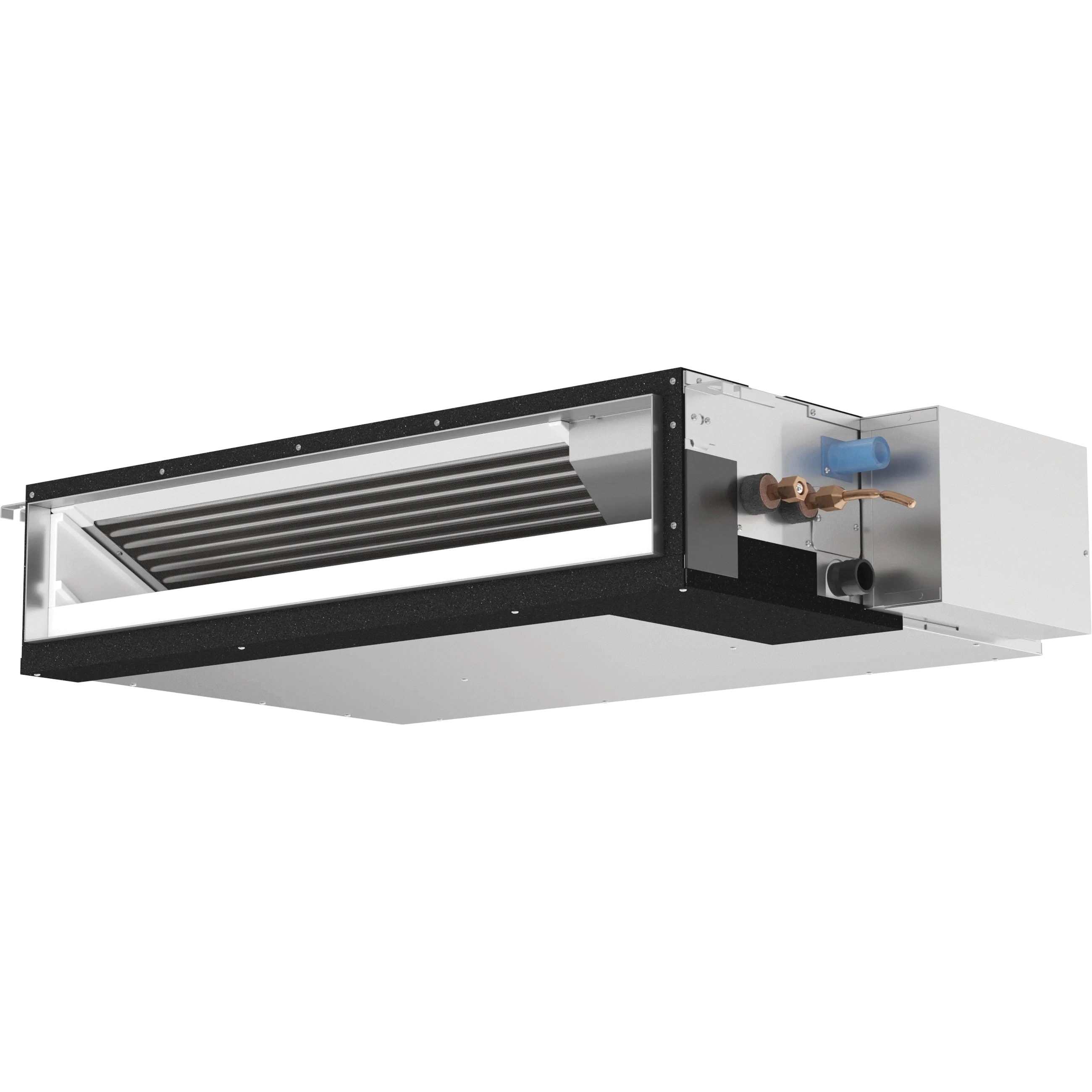

Mitsubishi Electric SEZ-AD15NL SEZ-AD15NL
Mitsubishi Electric P Series SEZ SEZ-AD15NL Ducted Light Commercial Indoor Unit, 208-230 V, 15 A, 1 ph
- Manufacturer: Mitsubishi Electric Corporation
- Brand Name: Mitsubishi Electric
- Part Number: SEZ-AD15NL
- MPN: SEZ-AD15NL
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Available as a single-zone or multi-zone unit, these low static units are designed to cool and heat one or two rooms through a short duct run. The SEZ series may be mounted in the attic, hidden in the ceiling or beneath the floor, or concealed behind a bulkhead.
Mitsubishi Electric Ducted Light Commercial Indoor Unit, P Series, Model: SEZ, 208-230 V, 15 A, 96 W, 60 Hz, 1-Phase, 14100 Btu/hr Cooling, 18000 Btu/hr Heating, 529 cfm, Pipe Connection, R-454B Refrigerant, 37 dB Sound Level, 39 in Overall Length, 27-9/16 in Overall Width, 7-7/8 in Overall Height
| Amperage Rating | : | 15 A |
| BTU Rating | : | 14100 Btu/hr Cooling, 18000 Btu/hr Heating |
| CFM Rating | : | 529 cfm |
| Connection Type | : | Pipe |
| Frequency Rating | : | 60 Hz |
| Model | : | SEZ |
| Overall Height | : | 7-7/8 in |
| Overall Length | : | 39 in |
| Overall Width | : | 27-9/16 in |
| Phase | : | 1 ph |
| Power Rating | : | 96 W |
| Refrigerant Type | : | R-454B |
| Series | : | P Series |
| Sound Level | : | 37 dB |
| Voltage Rating | : | 208-230 V |
