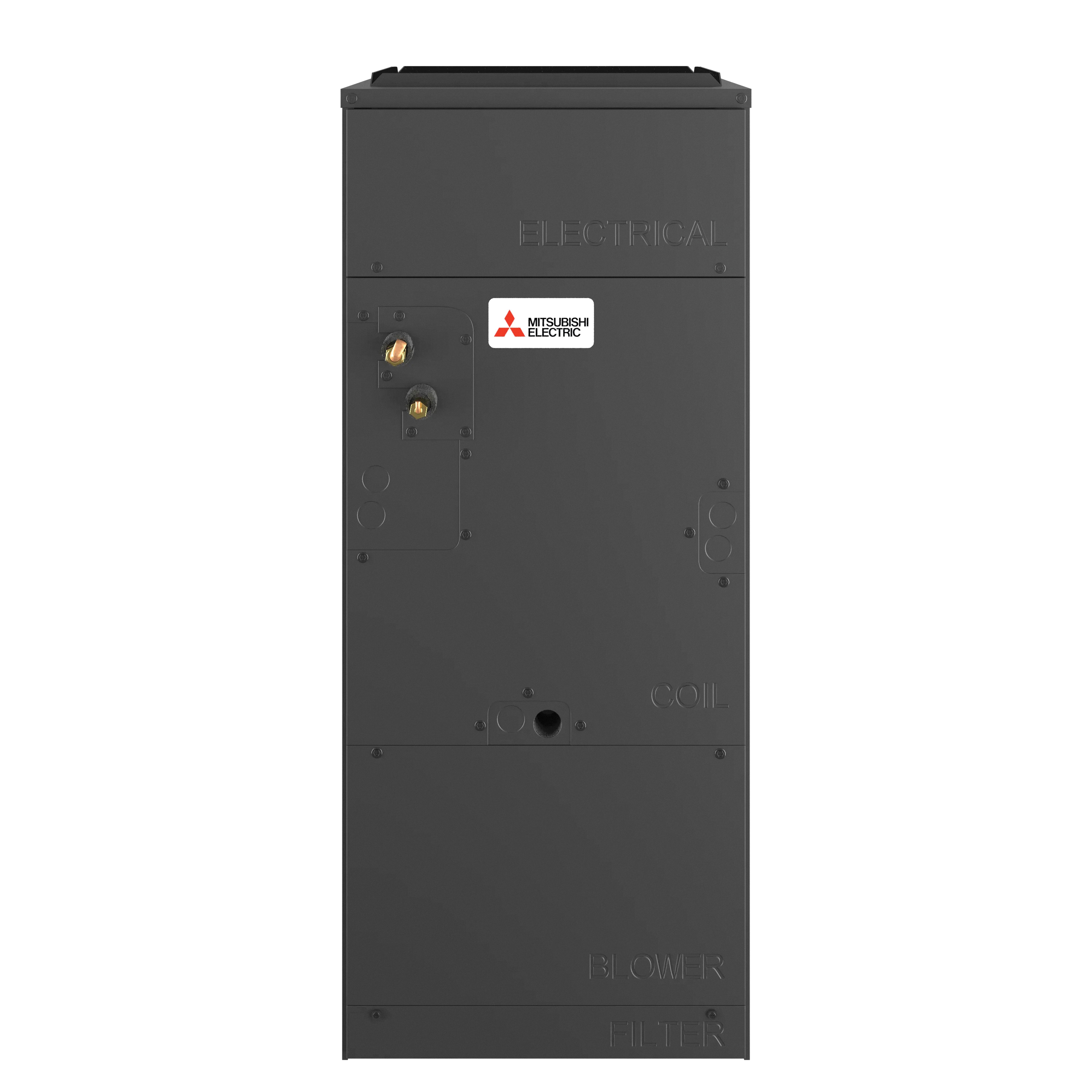

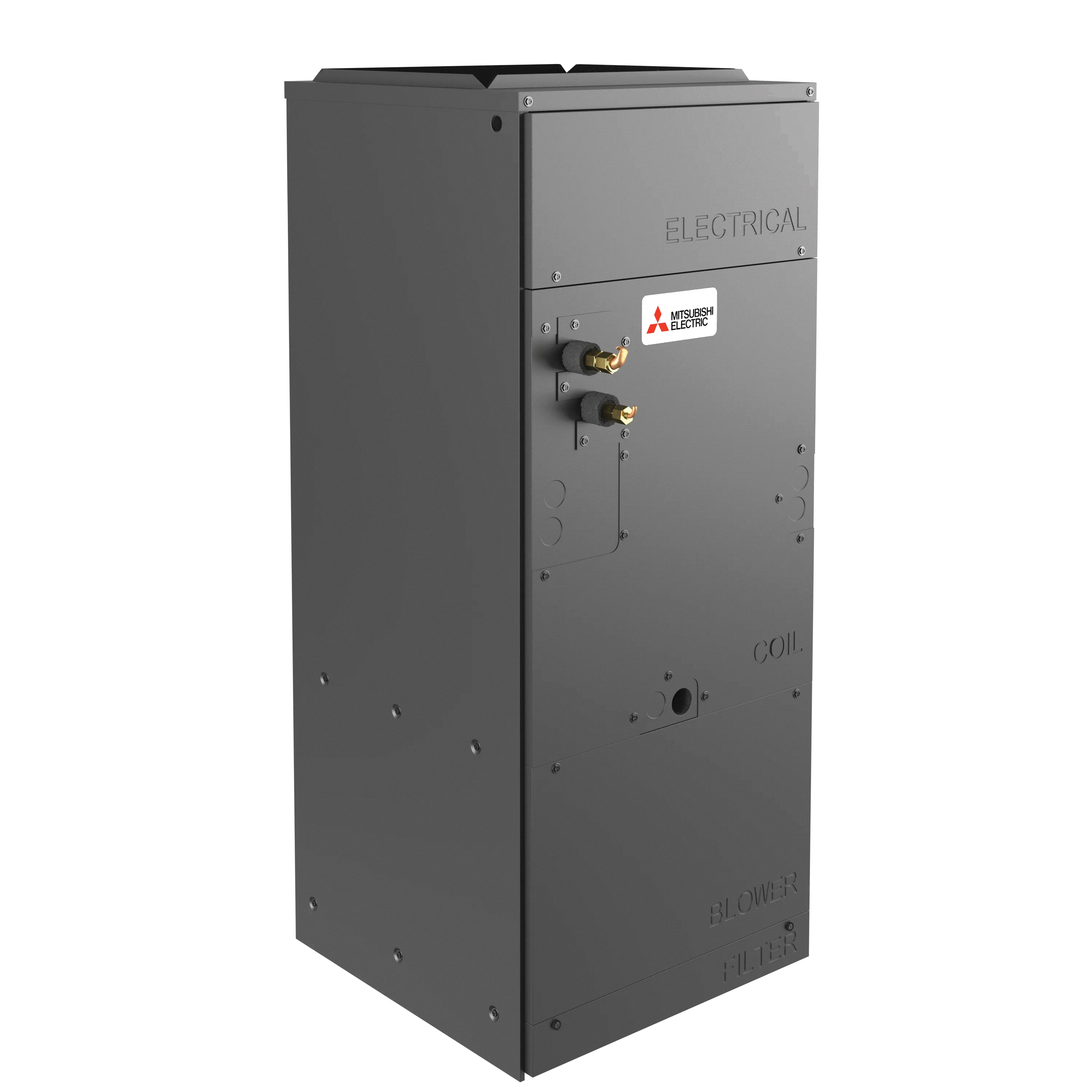

Mitsubishi Electric PVA-AA42NL PVA-AA42NL
Mitsubishi Electric P Series PVA-AA42NL Air Handler, 42000 Btu/hr BTU, 1485 cfm, 208/230 V, 5.63 A, 3970 W, 60 Hz
- Manufacturer: Mitsubishi Electric Corporation
- Brand Name: Mitsubishi Electric
- Part Number: PVA-AA42NL
- MPN: PVA-AA42NL
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The large capacity PVA Multi-position Air Handler is perfect for large homes, multi-family buildings and light commercial applications. Boasting a best-in-class construction with an advanced corrosion-resistant black ZAM finish and built-in humidifier, this whisper-quiet air handler is ideal for new builds, replacements and retrofits. The versatile PVA Multi-position Air Handler can be integrated with an existing back-up heating system and for homes wanting to convert to a more eco-friendly all-electric heating and cooling solution.
Mitsubishi Electric Air Handler, P Series, 44000 Btu/hr Cooling Capacity, 49700 Btu/hr Heating, 42000 Btu/hr, 208/230 V, 5.63 A, 3970 W Wattage, 60 Hz, 1-Phase, Twin Rotary Compressor, 1485 cfm, Downflow, 11.1 EER Rating, 19.1 SEER, R-454B Refrigerant, 52 dB Sound Level, 35 A Fuse Rating, 3/8 in Liquid Line, 5/8 in Suction Line, 20 x 24 x 1 in Filter, ECM Motor, Wall Mounting, Steel, Finish: Galvanized, 59-1/2 in H x 25 in W x 21-5/8 in D
| Amperage Rating | : | 5.63 A |
| BTU Rating | : | 42000 Btu/hr |
| CFM Rating | : | 1485 cfm |
| Compressor Type | : | Twin Rotary |
| Configuration | : | Downflow |
| Cooling Capacity | : | 44000 Btu/hr |
| Dimensions | : | 59-1/2 in H x 25 in W x 21-5/8 in D |
| EER Rating | : | 11.1 |
| Filter Size | : | 20 x 24 x 1 in |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 35 A |
| Heating Capacity | : | 49700 Btu/hr |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Motor Type | : | ECM |
| Mounting Type | : | Wall |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 19.1 |
| Series | : | P Series |
| Sound Level | : | 52 dB |
| Suction Line Size | : | 5/8 in |
| Voltage Rating | : | 208/230 V |
| Wattage | : | 3970 W |
- Selectable static pressure
- Electrically Commutated Motor
- Black ZAM material
- Blow-through design
- Electric Heat Kits
- Interlocking Function
Instruction/Installation Manual
