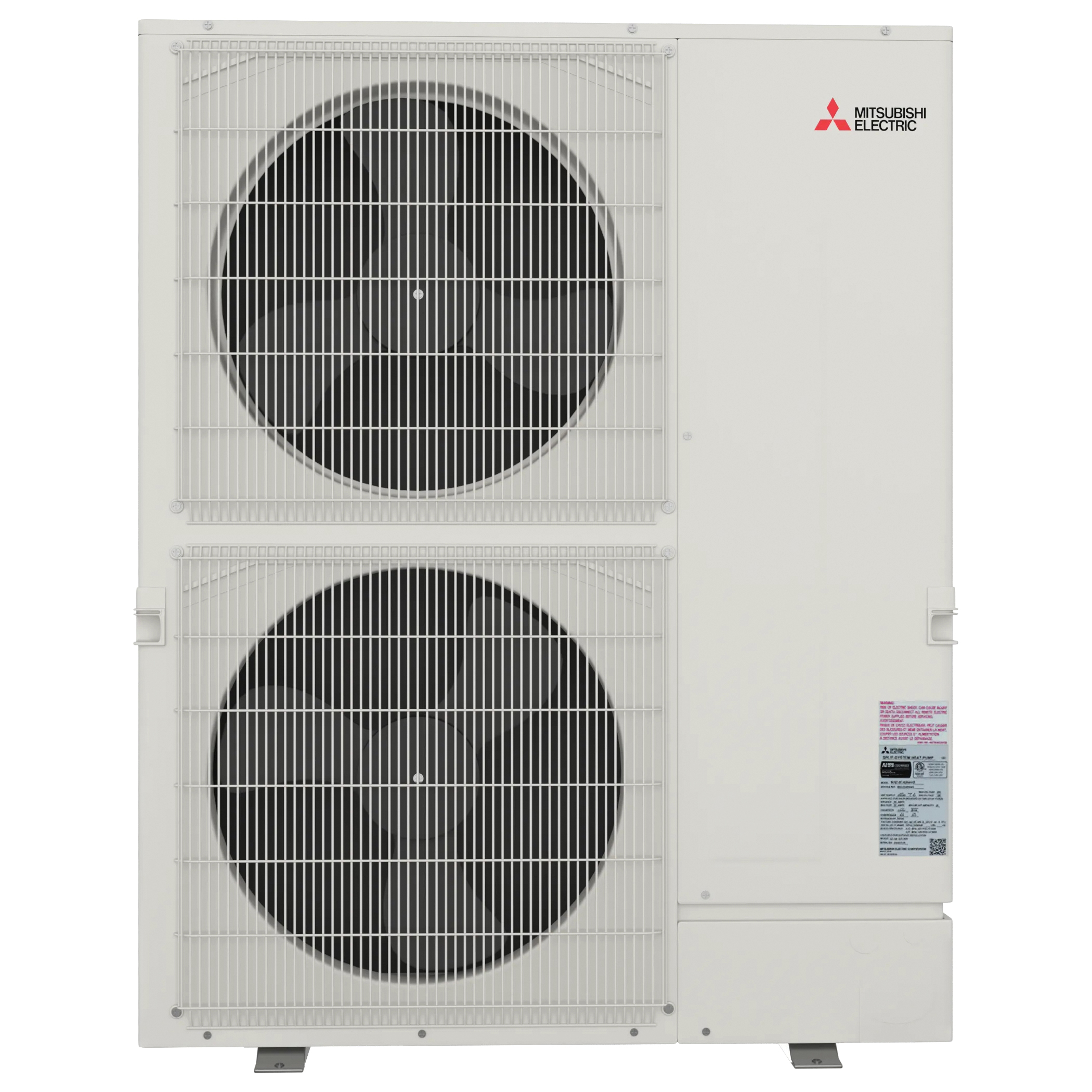

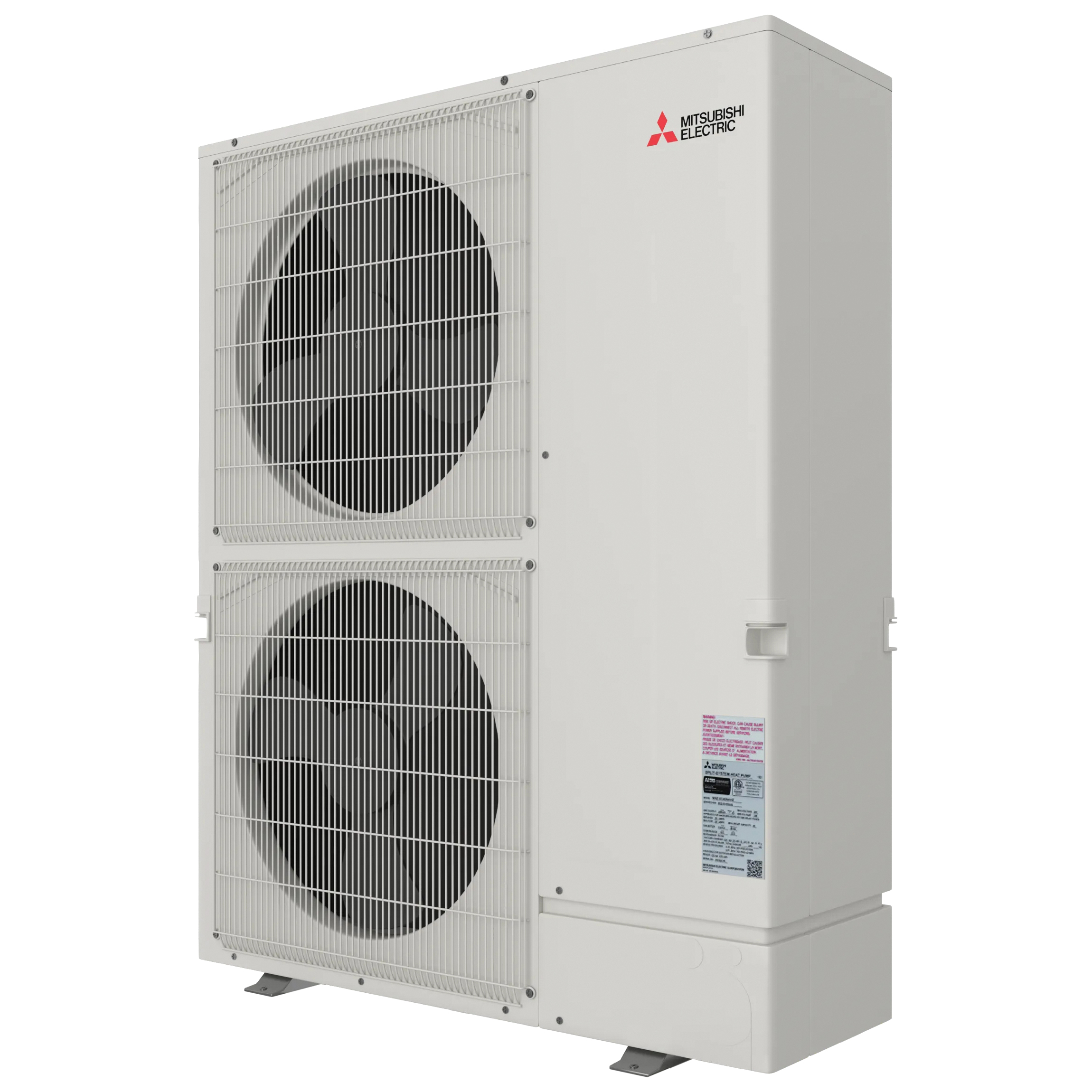

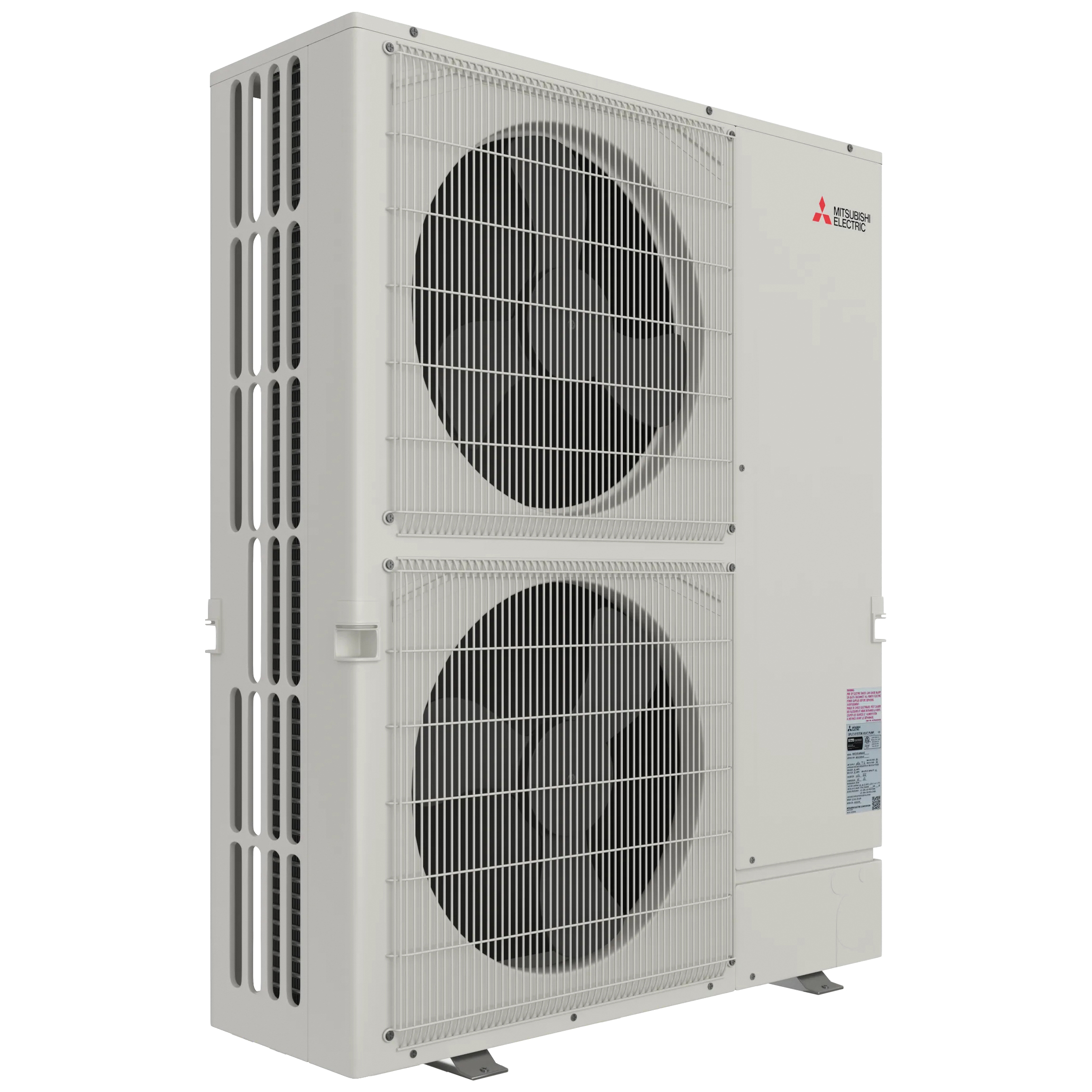

Mitsubishi Electric PUZ-AK48NL PUZ-AK48NL
Mitsubishi Electric P Series PUZ PUZ-AK48NL Single-Zone Universal Heat Pump, 208/230 V, 38 A, 48000 Btu/hr Cooling
- Manufacturer: Mitsubishi Electric Corporation
- Brand Name: Mitsubishi Electric
- Part Number: PUZ-AK48NL
- MPN: PUZ-AK48NL
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The PUZ Heat Pump is a single-phase heat pump system ideal for light commercial or large residential applications. Featuring best-in-class efficiency ratings and ENERGY STAR® qualification, PUZ systems are designed to deliver operational cost savings and long-time performance to a homeowner or building owner. It uses the CITY MULTI® Controls Network (CMCN) to cool or heat up to 12 individual zones with a choice of indoor unit styles. Seacoast protection coating is optional.
Mitsubishi Electric Single-Zone Universal Heat Pump, P Series, Model: PUZ, 208/230 V, 38 A, 60 Hz, 1-Phase, 3 Fan Speeds, 48000 Btu/hr Cooling, 4020 cfm Cooling CFM Rating, 10.4 EER Rating, 19.4 SEER, Flared Connection, 3/8 in Liquid Line, 5/8 in Suction Line, 67 A Fuse Rating, 60 dB Cooling Sound Level, 115 deg F Cooling Operating Temperature, 13-31/32 in Overall Length, 41-11/32 in Overall Width, 52-43/64 in Overall Height
| Amperage Rating | : | 38 A |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 48000 Btu/hr |
| Cooling CFM Rating | : | 4020 cfm |
| Cooling Operating Temperature | : | 115 deg F |
| Cooling Sound Level | : | 60 dB |
| EER Rating | : | 10.4 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 67 A |
| Liquid Line Size | : | 3/8 in |
| Model | : | PUZ |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 52-43/64 in |
| Overall Length | : | 13-31/32 in |
| Overall Width | : | 41-11/32 in |
| Phase | : | 1 ph |
| SEER Rating | : | 19.4 |
| Series | : | P Series |
| Suction Line Size | : | 5/8 in |
| Voltage Rating | : | 208/230 V |
- One outdoor unit connects to one indoor unit to control the comfort in a single space
