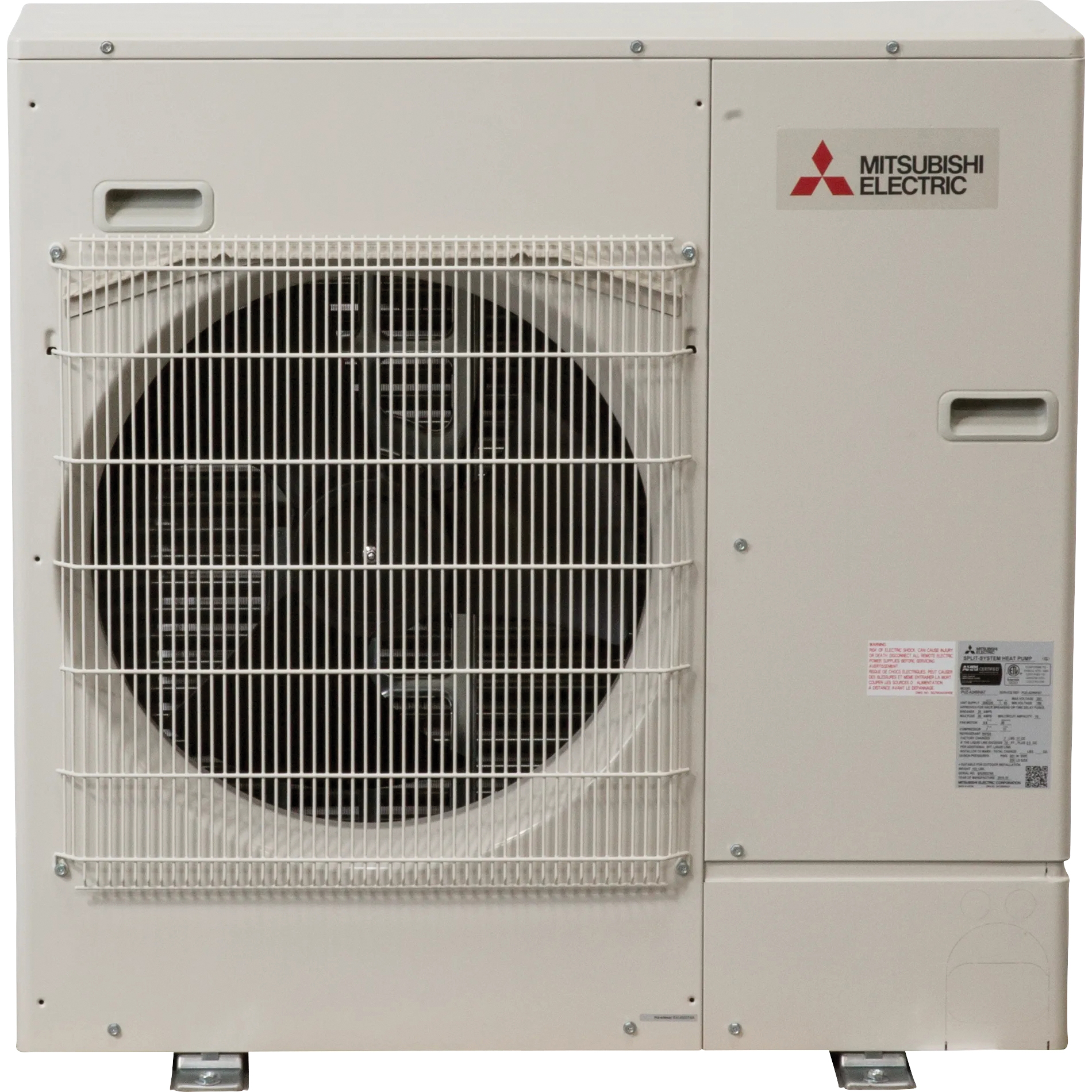

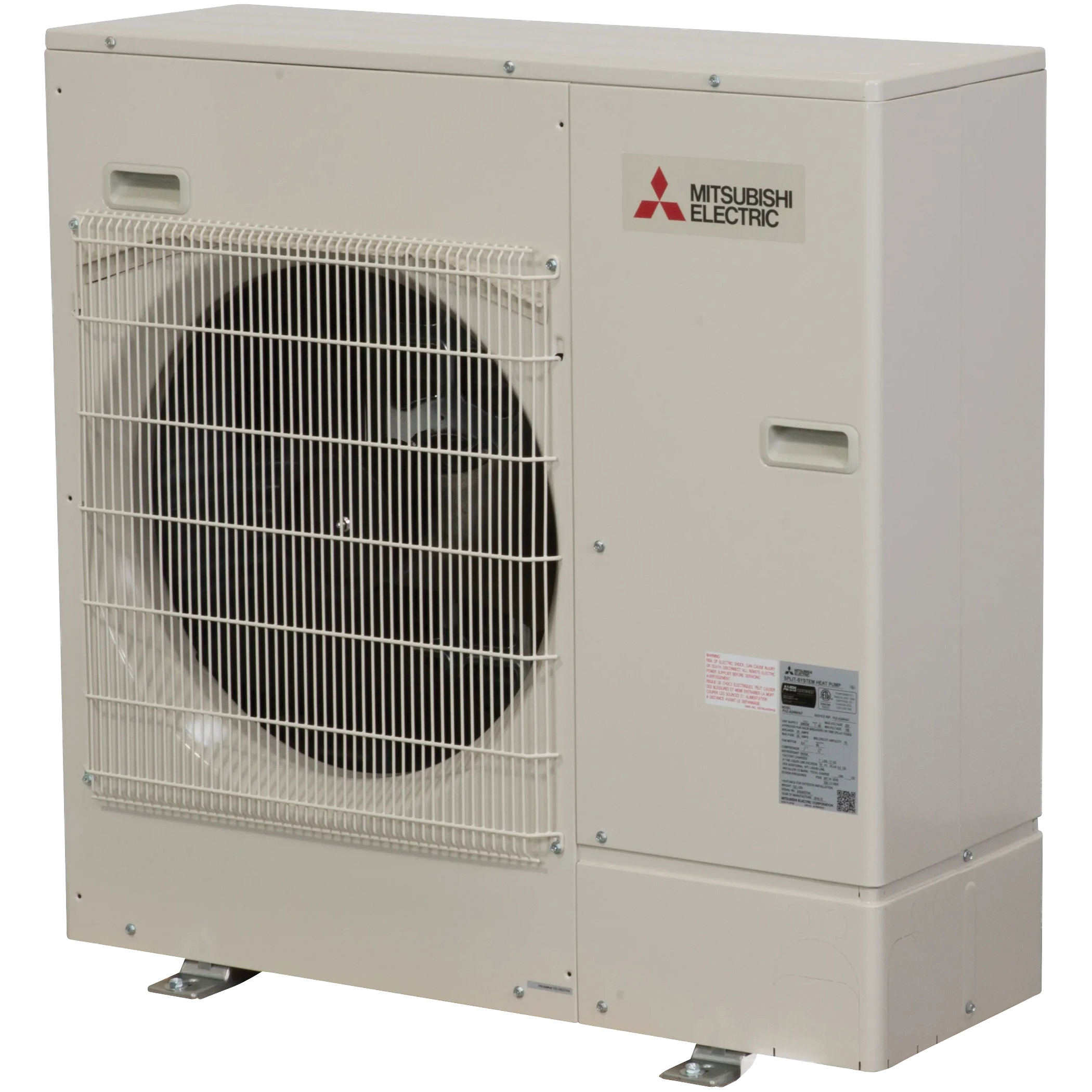

Mitsubishi Electric PUY-AK60NL-U1 PUY-AK60NL-U1

Mitsubishi Electric P Series PUY PUY-AK60NL-U1 Single-Zone Universal Air Conditioner, 208/230 V, 38 A, 1 ph-Phase

  • Manufacturer: Mitsubishi Electric Corporation
  • Brand Name: Mitsubishi Electric
  • Part Number: PUY-AK60NL-U1
  • MPN: PUY-AK60NL-U1
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The PUY Universal Air Conditioner is a single-zone outdoor unit compatible with five different indoor unit types in a 1-to-1 configuration. This high-efficiency air conditioner is compatible with the PKA Wall-mounted Indoor Unit, PLA Four-way Ceiling Cassettes, PVA Multi-position Air Handlers, PCA Ceiling-suspended Indoor Unit, and PEAD Mid Static Horizontal-ducted Indoor Units. The PUY is ideal for long-line installations and low ambient cooling applications (down to -40degF outdoor air temperature). A seacoast protective coating is optional.

Mitsubishi Electric Single-Zone Universal Air Conditioner, P Series, Model: PUY, 208/230 V, 38 A, 60 Hz, 1-Phase, 3 Fan Speeds, 60000 Btu/hr Cooling, 4020 cfm Cooling CFM Rating, 9.8 EER Rating, 18.3 SEER, Flared Connection, 3/8 in Liquid Line, 3/4 in Suction Line, 67 A Fuse Rating, 60 dB Cooling Sound Level, 115 deg F Cooling Operating Temperature, 14 in Overall Length, 41-11/32 in Overall Width, 52-43/64 in Overall Height

Amperage Rating      :      38 A
Connection Type      :      Flared
Cooling BTU Rating      :      60000 Btu/hr
Cooling CFM Rating      :      4020 cfm
Cooling Operating Temperature      :      115 deg F
Cooling Sound Level      :      60 dB
EER Rating      :      9.8
Frequency Rating      :      60 Hz
Fuse Rating      :      67 A
Liquid Line Size      :      3/8 in
Model      :      PUY
Number of Fan Speeds      :      3
Overall Height      :      52-43/64 in
Overall Length      :      14 in
Overall Width      :      41-11/32 in
Phase      :      1 ph
SEER Rating      :      18.3
Series      :      P Series
Suction Line Size      :      3/4 in
Voltage Rating      :      208/230 V
  • One outdoor unit connects to one indoor unit to control the comfort in a single space
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Mitsubishi_Electric_PLA_AE48NL_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Mitsubishi_Electric_PUY_AK48NL_U1_Instruction_Installation_Manual.pdf
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/Mitsubishi_Electric_PUY_AK60NL_U1_Submittal.pdf
