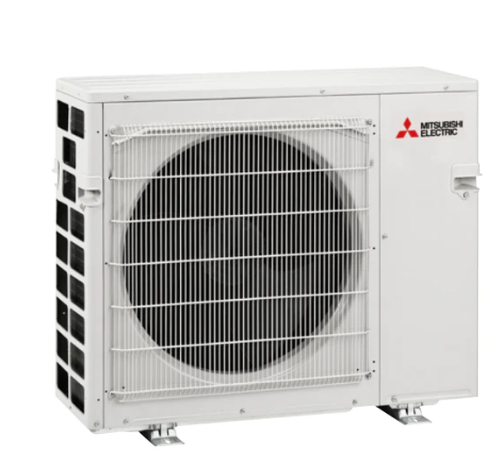

Mitsubishi Electric MXZ-4D30NL MXZ-4D30NL
Mitsubishi Electric MXZ-4D30NL Multi-Zone Heat Pump Outdoor Unit, 208/230 V, 1.74 A, 28600 Btu/hr Cooling, 1 ph
- Manufacturer: Mitsubishi Electric Corporation
- Brand Name: Mitsubishi Electric
- Part Number: MXZ-4D30NL
- MPN: MXZ-4D30NL
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Mitsubishi Electric Multi-Zone Heat Pump Outdoor Unit, 208/230 V, 1.74 A, 2200 W Cooling, 2149 W Heating, 60 Hz, 1 ph, 28600 Btu/hr Heating, 28600 Btu/hr Cooling, 2228 cfm Heating CFM Rating, 2119 cfm Cooling CFM Rating, 13 EER Rating, 21 SEER, 10 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, Inverter Drive, 56 dBA Heating Sound Level, 53 dBA Cooling Sound Level, Finish: Munsell 3Y 7.8/1.1, 6 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 37-13/32 in Overall Width, 31-11/32 in Overall Height, 4-Zone
| Additional Information | : | 4-Zone |
| Amperage Rating | : | 1.74 A |
| Compressor Type | : | Twin Rotary |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 28600 Btu/hr |
| Cooling CFM Rating | : | 2119 cfm |
| Cooling Operating Temperature | : | 14 to 115 deg F |
| Cooling Sound Level | : | 53 dBA |
| Drive Type | : | Inverter |
| EER Rating | : | 13 |
| Finish | : | Munsell 3Y 7.8/1.1 |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 10 |
| Heating BTU Rating | : | 28600 Btu/hr |
| Heating CFM Rating | : | 2228 cfm |
| Heating Operating Temperature | : | 6 to 75 deg F |
| Heating Sound Level | : | 56 dBA |
| Liquid Line Size | : | 1/4 in |
| Model | : | MXZ |
| Overall Height | : | 31-11/32 in |
| Overall Length | : | 13 in |
| Overall Width | : | 37-13/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 2200 W Cooling, 2149 W Heating |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 21 |
| Suction Line Size | : | 1/2 in, 3/8 in |
| Voltage Rating | : | 208/230 V |
- Compact, small chassis
- Compressor overcurrent detection
- Compressor thermal protection
- Fan motor overheating/voltage protection
- Freeze-prevention base pan heater equipped as standard
- High-pressure protection
- Prolonged heating over an extended duration
- Quiet outdoor unit operation as low as 52 dB(A)
- Rated for 2,000 hours spraying time per ASTM B117 Standard
- Variable speed INVERTER-driven compressor
- Blue Fin anti-corrosion treatment applied to the outdoor unit heat exchanger for increased coil protection and longer life
