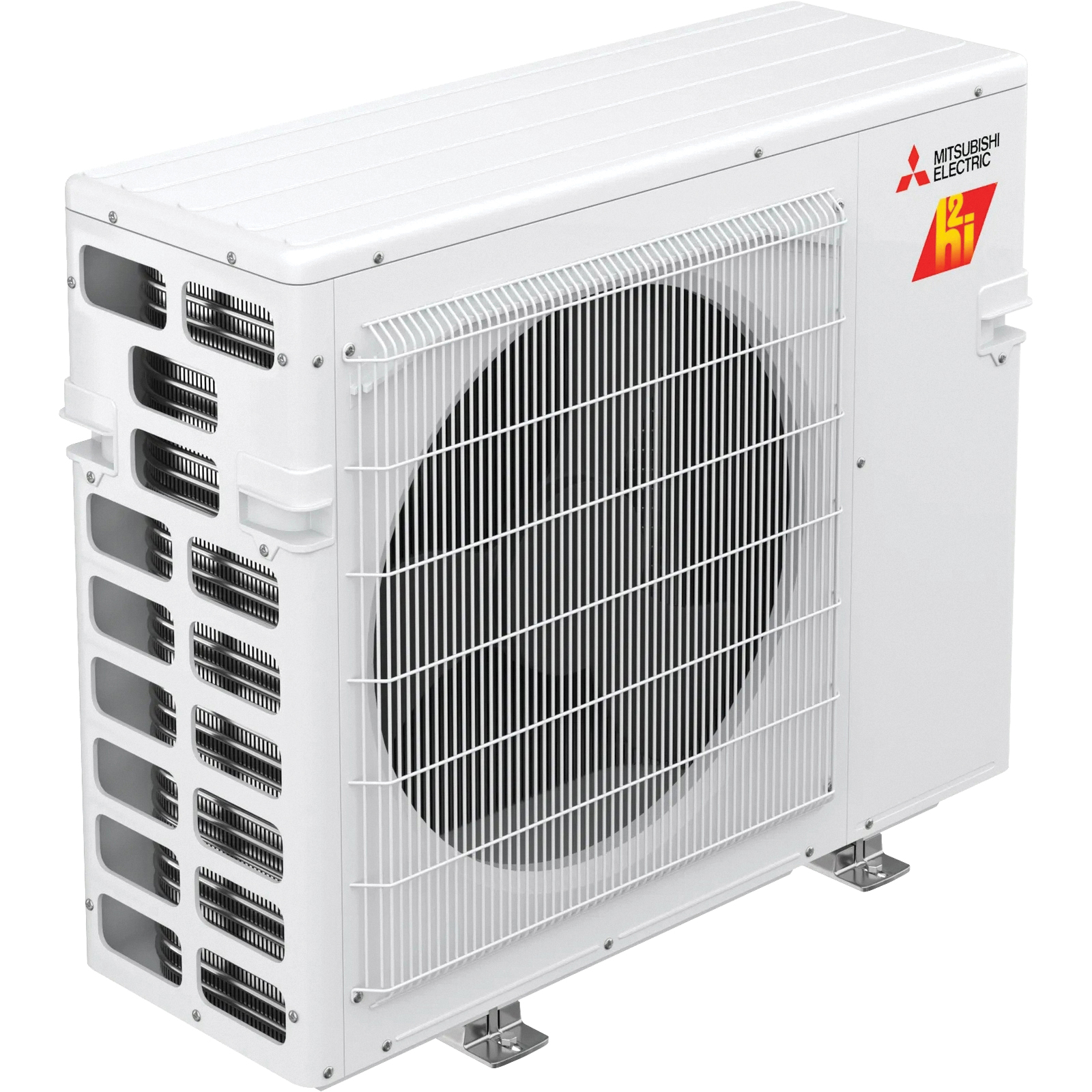

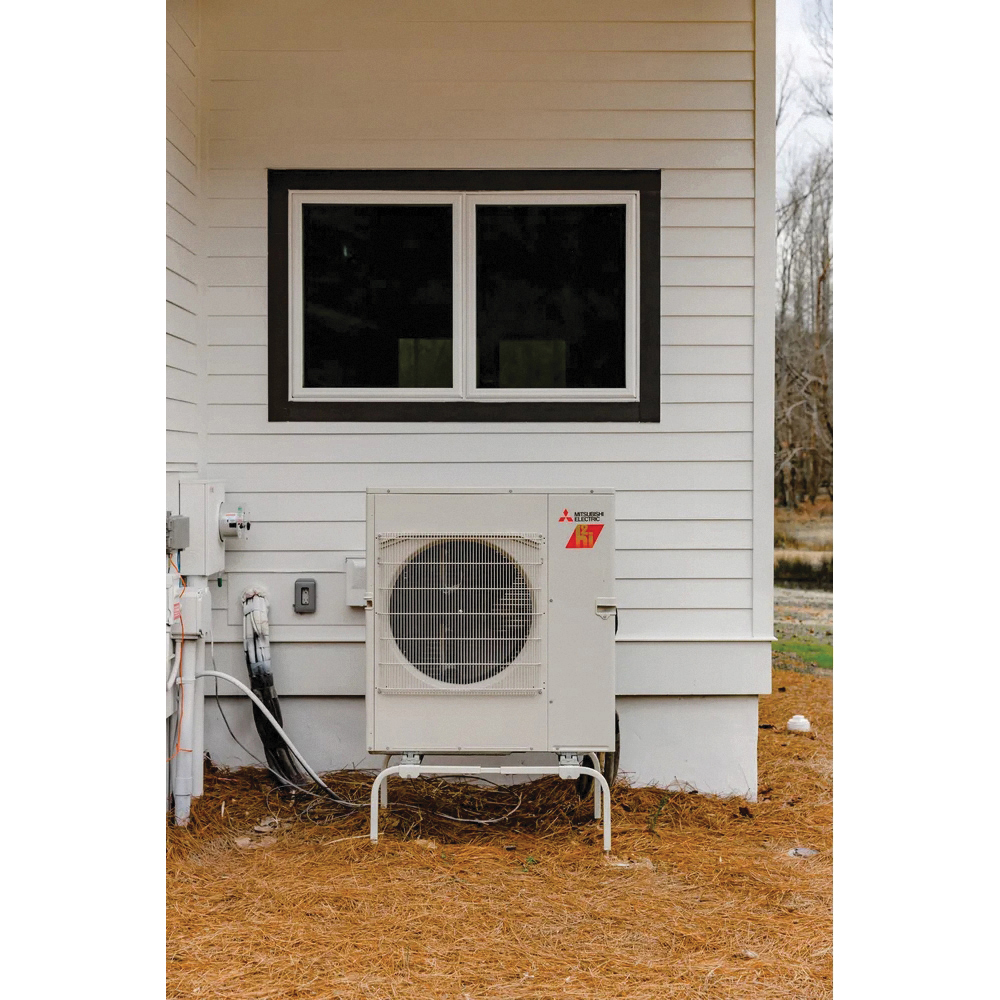

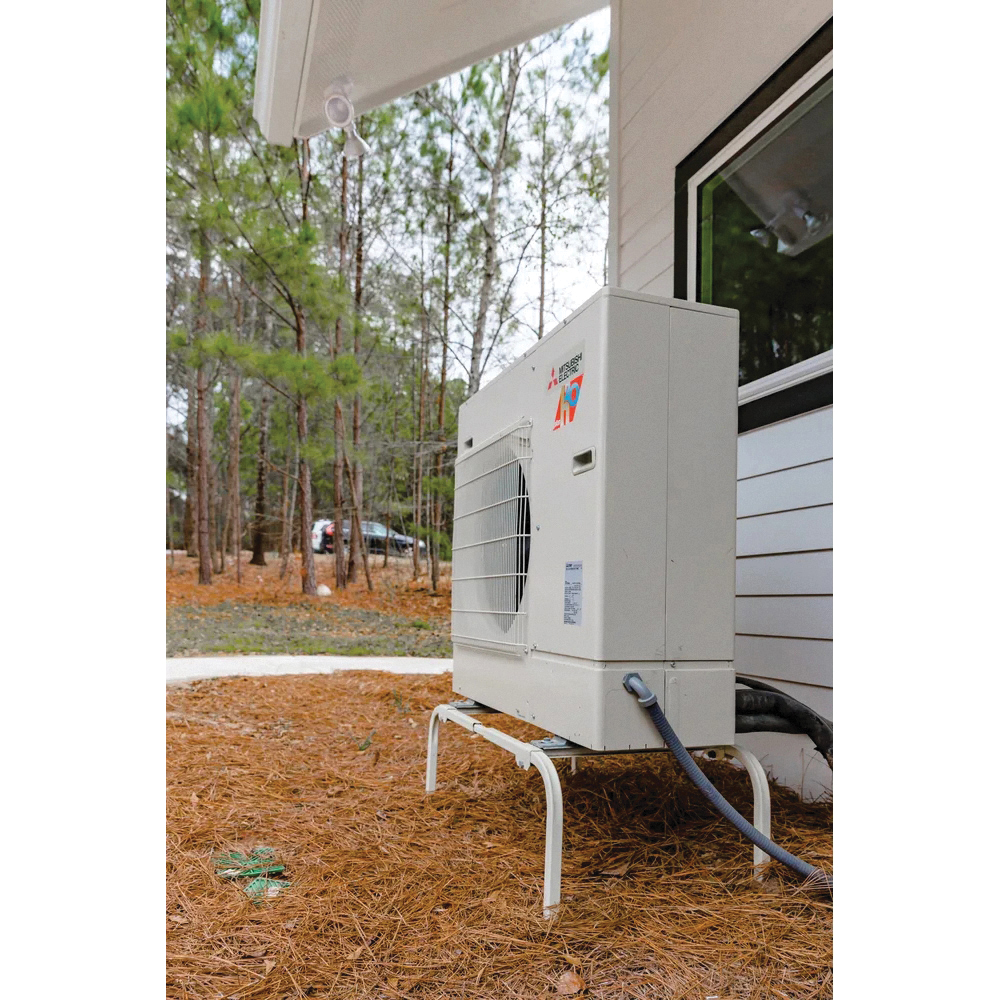

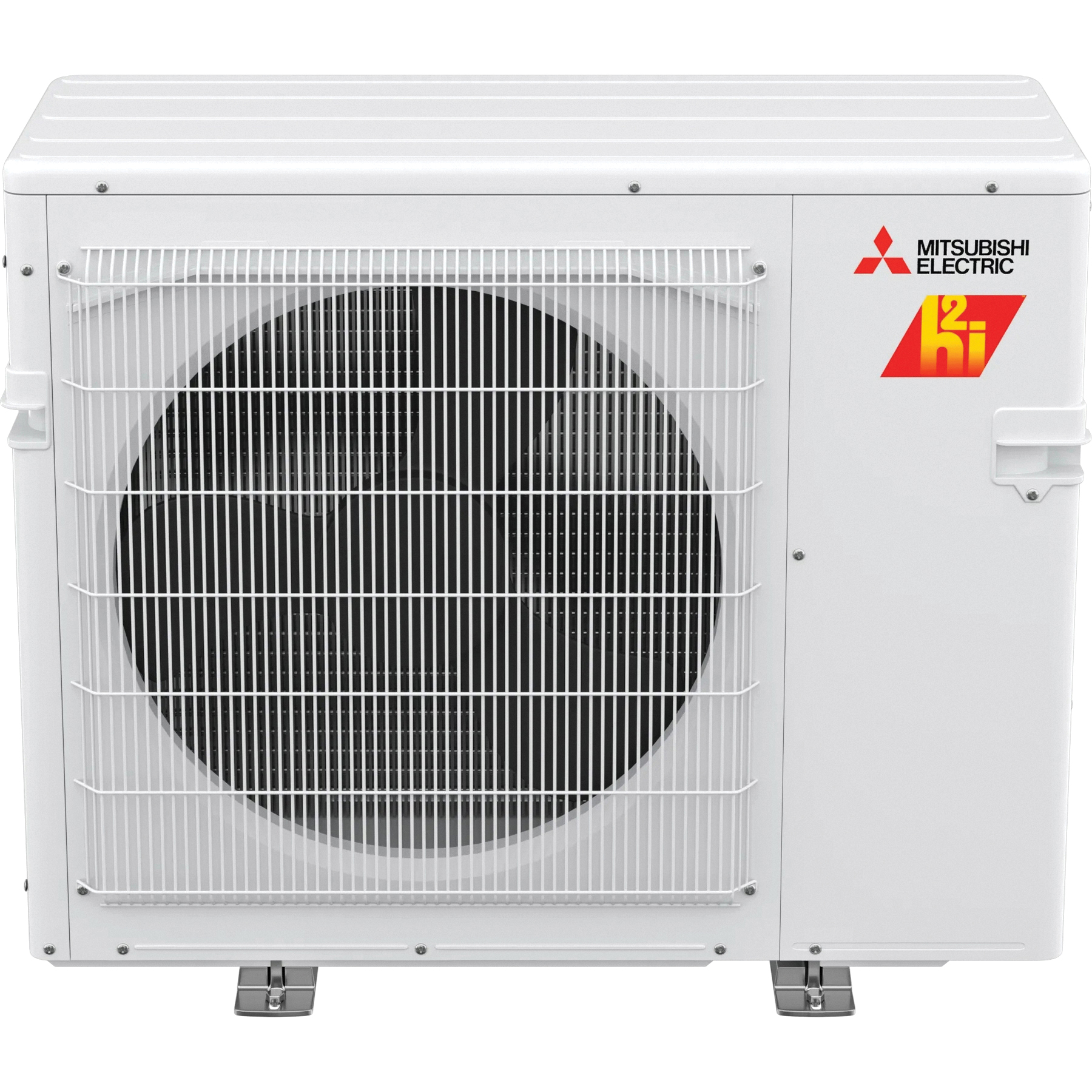

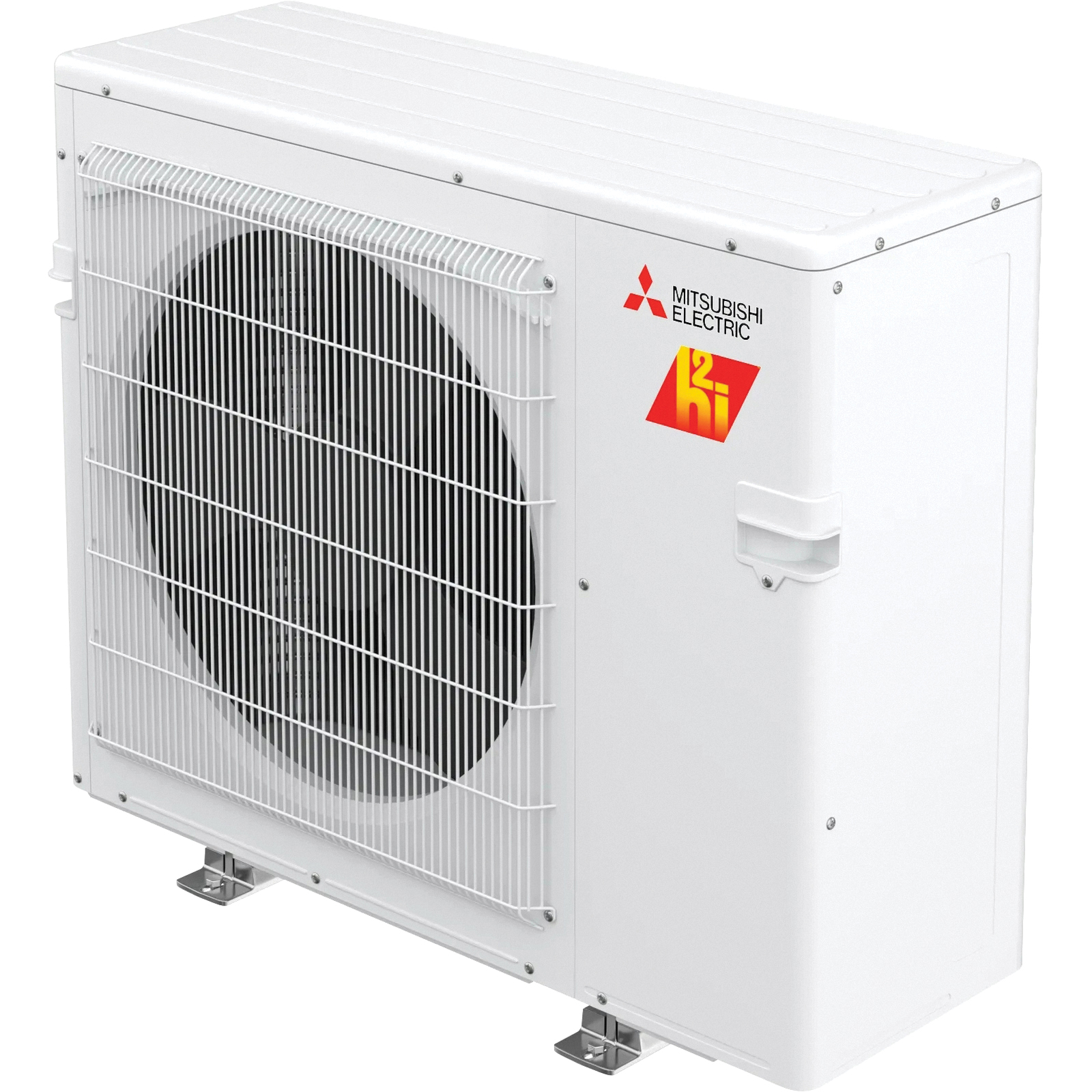

Mitsubishi Electric MXZ-3C24NA4-U1 MXZ-3C24NA4-U1
Mitsubishi Electric M Series MXZ MXZ-3C24NA4-U1 Multi-Split Air Source Heat Pump System, 208/230 V, 22.1 A, 1 ph-Phase
- Manufacturer: Mitsubishi Electric Corporation
- Brand Name: Mitsubishi Electric
- Part Number: MXZ-3C24NA4-U1
- MPN: MXZ-3C24NA4-U1
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Mitsubishi Electric Multi-Split Air Source Heat Pump System, M Series, Model: MXZ, 208/230 V, 22.1 A, 60 Hz, 1-Phase, 24600 Btu/hr Heating, 23600 Btu/hr Cooling, 2382 cfm Heating CFM Rating, 2287 cfm Cooling CFM Rating, 11.2 EER Rating, 15.8 SEER, 9.2 HSPF, Inverter Driven Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, 25 A Fuse Rating, 55 dB Heating Sound Level, 51 dB Cooling Sound Level, 5 to 65 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 37-7/16 in Overall Length, 13 in Overall Width, 31-3/8 in Overall Height
| Amperage Rating | : | 22.1 A |
| Compressor Type | : | Inverter Driven |
| Cooling BTU Rating | : | 23600 Btu/hr |
| Cooling CFM Rating | : | 2287 cfm |
| Cooling Operating Temperature | : | 14 to 115 deg F |
| Cooling Sound Level | : | 51 dB |
| EER Rating | : | 11.2 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A |
| HSPF Rating | : | 9.2 |
| Heating BTU Rating | : | 24600 Btu/hr |
| Heating CFM Rating | : | 2382 cfm |
| Heating Operating Temperature | : | 5 to 65 deg F |
| Heating Sound Level | : | 55 dB |
| Liquid Line Size | : | 1/4 in |
| Model | : | MXZ |
| Overall Height | : | 31-3/8 in |
| Overall Length | : | 37-7/16 in |
| Overall Width | : | 13 in |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 15.8 |
| Series | : | M Series |
| Suction Line Size | : | 1/2 in, 3/8 in |
| Voltage Rating | : | 208/230 V |
- Variable speed INVERTER-driven compressor
- M-NET connection optional through outdoor unit (Part # listed below)
- Quiet outdoor unit operation as low as 51 dB(A)
- High pressure switch for additional protection
- Base pan heater optional
Instruction/Installation Manual
