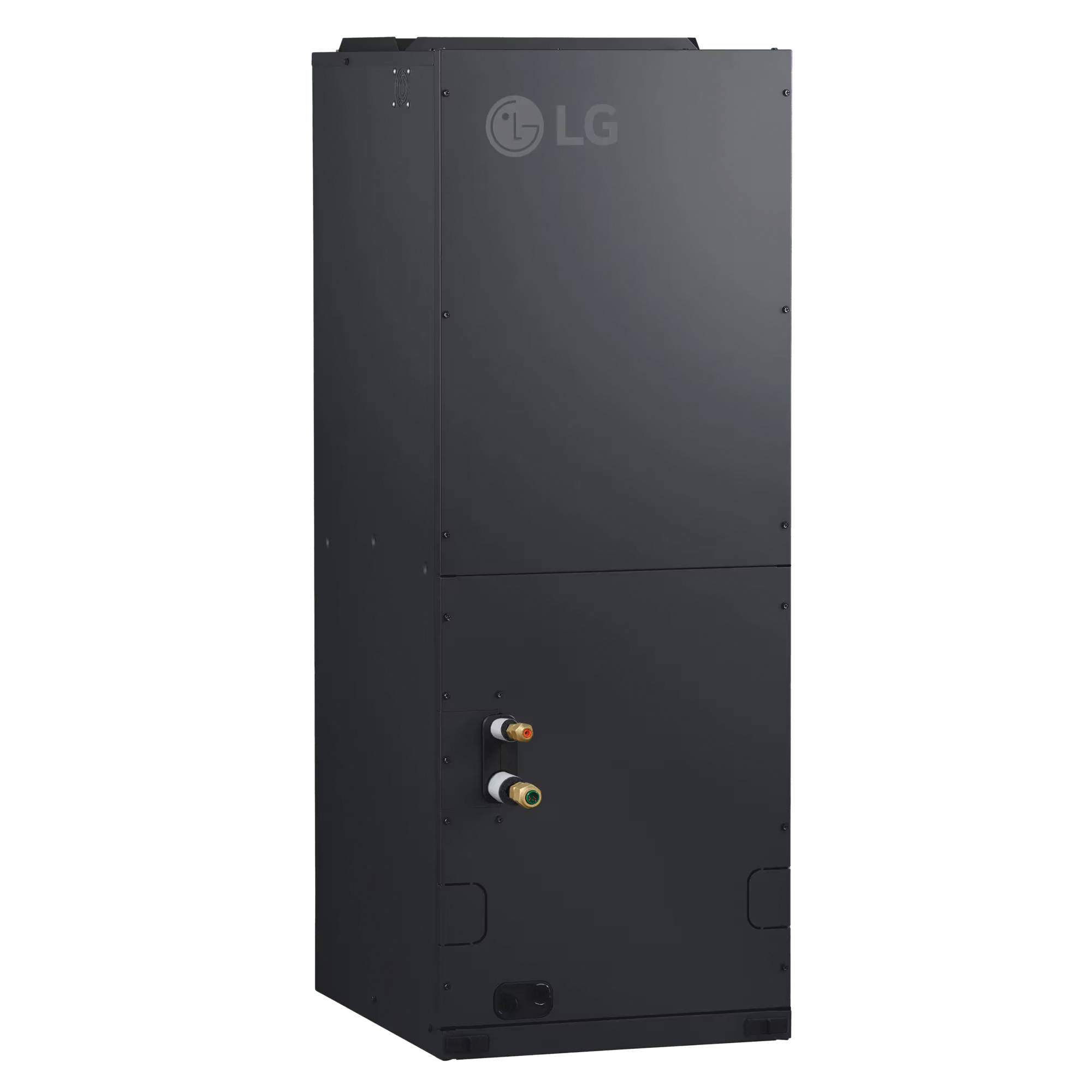

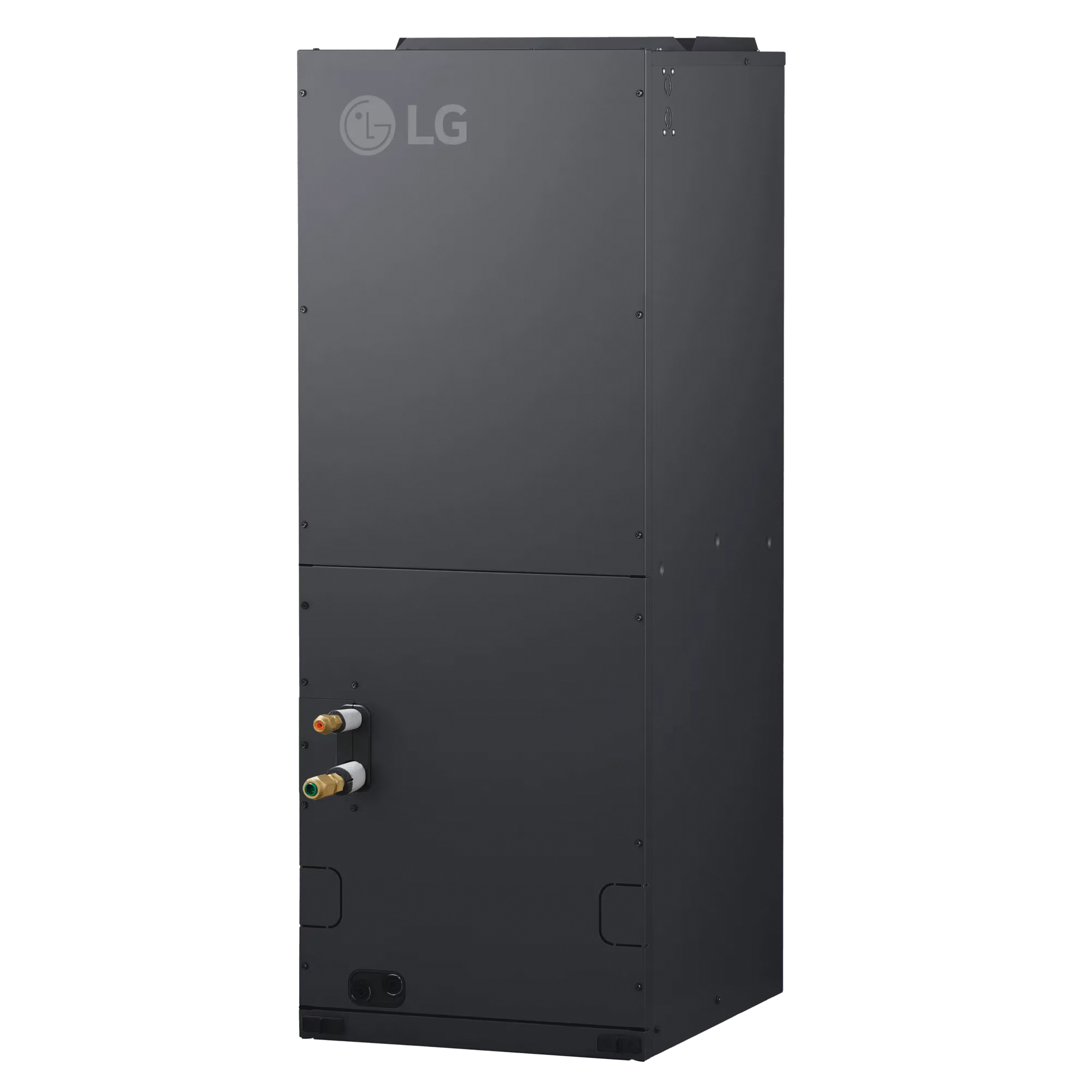

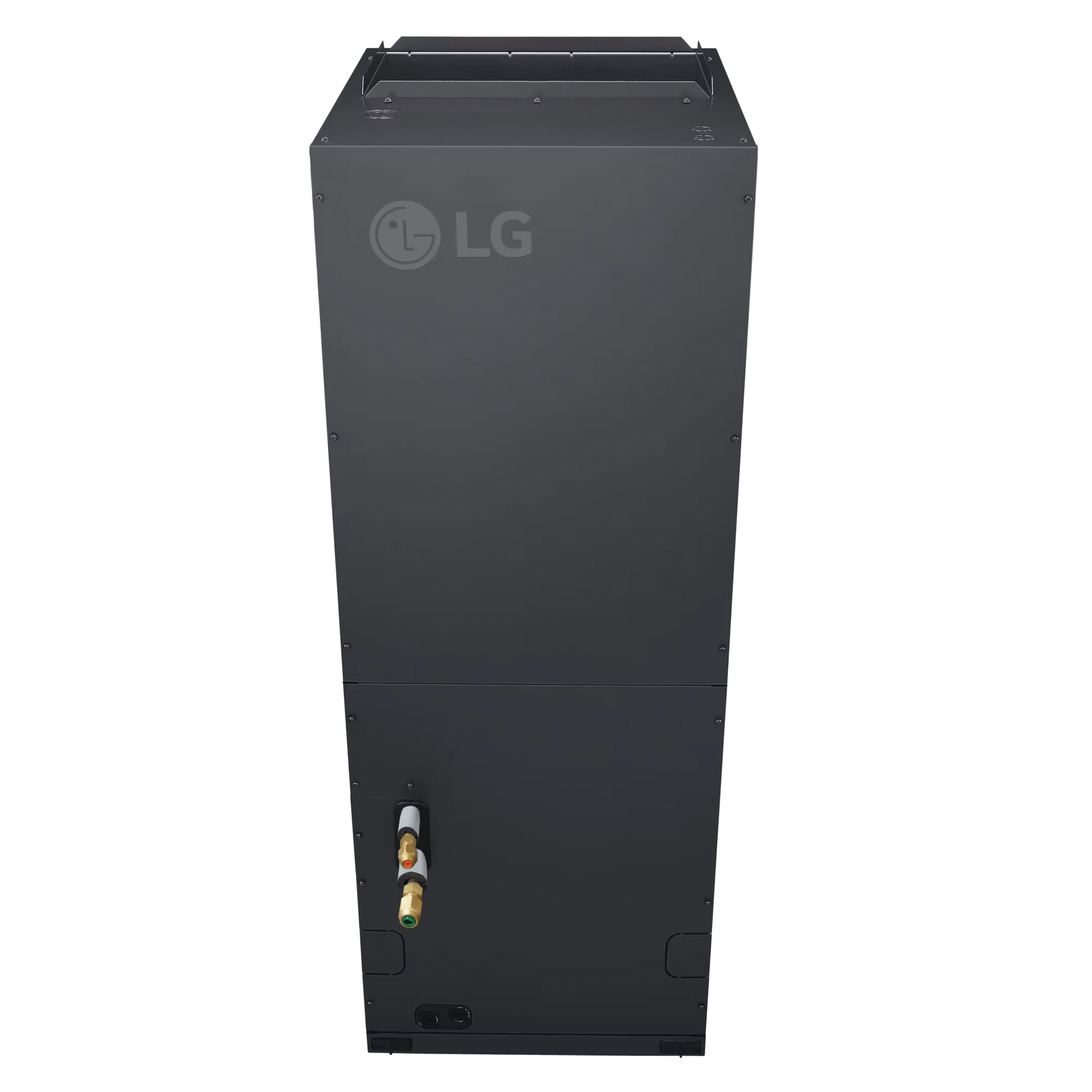

LG Air Handling Indoor Unit, 60500 Btu/hr Cooling Capacity, 61000 Btu/hr Heating, 60000 Btu/hr, 208/230 V, 32 A, 60 Hz, 1-Phase, 1982 cfm, Multi-Position, 12 EER Rating, 17.5 SEER, R-32 Refrigerant, 56 dB Sound Level, 40 A Fuse Rating, 3/8 in Liquid Line, 3/4 in Suction Line, 20 x 24 x 1 in Filter, Brushless Digitally Controlled Motor, 55-7/8 in H x 25 in W x 21-3/8 in D, Domestic/Import: Domestic
| Amperage Rating | : | 32 A |
| BTU Rating | : | 60000 Btu/hr |
| CFM Rating | : | 1982 cfm |
| Configuration | : | Multi-Position |
| Cooling Capacity | : | 60500 Btu/hr |
| Dimensions | : | 55-7/8 in H x 25 in W x 21-3/8 in D |
| Domestic/Import | : | Domestic |
| EER Rating | : | 12 |
| Filter Size | : | 20 x 24 x 1 in |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| Heating Capacity | : | 61000 Btu/hr |
| Liquid Line Size | : | 3/8 in |
| Motor Type | : | Brushless Digitally Controlled |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-32 |
| SEER Rating | : | 17.5 |
| Sound Level | : | 56 dB |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/230 V |
