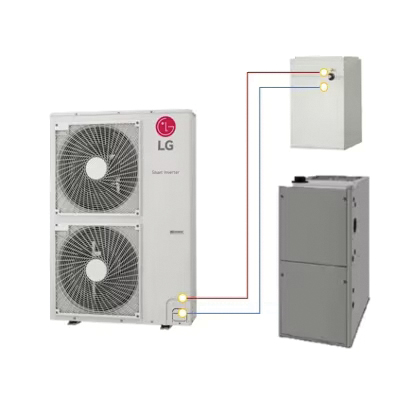

LG HVAC Single-Zone Heat Pump Outdoor Unit, 208-230 V, 32 A, 2.95 kW, 60 Hz, 1-Phase, 40000 Btu/hr Heating, 36000 Btu/hr Cooling, 1942 cfm Heating CFM Rating, R1 Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, 40 A Fuse Rating, Direct Drive, Tonnage: 2.5 to 3 ton, 54 dB Heating Sound Level, 52 dB Cooling Sound Level, 47 deg F Heating Operating Temperature, 95 deg F Cooling Operating Temperature, 13 in Overall Length, 37-13/32 in Overall Width, 54-11/32 in Overall Height
| Amperage Rating | : | 32 A |
| Compressor Type | : | R1 Scroll |
| Cooling BTU Rating | : | 36000 Btu/hr |
| Cooling Operating Temperature | : | 95 deg F |
| Cooling Sound Level | : | 52 dB |
| Drive Type | : | Direct |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| Heating BTU Rating | : | 40000 Btu/hr |
| Heating CFM Rating | : | 1942 cfm |
| Heating Operating Temperature | : | 47 deg F |
| Heating Sound Level | : | 54 dB |
| Liquid Line Size | : | 3/8 in |
| Overall Height | : | 54-11/32 in |
| Overall Length | : | 13 in |
| Overall Width | : | 37-13/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 2.95 kW |
| Refrigerant Type | : | R-410A |
| Suction Line Size | : | 5/8 in |
| Tonnage | : | 2.5 to 3 ton |
| Voltage Rating | : | 208-230 V |
Instruction/Installation Manual
