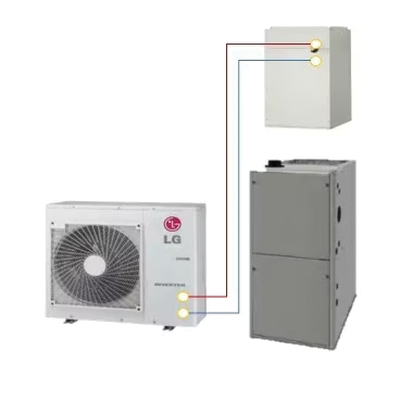

LG HVAC Single-Zone Heat Pump Outdoor Unit, 208-230 V, 20 A, 1.44 kW, 60 Hz, 1-Phase, 18500 Btu/hr Heating, 18000 Btu/hr Cooling, 2048 cfm Heating CFM Rating, 12.5 EER Rating, 17.5 SEER, 9.1 HSPF, Twin Rotary Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, 30 A Fuse Rating, Direct Drive, Tonnage: 1.5 ton, 52 dB Heating Sound Level, 48 dB Cooling Sound Level, 13 in Overall Length, 37-13/32 in Overall Width, 32-27/32 in Overall Height
| Amperage Rating | : | 20 A |
| Compressor Type | : | Twin Rotary |
| Cooling BTU Rating | : | 18000 Btu/hr |
| Cooling Sound Level | : | 48 dB |
| Drive Type | : | Direct |
| EER Rating | : | 12.5 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| HSPF Rating | : | 9.1 |
| Heating BTU Rating | : | 18500 Btu/hr |
| Heating CFM Rating | : | 2048 cfm |
| Heating Sound Level | : | 52 dB |
| Liquid Line Size | : | 3/8 in |
| Overall Height | : | 32-27/32 in |
| Overall Length | : | 13 in |
| Overall Width | : | 37-13/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 1.44 kW |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 17.5 |
| Suction Line Size | : | 5/8 in |
| Tonnage | : | 1.5 ton |
| Voltage Rating | : | 208-230 V |
