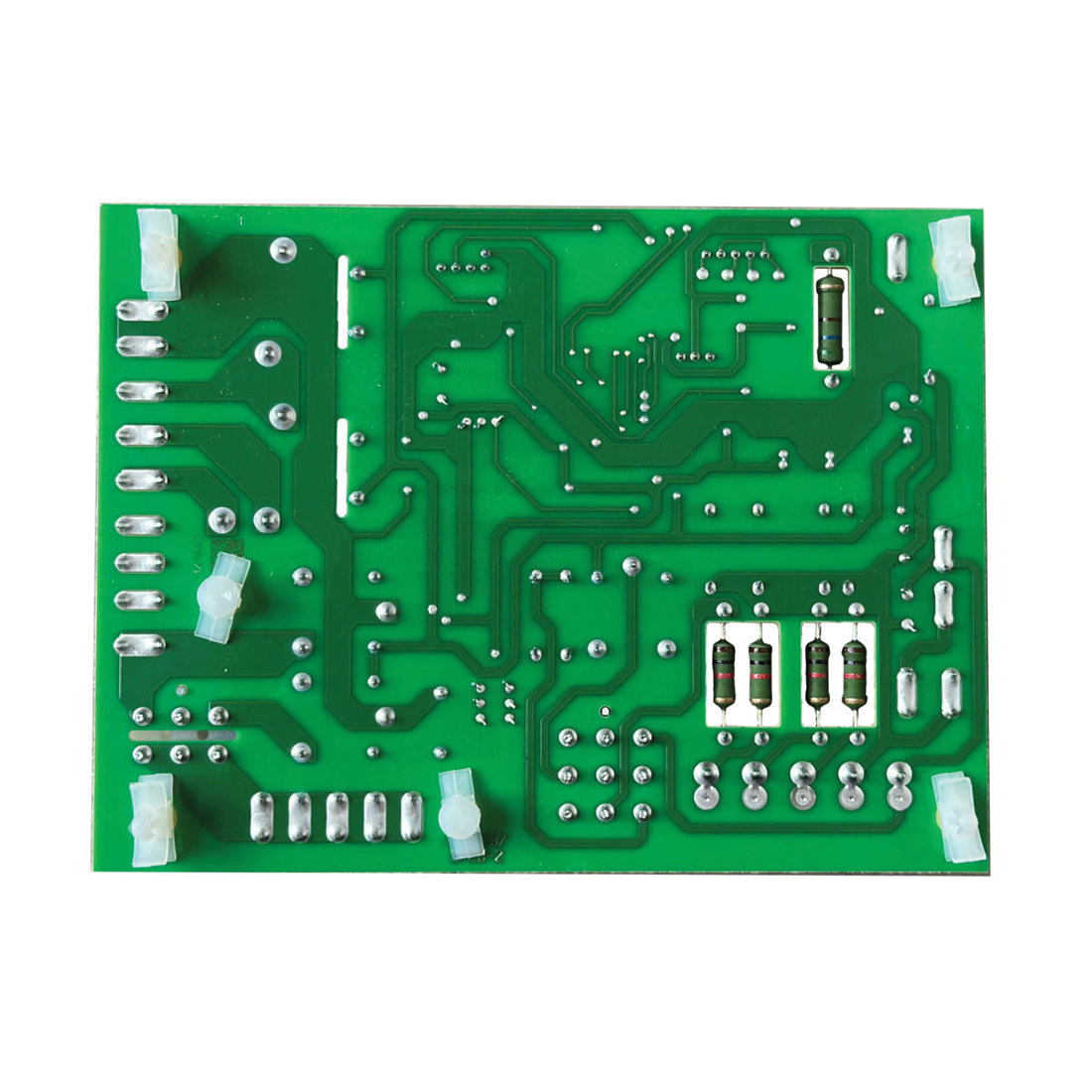

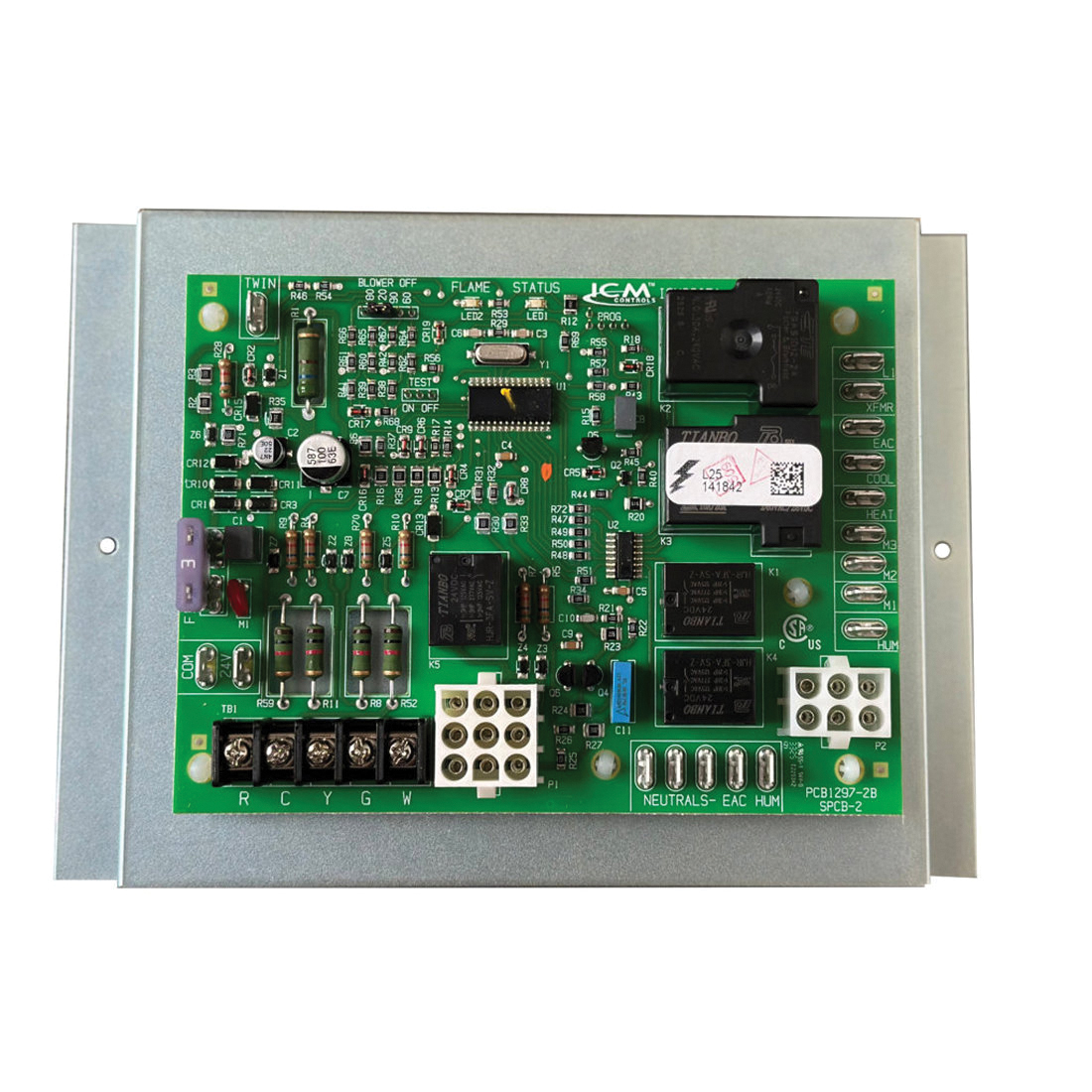

The ICM2805A is a low-cost replacement for Nordyne 624631 furnace control board which is used to control gas valve, inducer draft motor, circulating blower and hot surface ignitor.
ICM™ Furnace Control Board, 120 to 240 VAC, 5 A, 60 Hz, 2 hp, -40 to 176 deg F, For Use With: G3, G4, G5, G6, M2 and M3 Furnace Modules, Additional Information: 4-1/2 in L x 6 in W x 1-1/2 in H Dimensions
| Additional Information | : | 4-1/2 in L x 6 in W x 1-1/2 in H Dimensions |
| Amperage Rating | : | 5 A |
| Correct Item Group | : | Furnace Parts |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2 hp |
| Suitable For Use With | : | G3, G4, G5, G6, M2 and M3 Furnace Modules |
| Temperature Rating | : | -40 to 176 deg F |
| Voltage Rating | : | 120 to 240 VAC |
- Low cost, form, fit and functional replacement control board
- Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
- Monitors timing, trial for ignition, flame sensing, lockout, plus pressure, roll out and limit switches
- Microprocessor-based precision
- Twinning compatible with another ICM2805A furnace control
- Diagnostic LEDs to aid in testing/troubleshooting
