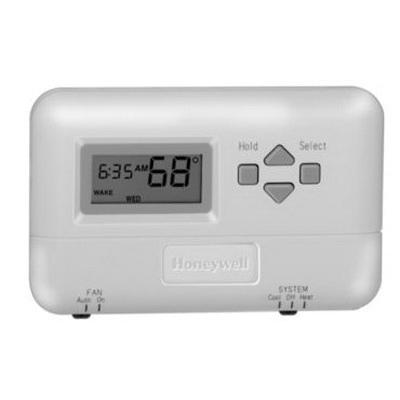

Honeywell T8000C1002/U T8000C1002
  1. pin-int

Honeywell T8000C1002/U T8000C1002

Honeywell T8000C1002/U Thermostat, 18 to 30 VAC, 5-2 day Program Programmability, 1 Heat/1 Cool

  • Manufacturer: Honeywell International Inc
  • Brand Name: Honeywell
  • Part Number: T8000C1002
  • MPN: T8000C1002/U
  • UPC: 085267184823
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Honeywell Thermostat, 18 to 30 VAC, 60 Hz Frequency, Programmability: 5-2 day Program, Changeover: Manual, Power Stealing Power Source, 1 Heat/1 Cool Stages, Switch Position: HEAT-OFF-COOL (System), AUTO-ON (Fan), Thermistor Sensing Element, +/-1 deg F Differential, 40 to 99 deg F Settings, 30 to 110 deg F Ambient, 5 to 90% RH Non-Condensing Humidity, Horizontal Mounting, Cool Current: 0.02 to 1.2 A Running, 6 A Inrush, Terminal Designation: B, O, Y, W, R, RC, G, Fan Current: 0.02 to 0.5 A Running, 2.5 A Inrush, Heat Current: 0.02 to 1.2 A Running, 3.5 A Inrush, Cycles per Hour: 3, Premier White, Dimensions: 3-1/2 in H x 5-1/2 in W x 1-3/16 in D

Changeover      :      Manual
Color      :      Premier White
Cool Current      :      0.02 to 1.2 A Running, 6 A Inrush
Cycles per Hour      :      3
Differential Temperature      :      +/-1 deg F
Dimensions      :      3-1/2 in H x 5-1/2 in W x 1-3/16 in D
Fan Current      :      0.02 to 0.5 A Running, 2.5 A Inrush
Frequency Rating      :      60 Hz
Heat Current      :      0.02 to 1.2 A Running, 3.5 A Inrush
Humidity Rating      :      5 to 90% RH Non-Condensing
Mounting Type      :      Horizontal
Power Source      :      Power Stealing
Programmability      :      5-2 day Program
Sensing Element      :      Thermistor
Stages      :      1 Heat/1 Cool
Switch Position      :      HEAT-OFF-COOL (System), AUTO-ON (Fan)
Temperature Rating      :      30 to 110 deg F Ambient
Temperature Settings      :      40 to 99 deg F
Terminal Designation      :      B, O, Y, W, R, RC, G
Voltage Rating      :      18 to 30 VAC
  • Attractive styling complements any decor
  • Pre-programmed for your convenience
  • Program up to four-time periods and temperature set points
  • Programs and set points are permanently held in memory in the event of a power failure
  • Indefinite setpoint temperature hold for added comfort and energy savings
  • Ease-of-use means fewer homeowner questions and increased homeowner satisfaction
  • Large temperature display for quick easy readability
  • Conveniently sized thermostat (5-1/2 x 3-1/2) with optional decorator cover plates (7-3/8 x 5-3/4) make it easy to install in a variety of locations
  • Keys are located by the display for easy access
  • Fan and system switches are located on the lower edge to eliminate accidental setting changes
  • Easy installation, setup and system checkout saves time and increases installer productivity
  • Deg F/C temperature display for added model flexibility
  • Cooling cycle rate is fixed (3 cph), the standard setting for compressors, for speedy installation
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Honeywell_T8411R1028_U_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Honeywell_T8000C1002_U_Manual.pdf
