Honeywell Home TH4210U2002-2358 HW TH4210U2002
  1. pin-int

Honeywell Home TH4210U2002-2358 HW TH4210U2002

Honeywell Home T4 Pro Series TH4210U2002-2358 Programmable Thermostat, 20 - 30 V, 2 Heat/1 Cool, 1 Heat/1 Cool

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: Honeywell Home
  • Part Number: HW TH4210U2002
  • MPN: TH4210U2002-2358
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The T4 Pro Programmable Thermostat helps you manage your home heating and cooling in a simple, easy to use device. Designed to streamline everything from installation to user experience, the T4 features push button control and seven-day scheduling, including an option to set a different schedule on weekends. With its adaptive intelligent recovery, the T4 helps you feel comfortable sooner by learning how long it takes your system to reach a desired temperature and activating the system earlier.

Honeywell Home Programmable Thermostat, Series: T4 Pro Series, 20 - 30 V, 50/60 Hz, 7 days, 5-1-1 days, 5-2 days Programmable or Non-Programmable Programmability, Auto/Manual, Battery, 2 Heat/1 Cool, 1 Heat/1 Cool Stages, HEAT-OFF-COOL-AUTO-EMERGENCY-HEAT (System), AUTO-ON (Fan) Switch Position, Relay Switch, 3.93 sq-in Medium Display, +/-1 deg F Differential Temperature, 40 to 90 deg F Heating, 50 to 99 deg F Cooling Temperature Settings, 37 to 102 deg F, 5 to 90% RH, Non-Condensing Humidity Rating, 1 deg F Accuracy, Wall Mounting, Cool Current: 0.02 to 1 A, Terminal Designation: R, RC, C, W, O/B, Y, G, L and K, Hardwired Electrical Connection, 0.02 to 0.5 A Fan, AA Battery, Heat Current: 0.02 to 1 A, VA Rating: 1 VA, 5 to 90% RH Humidification Setting, White, 4-1/16 in L x 4-1/16 in W x 1-3/32 in D

Accuracy      :      1 deg F
Battery Size      :      AA
Changeover      :      Auto/Manual
Color      :      White
Cool Current      :      0.02 to 1 A
Differential Temperature      :      +/-1 deg F
Dimensions      :      4-1/16 in L x 4-1/16 in W x 1-3/32 in D
Display Type      :      3.93 sq-in Medium
Electrical Connection      :      Hardwired
Fan Current      :      0.02 to 0.5 A
Frequency Rating      :      50/60 Hz
Heat Current      :      0.02 to 1 A
Humidification Setting Range      :      5 to 90% RH
Humidity Rating      :      5 to 90% RH, Non-Condensing
Mounting Type      :      Wall
Power Source      :      Battery
Programmability      :      7 days, 5-1-1 days, 5-2 days Programmable or Non-Programmable
Series      :      T4 Pro Series
Stages      :      2 Heat/1 Cool, 1 Heat/1 Cool
Switch Position      :      HEAT-OFF-COOL-AUTO-EMERGENCY-HEAT (System), AUTO-ON (Fan)
Switch Type      :      Relay
Temperature Rating      :      37 to 102 deg F
Temperature Settings      :      40 to 90 deg F Heating, 50 to 99 deg F Cooling
Terminal Designation      :      R, RC, C, W, O/B, Y, G, L and K
VA Rating      :      1 VA
Voltage Rating      :      20 - 30 V
  • T4 Pro Programmable Thermostat, 2 Heat/1 Cool

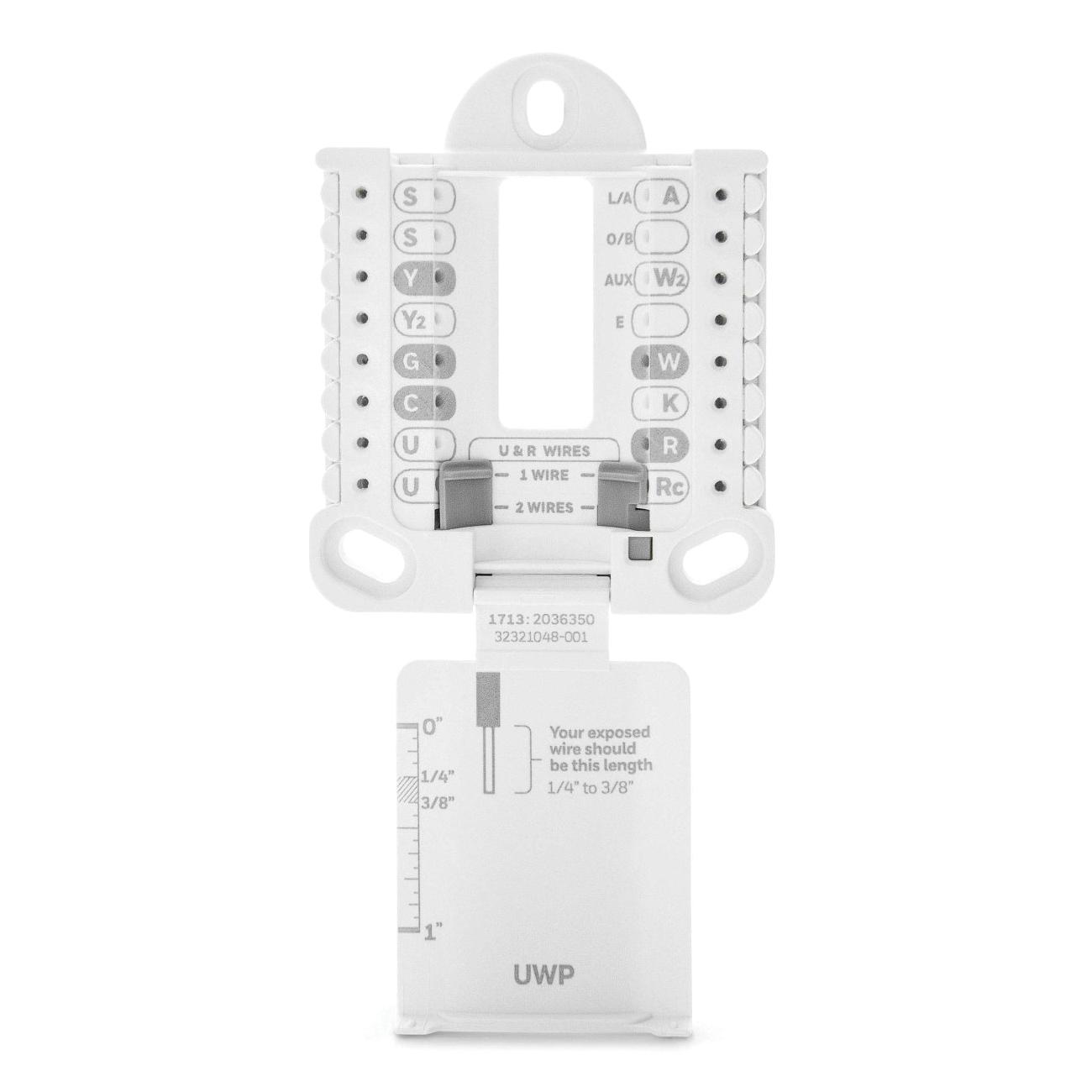

  • The T4 Pro Programmable Thermostat is easy to install with on-screen menus to display installation steps and a universal mounting system
  • Over time, the T4 Pro Programmable Thermostat learns how long it takes your system to reach the temperature you want
  • It takes work to manage your daily schedule, but with the T4 Pro Programmable Thermostat, your home temperature is one thing you can set and forget
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Honeywell_Home_TH4210U2002_2358_Instruction_Installation_Manual.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Honeywell_Home_TH4210U2002_2358_Owners_User_Manual.pdf
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/Honeywell_Home_TH4210U2002_2358_Submittal.pdf
  • videoVideo Link https://www.youtube.com/embed/gQjIEl6l4co
