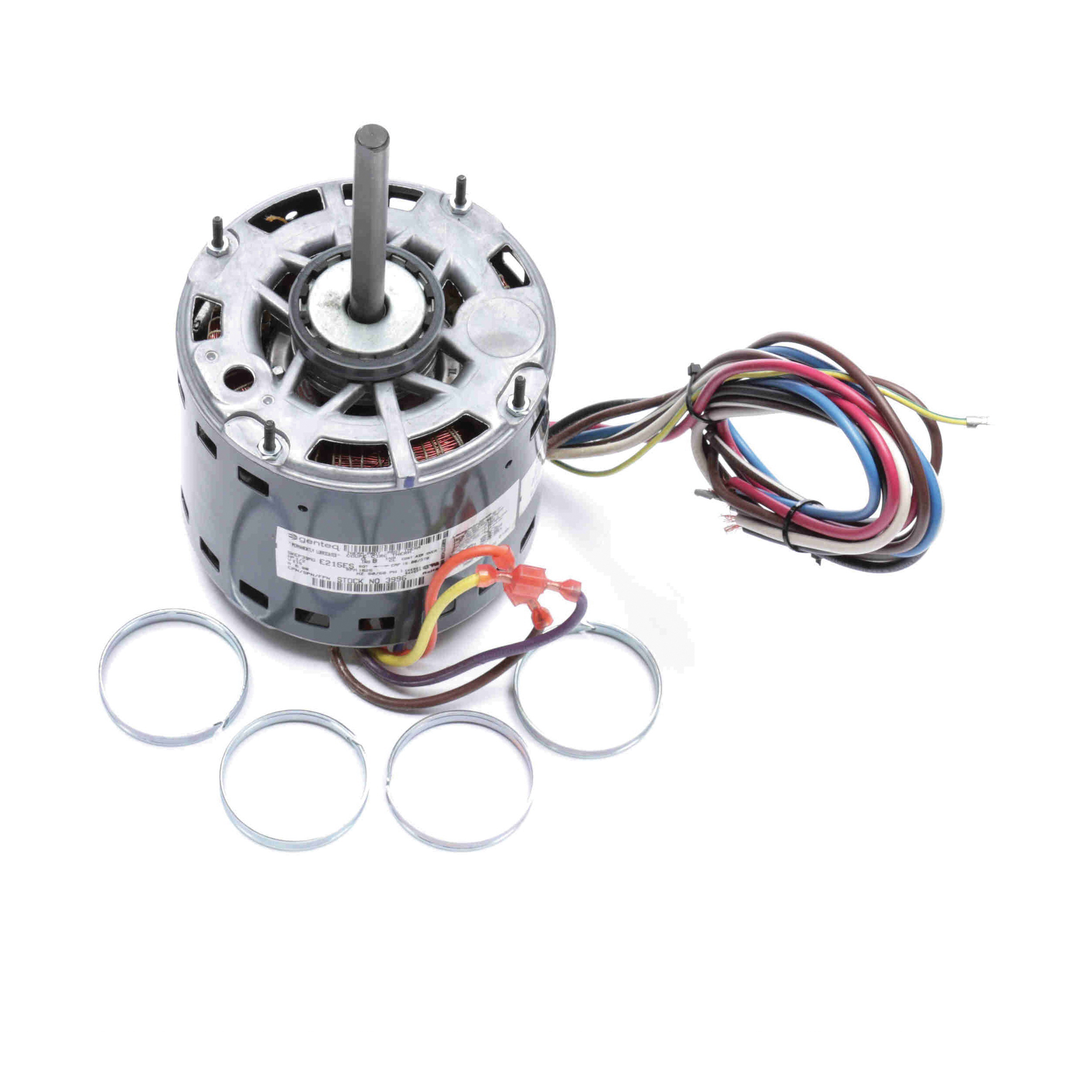

Genteq® Fan and Blower Motor, 1/2 hp, 115 V, 6 A, 60 Hz, 1-Phase, 1625 rpm, 3 Speed, OAO Enclosure, 48 Frame, 1/2 in Dia Shaft, 1 Service Factor, Sleeve Bearing, 40 deg C, Insulation Class: B, Steel Housing, 9.89 in Overall Depth, Additional Information: Reversible Rotation, Continuous Air Over-Duty
| Additional Information | : | Reversible Rotation, Continuous Air Over-Duty |
| Amperage Rating | : | 6 A |
| Bearing Type | : | Sleeve |
| Enclosure Type | : | OAO |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Housing Material | : | Steel |
| Insulation Class | : | B |
| Number of Speeds | : | 3 |
| Overall Depth | : | 9.89 in |
| Phase | : | 1 ph |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia |
| Speed Rating | : | 1625 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 V |
- Direct Drive Fan and Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40degC Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Resilient Ring Mounting, Extended Clampbolts
