DiversiTech® VAX-6B DIVERS VAX6B

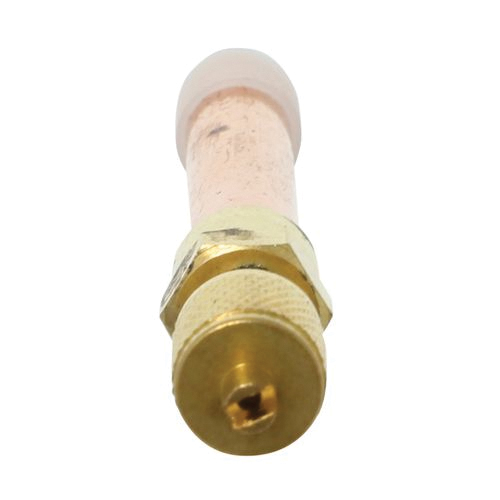

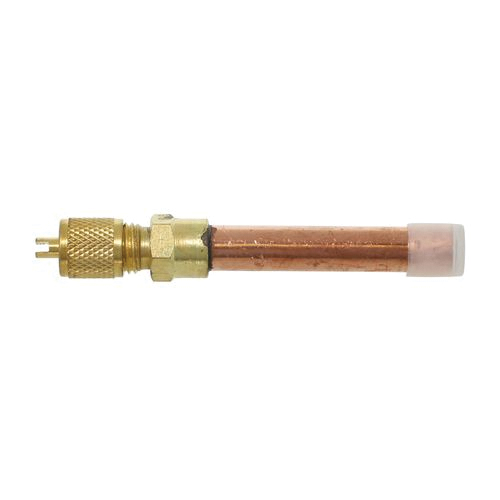

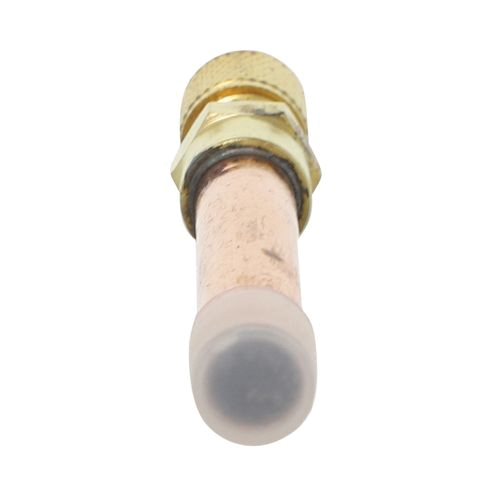

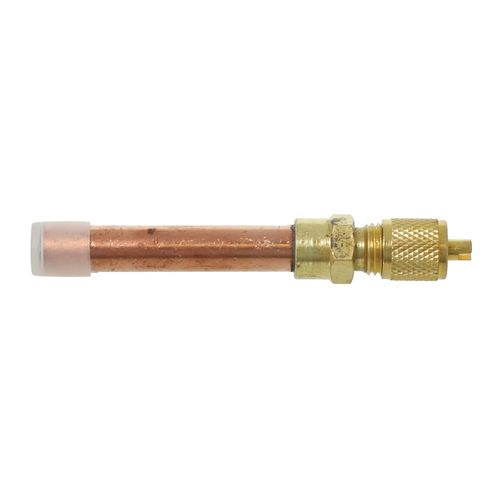

DiversiTech® VAX-6B Extended Tube, 5/16 in ID x 3/8 in OD, Male Flared End, Brass/Copper
- Manufacturer: DiversiTech Corporation
- Brand Name: DiversiTech®
- Part Number: DIVERS VAX6B
- MPN: VAX-6B
- UPC: 686109003960
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The DiversiTech® VAX-6B xtended copper tube is a convenient low-cost port for refrigeration servicing. It can be installed in any position on either high or low side for charging, purging, quick testing, or pressure checking. DiversiTech's access fittings have 1/4 in. SAE male flare access ports and include a quick seal cap and a stainless and brass special refrigerant valve core.
DiversiTech® Extended Tube, 5/16 in ID x 3/8 in OD Nominal, Male Flared End, 500 psi, 30 to 400 deg F, Brass/Copper, 1 in Overall Length
| End Type | : | Male Flared |
| Material | : | Brass/Copper |
| Nominal Size | : | 5/16 in ID x 3/8 in OD |
| Overall Length | : | 1 in |
| Pressure Rating | : | 500 psi |
| Temperature Rating | : | 30 to 400 deg F |
- Solid C3604 brass construction
- Flexible positioning
- Solder connections
Specification Sheet
