Broan-NuTone® LP50100DC BROAN LP50100DC
Broan-NuTone® LoProfile™ DC Series LP50100DC Bathroom Exhaust Fan, 120 V, 0.4 A, Polymeric/Steel Housing
- Manufacturer: Madison Air
- Brand Name: Broan-NuTone®
- Part Number: BROAN LP50100DC
- MPN: LP50100DC
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Broan-NuTone® LoProfile™ Bathroom Exhaust Fan, DC Series, 120 V, 0.4 A, 60 Hz, Ceiling, Wall Mounting, 13 in L x 14 in W Grille, 4 in Duct, 50 to 100 cfm, 1.2 sones Noise Rating, 3 Speed, 10-1/2 in Overall Length, 11-3/8 in Overall Width, 4 in Overall Height, Polymeric/Steel Housing, Galvanized Housing, White Housing
| Amperage Rating | : | 0.4 A |
| CFM Rating | : | 50 to 100 cfm |
| Duct Size | : | 4 in |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 13 in L x 14 in W |
| Housing Color | : | White |
| Housing Finish | : | Galvanized |
| Housing Material | : | Polymeric/Steel |
| Mounting Type | : | Ceiling, Wall |
| Noise Rating | : | 1.2 sones |
| Number of Speeds | : | 3 |
| Overall Height | : | 4 in |
| Overall Length | : | 10-1/2 in |
| Overall Width | : | 11-3/8 in |
| Series | : | DC Series |
| Voltage Rating | : | 120 V |
- Selectable CFM with speeds of 50-80-100 for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- <0.3-0.7-1.2 Sones for quiet performance, enough sound to know your fan is on
- 4" oval duct connection for installation flexibility, allows for ceiling or wall mounting
- ENERGY STAR® Certified efficient operation for lower utility bills
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
- Powerful enough for rooms up to 90 sq. ft

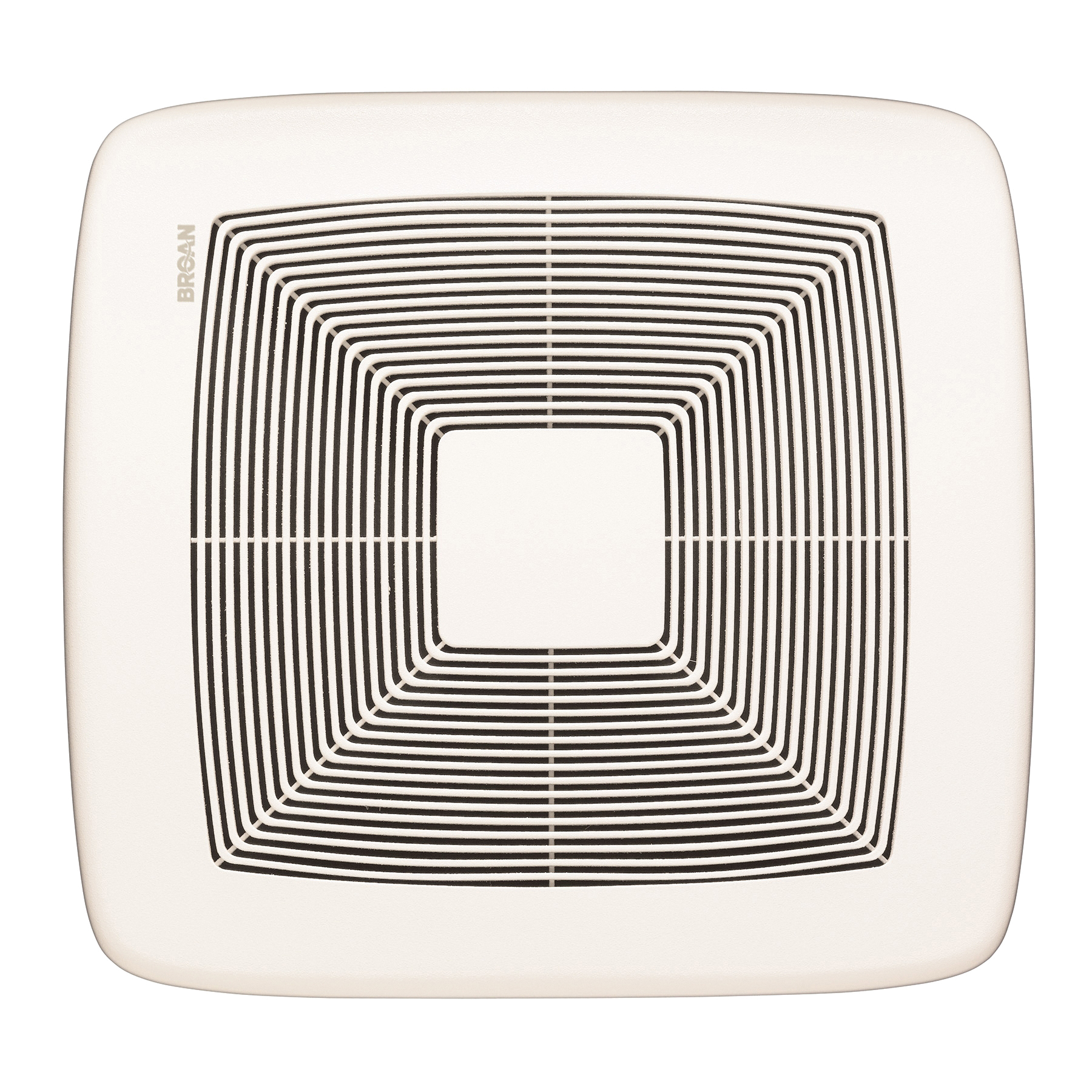

- Brighter white grilles blend in to match most common ceiling paint

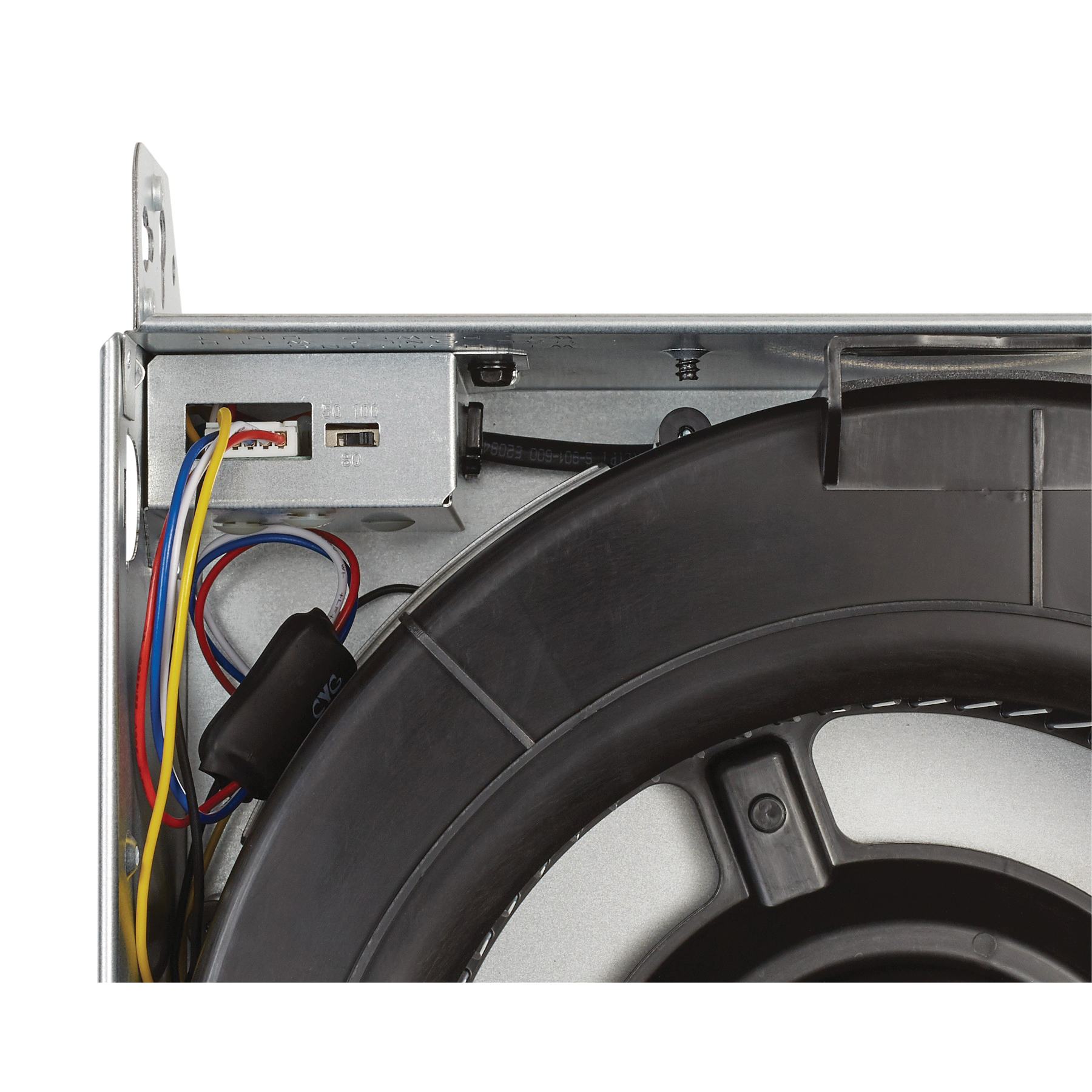

- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
- Compatible with RDF2 Radiation Damper
Instruction/Installation Manual
