Broan-NuTone® AE50110DCS BROAN AE50110DCS
Broan-NuTone® Flex DC Series AE50110DCS Humidity Sensing Ventilation Fan, 120 VAC, 0.3 A Housing, Galvanized Housing
- Manufacturer: Madison Air
- Brand Name: Broan-NuTone®
- Part Number: BROAN AE50110DCS
- MPN: AE50110DCS
- UPC: 026715257010
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Broan® AE50-110DCS Flex DC series 80 cfm humidity sensing exhaust bath fan, ENERGY STAR offers easy, room side installation, with "no attic access required". Ceiling-mounted ventilation fan features foldable mounting ears and EZ duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. The humidity sensing feature will automatically turn the fan on when a preset level has been reached, thus allowing for proper ventilation throughout the room. This energy efficient fan operates at a selectable cfm range of 50 to 110 at a quiet operation of <0.3 to 0.9 sones.
Broan-NuTone® Humidity Sensing Ventilation Fan, Series: Flex DC, 120 VAC, 0.3 A, 60 Hz, Power Rating: 3.4 to 14.9 W, Ceiling, Wall Mounting, 11-1/2 x 12 in Grille, 4 in Duct, Motor Type: Brushless DC, 50 to 110 cfm, 105 sq-ft Coverage Area, 0.3 to 1.4 sones Noise, 9-1/4 in L Overall, 10 in W Overall, 5-3/4 in H Overall, Steel Housing, Housing Finish: Galvanized, White Housing
| Amperage Rating | : | 0.3 A |
| CFM Rating | : | 50 to 110 cfm |
| Coverage Area | : | 105 sq-ft |
| Duct Size | : | 4 in |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 11-1/2 x 12 in |
| Housing Color | : | White |
| Housing Finish | : | Galvanized |
| Housing Material | : | Steel |
| Motor Type | : | Brushless DC |
| Mounting Type | : | Ceiling, Wall |
| Noise Rating | : | 0.3 to 1.4 sones |
| Overall Height | : | 5-3/4 in |
| Overall Length | : | 9-1/4 in |
| Overall Width | : | 10 in |
| Power Rating | : | 3.4 to 14.9 W |
| Series | : | Flex DC |
| Voltage Rating | : | 120 VAC |
- Humidity Sensing Ventilation Fan
- SensAire humidity control automatically turns fans on when a rapid to moderate (user adjustable) increase of humidity is sensed or when humidity rises above the user adjustable set point (50 to 80% RH)
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room side, no attic access required, this means a faster, easier installation
- Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug-in, permanently lubricated, brushless DC motor engineered for continuous operation
- Can be installed in a wall if mounted 8 ft or more above the floor

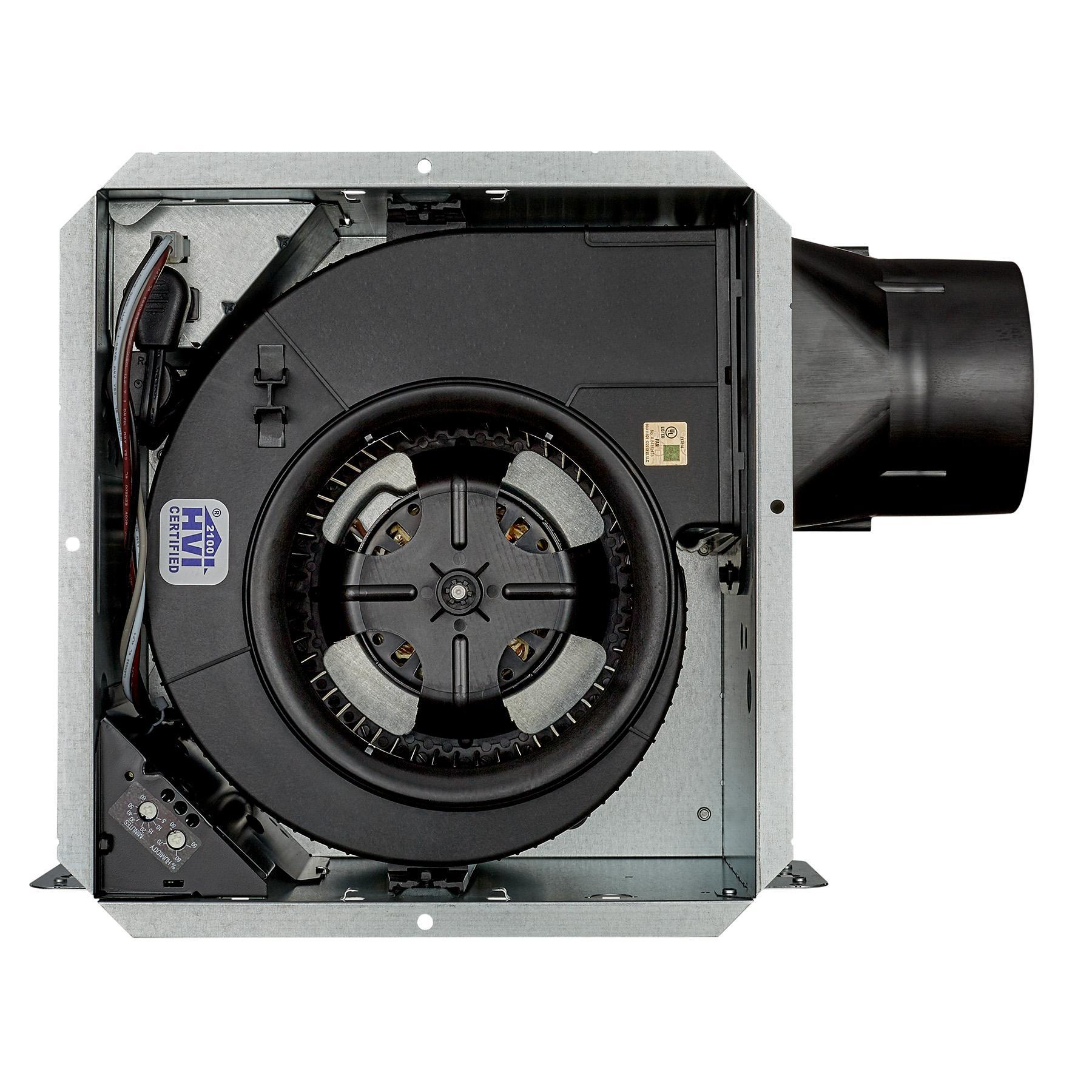

- Dynamically balanced centrifugal blower wheel for quiet, efficient performance
- Low RPM for quiet operation
- FlexFlow technology, select between 50 cfm, 80 cfm or 110 cfm
