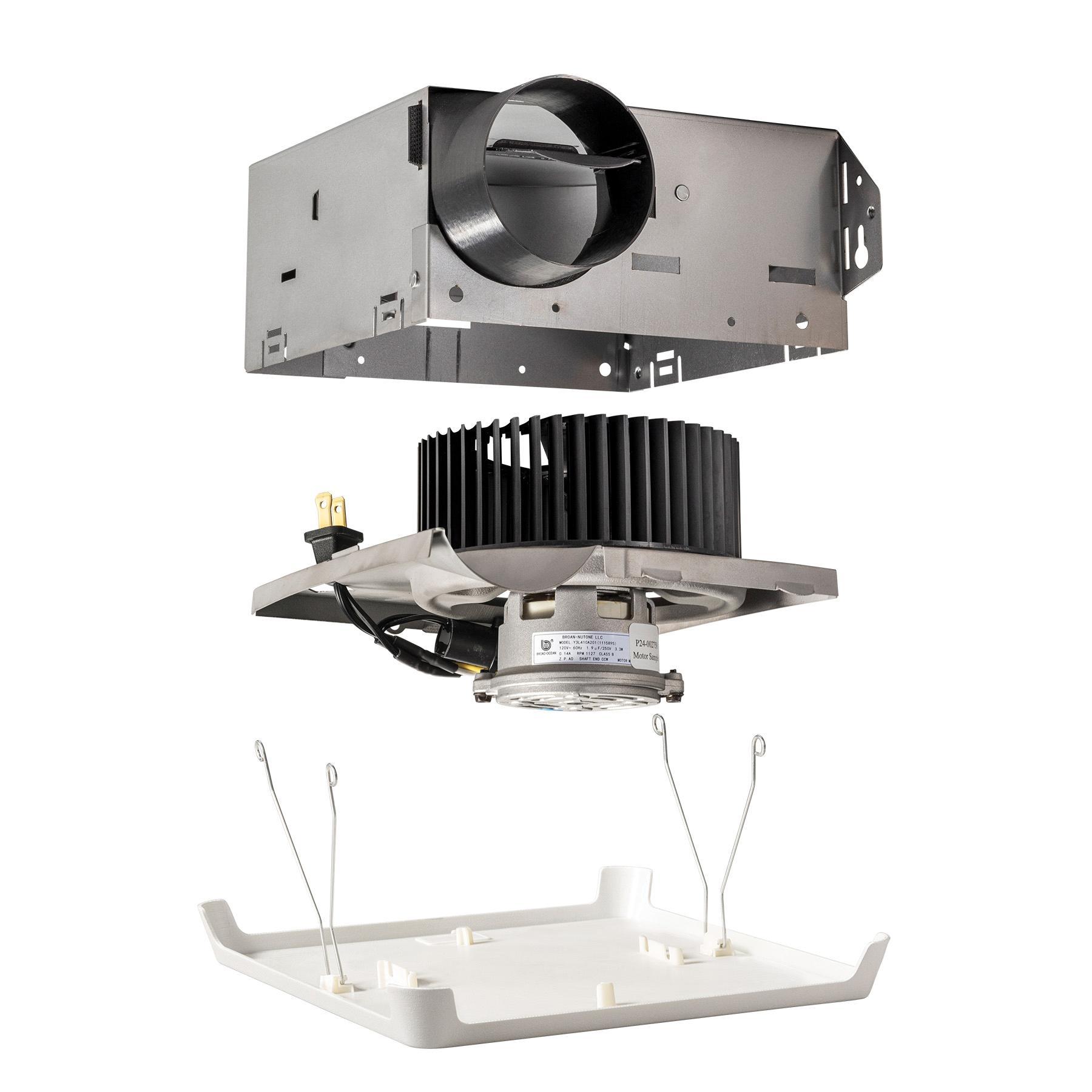

Broan-Nutone® Economy Energy Star Series fans are versatile, compact, and economical ventilation solutions. With a galvanized steel housing and double strength mounting flanges, the economy fan offers powerful ventilation performance with Energy Star® for 2.0 sones, that helps ventilate air to prevent mold and mildew. Also including a removable motor assembly and plug-in permanently lubricated motor for ease of service and cleaning.
Broan-NuTone® Economy Ceiling/Wall Fan, 120 V, 0.3 A, 60 Hz, 9 in L x 8-3/4 in W Grille, 3 in Duct, 50 cfm Rating, 45 sq-ft Coverage Area, 2 dBA Noise Rating, 7-1/4 in Overall Length, 7-1/2 in Overall Width, 3-5/8 in Overall Height, Steel Housing, Galvanized Housing, White Housing
| Amperage Rating | : | 0.3 A |
| CFM Rating | : | 50 cfm |
| Coverage Area | : | 45 sq-ft |
| Duct Size | : | 3 in |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 9 in L x 8-3/4 in W |
| Housing Color | : | White |
| Housing Finish | : | Galvanized |
| Housing Material | : | Steel |
| Noise Rating | : | 2 dBA |
| Overall Height | : | 3-5/8 in |
| Overall Length | : | 7-1/4 in |
| Overall Width | : | 7-1/2 in |
| Voltage Rating | : | 120 V |
- 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- Energy Star Certified at 2.0 audible sones for privacy while using your bathroom.
- Compact housing with foldable mounting brackets for NO CUT and versatile installation
- Powerful enough for rooms up to 45 sq. ft.

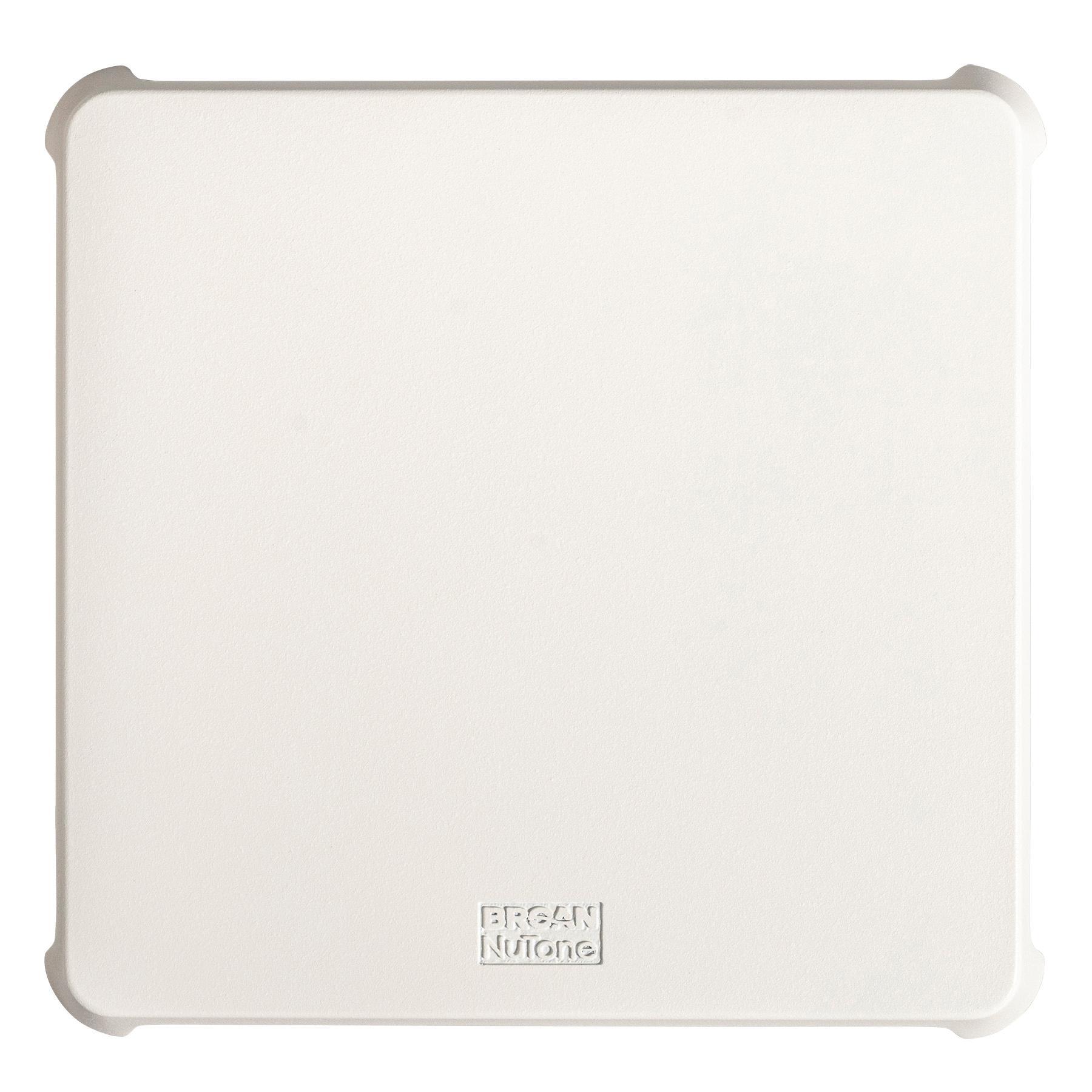

- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture

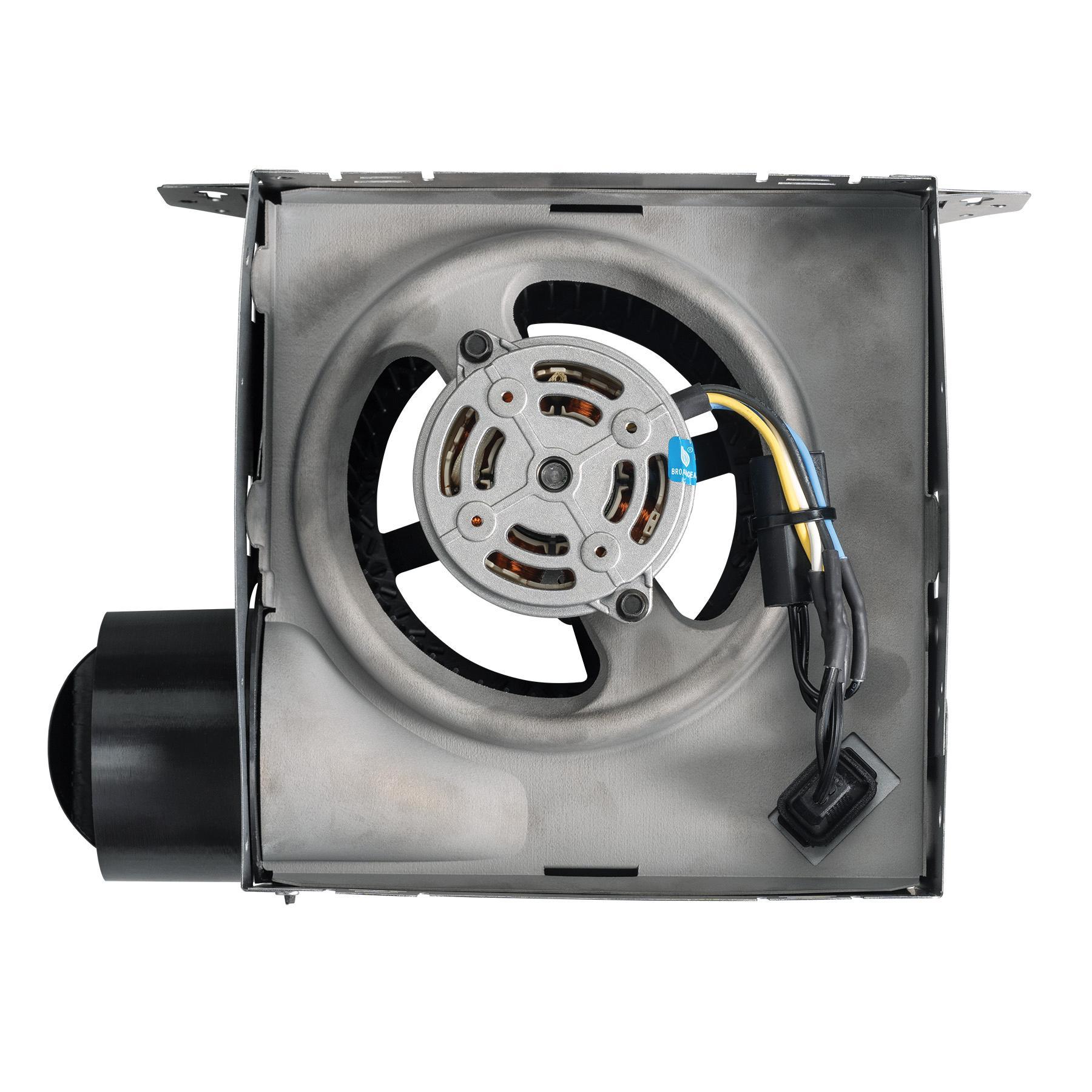

- Permanently lubricated AC motor engineered for continuous operation
- Double strength mounting flanges with keyhole slots
- Quiet polymeric damper prevents cold backdrafts with no metallic clatter
- No electrical knockout to remove
- Removable wiring cover - make connections away from tight corners
- U.L. listed for tub or shower enclosure with GFCI branch wiring
Instruction/Installation Manual
