Aspen AED Series AED-S-004+FCLS10 Electric Furnace, 18000 to 36000 Btu/hr BTU, 208/240 V, 54.5 A, 1/2 hp, 10 kW, 60 Hz
- Manufacturer: Aspen Manufacturing
- Brand Name: Aspen
- Part Number: AED-S-004+FCLS10
- MPN: AED-S-004+FCLS10
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Aspen Electric Furnace, AED Series, 208/240 V, 54.5 A, 10 kW, 1/2 hp, 60 Hz, 1-Phase, 18000 to 36000 Btu/hr, Tonnage: 1.5 to 3 ton, ECM Motor, 60 A Fuse Rating, 18 x 20 x 1 in Filter, Downflow, Steel, Finish: Galvanized, 57 in H x 24-3/4 in W x 19-3/4 in D, Domestic/Import: Domestic
| Amperage Rating | : | 54.5 A |
| BTU Rating | : | 18000 to 36000 Btu/hr |
| Configuration | : | Downflow |
| Dimensions | : | 57 in H x 24-3/4 in W x 19-3/4 in D |
| Domestic/Import | : | Domestic |
| Filter Size | : | 18 x 20 x 1 in |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 60 A |
| HP Rating | : | 1/2 hp |
| Material | : | Steel |
| Motor Type | : | ECM |
| Phase | : | 1 ph |
| Power Rating | : | 10 kW |
| Series | : | AED Series |
| Tonnage | : | 1.5 to 3 ton |
| Voltage Rating | : | 208/240 V |
- One piece cabinet, reducing time and effort when field converting airflow orientation. Unit is convertible to either orientation with the correct door/ accessories
- Reduced air handler weight
- Heat kits available in both field and factory installation kits
- AEU/D-S & AEU/D-L one-piece cabinet design fits up to a 27.5 tall coil
- Electrical access from both sides of the cabinet
- More room in cabinet for larger coils, as energy efficiencies increase, while maintaining overall cabinet dimensions

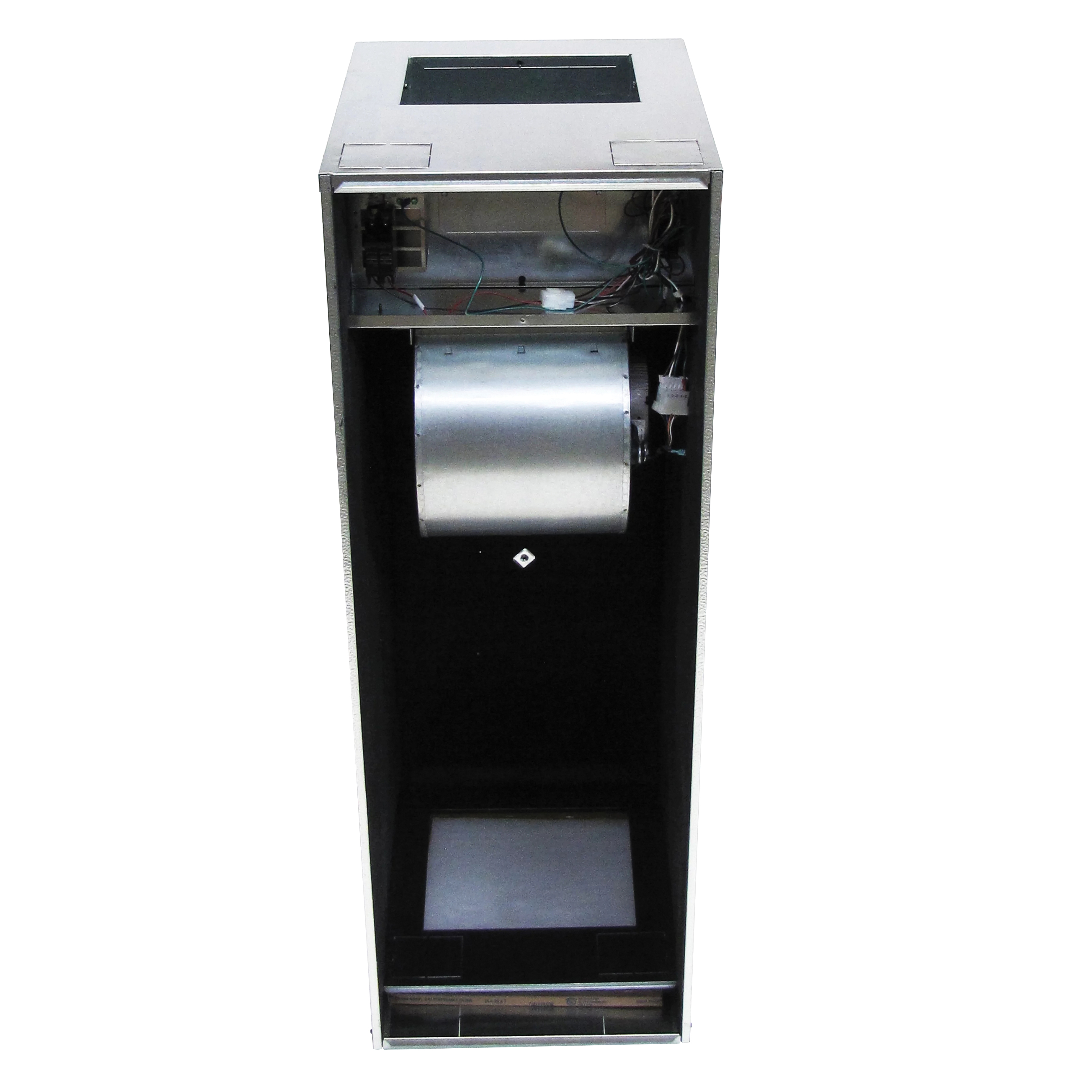

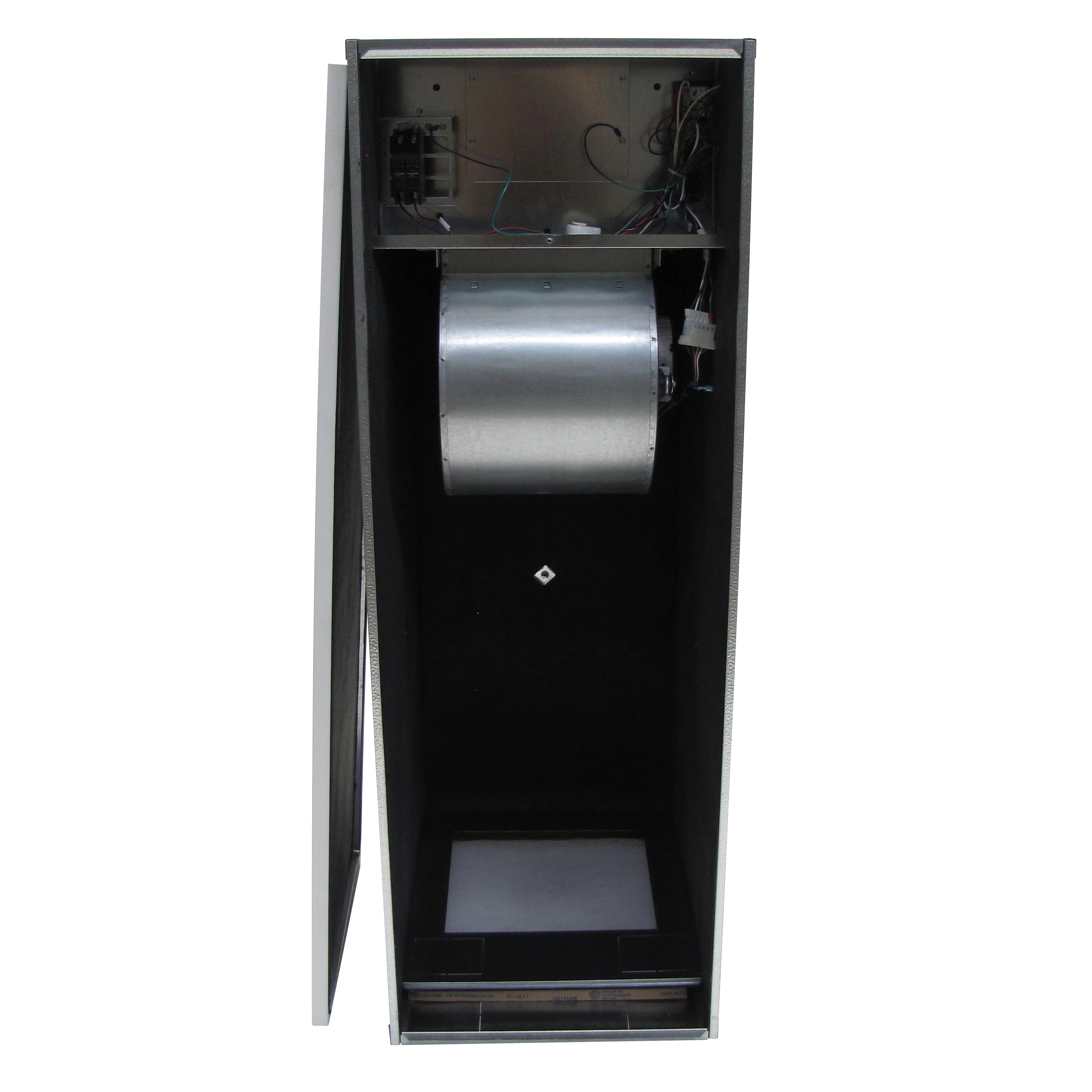

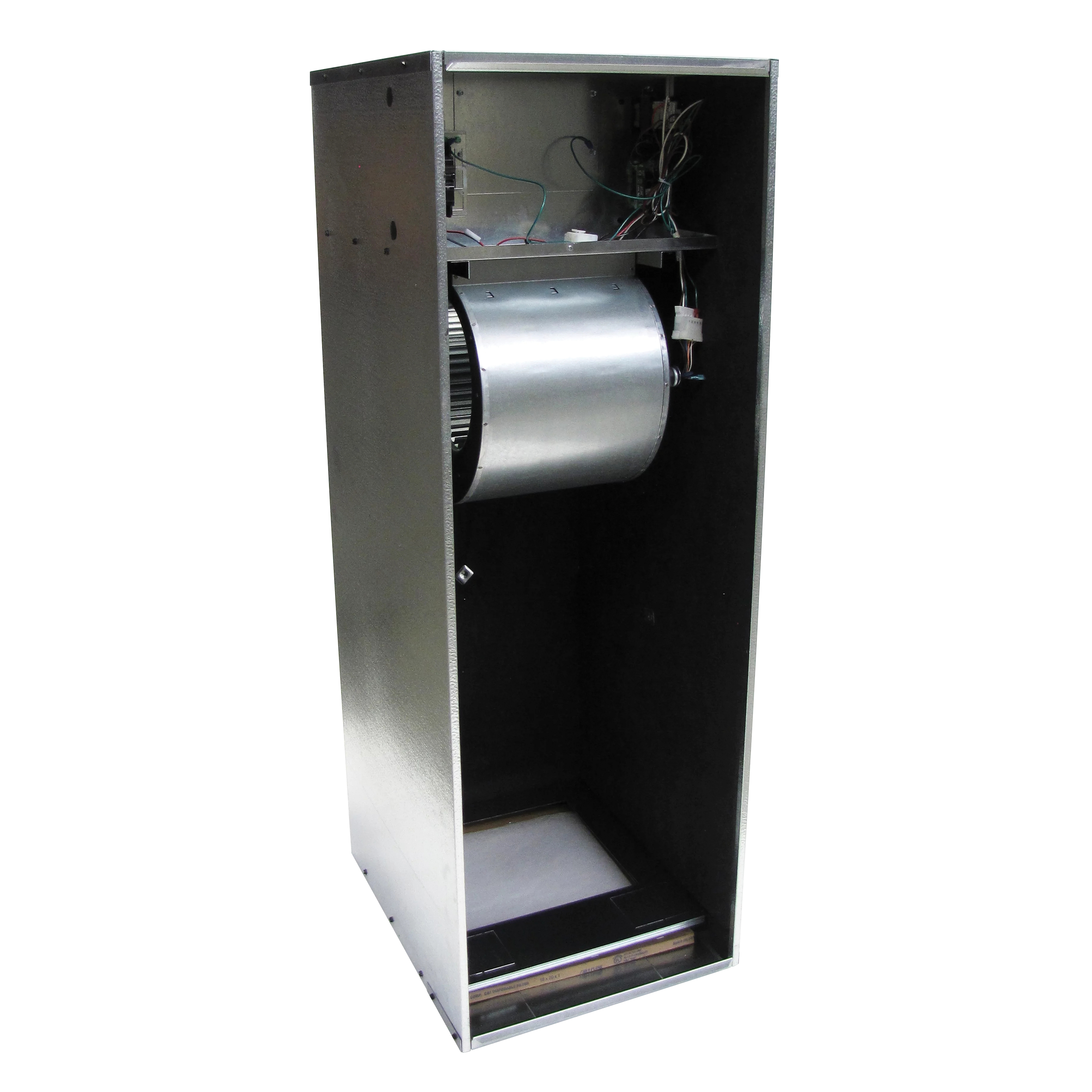

- Rail-mounted blower assembly easily removed for service
- Redesigned control panel for enhanced interface to wiring and components
- Sloped coil shelf for optimal condensate management
