Aprilaire® 8145 APR 8145
  1. pin-int

Aprilaire® 8145 APR 8145

Aprilaire® 8145 Fresh Air Ventilator With Powered Damper and MERV 6 Washable Filter, 250 cfm Air Flow, 120 V

  • Manufacturer: Research Products
  • Brand Name: Aprilaire®
  • Part Number: APR 8145
  • MPN: 8145
  • UPC: 686720003349
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

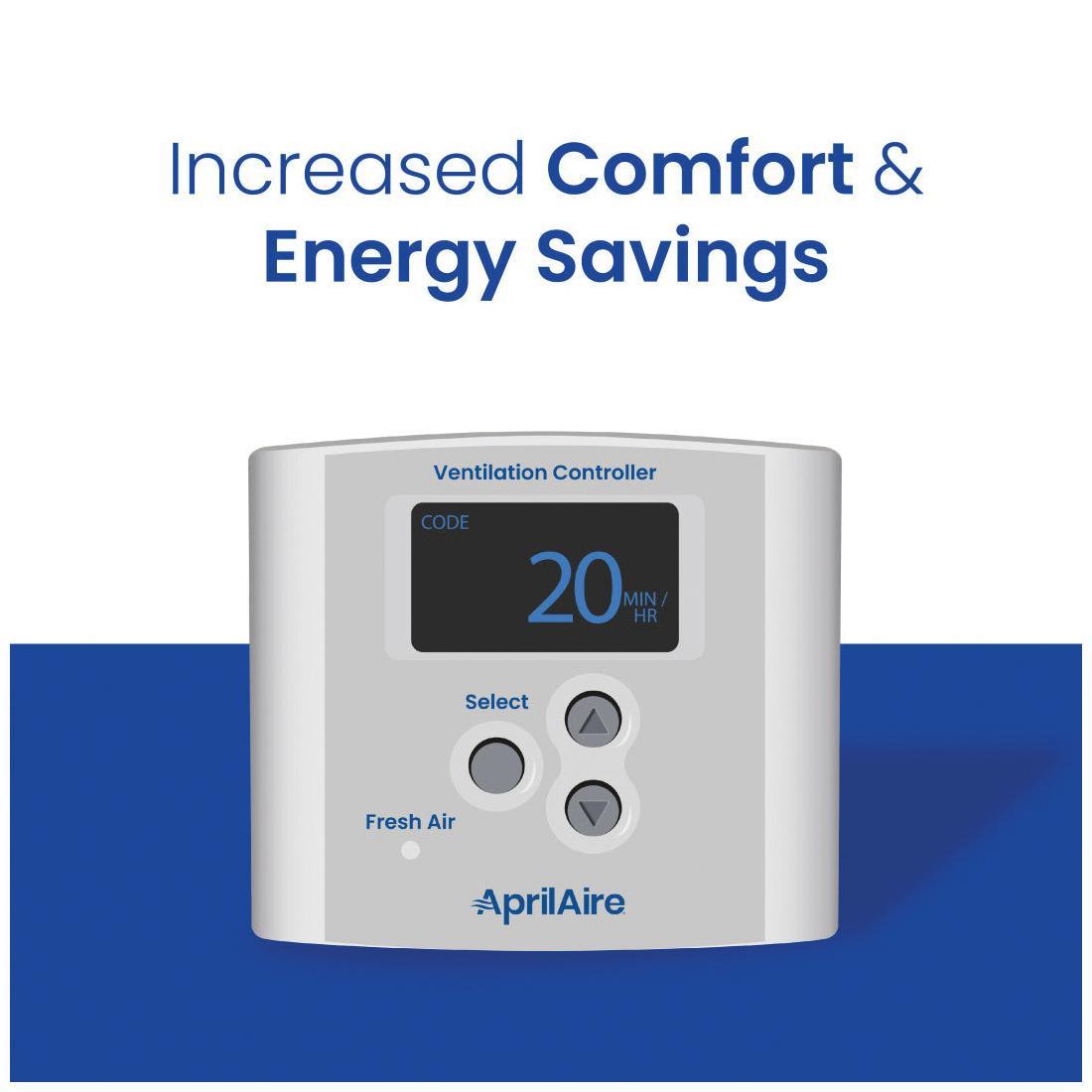

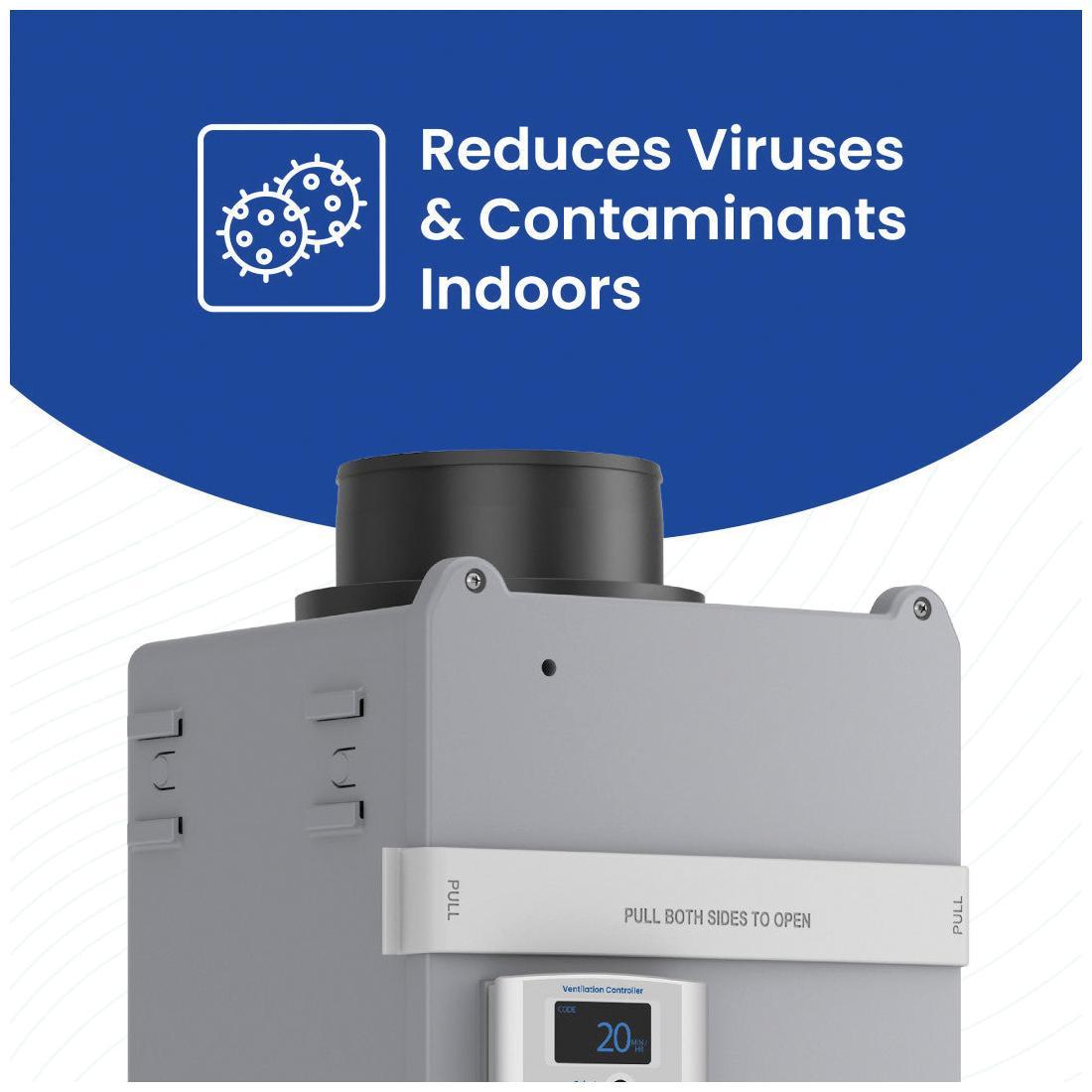

The Aprilaire® 8145 fresh air ventilator is designed to bring in precisely the right amount of outdoor air into today's efficient homes. Integrated controls allow the ventilator to be hardwired. Powered damper is removable.

Aprilaire® Fresh Air Ventilator With Powered Damper and MERV 6 Washable Filter, 250 cfm Air Flow Capacity, 120 V, 60 Hz, 1 ph, 50 to 53 W, 7500 sq-ft Coverage Area, 6 in Duct, Polycarbonate, Gray, Ceiling, Wall Mounting, 85 to 105 deg F, 45 to 70 % Humidity Rating, 12-1/4 in Length, 11-3/4 in Width, 23-2/5 in Height

Air Flow Capacity      :      250 cfm
Color      :      Gray
Coverage Area      :      7500 sq-ft
Duct Size      :      6 in
Frequency Rating      :      60 Hz
Height      :      23-2/5 in
Humidity Rating      :      45 to 70 %
Length      :      12-1/4 in
Material      :      Polycarbonate
Mounting Type      :      Ceiling, Wall
Phase      :      1 ph
Power Rating      :      50 to 53 W
Temperature Rating      :      85 to 105 deg F
Voltage Rating      :      120 V
Width      :      11-3/4 in
  • Lightweight design, snap-on mounting brackets make install quick and easy

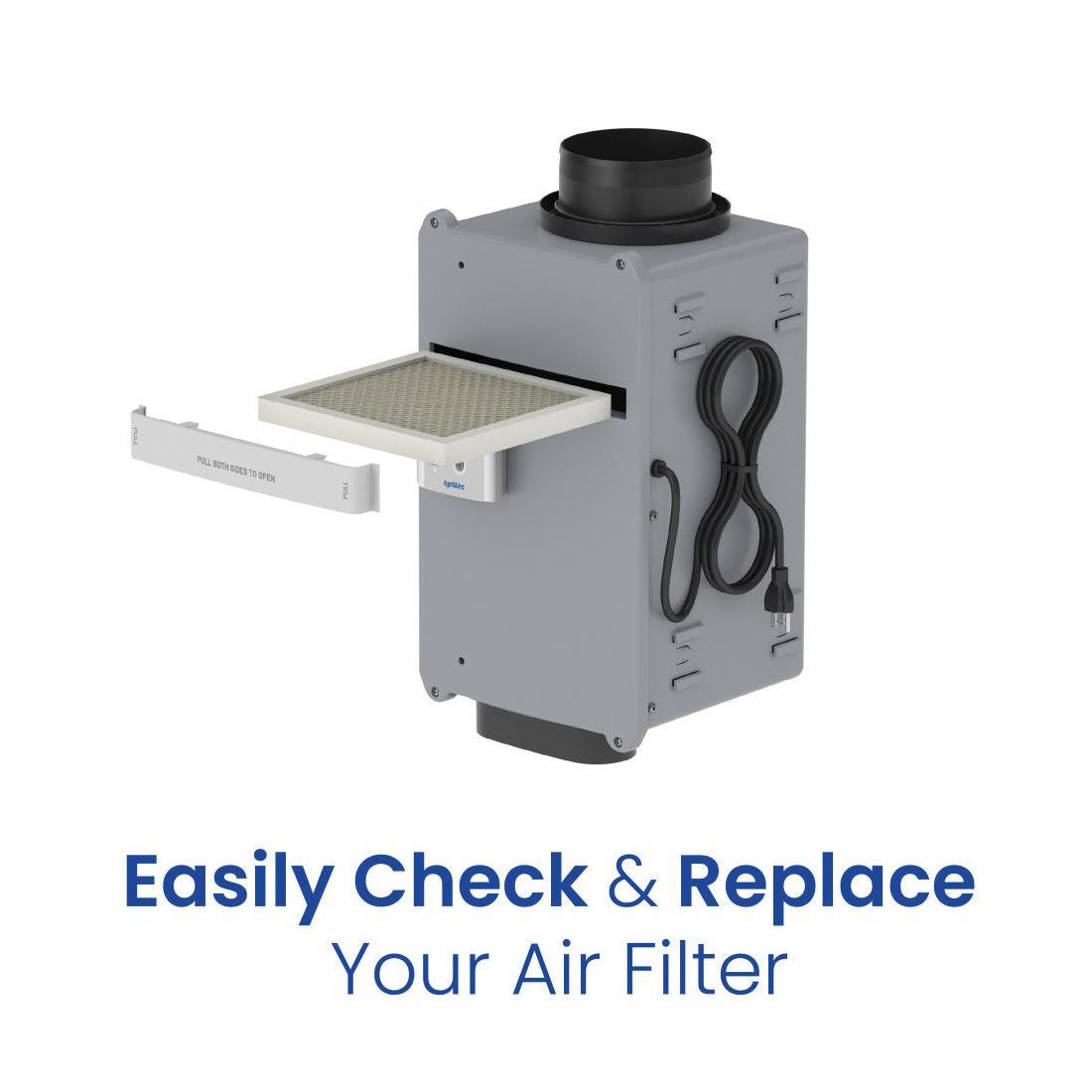

  • The 8145 ventilator's construction provides for easy access to quickly view and replace filter
  • Durable construction withstands jobsite abuse
  • Slim design for more maneuverability in attics and closets
  • Better air exchange control and more benefits versus exhaust ventilation
  • Positive pressure, air exchange rate at 180 cfm
