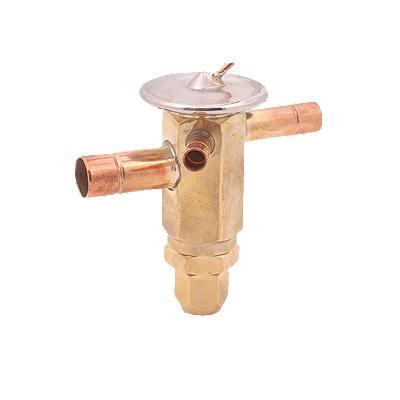

| Additional Information | : | Thermal Actuator, Straight-Thru Configuration, 53.2 psi Super Heat Setpoint Pressure, Sweat Type |
| Capillary Length | : | 36 in |
| Charge Type | : | AA |
| End Type | : | ODM |
| Housing Material | : | Stainless Steel |
| Inlet Size | : | 5/16 in |
| Nominal Capacity | : | 2.5 to 3 ton |
| Outlet Size | : | 5/8 in |
| Pressure Rating | : | 700 psi |
| Refrigerant Type | : | R-22 |
| Suitable For Use With | : | WSC120AWRGA2FA000A10000A0, WSC120AWRGA23D00000000000, WSC120A4R0A0M000000000600, WSC120AWRGA1LD0C100000600 Packaged Heat Pumps |
