American Standard® TERVR200A9P00A TERVR200A9P00A
  1. pin-int

American Standard® TERVR200A9P00A TERVR200A9P00A

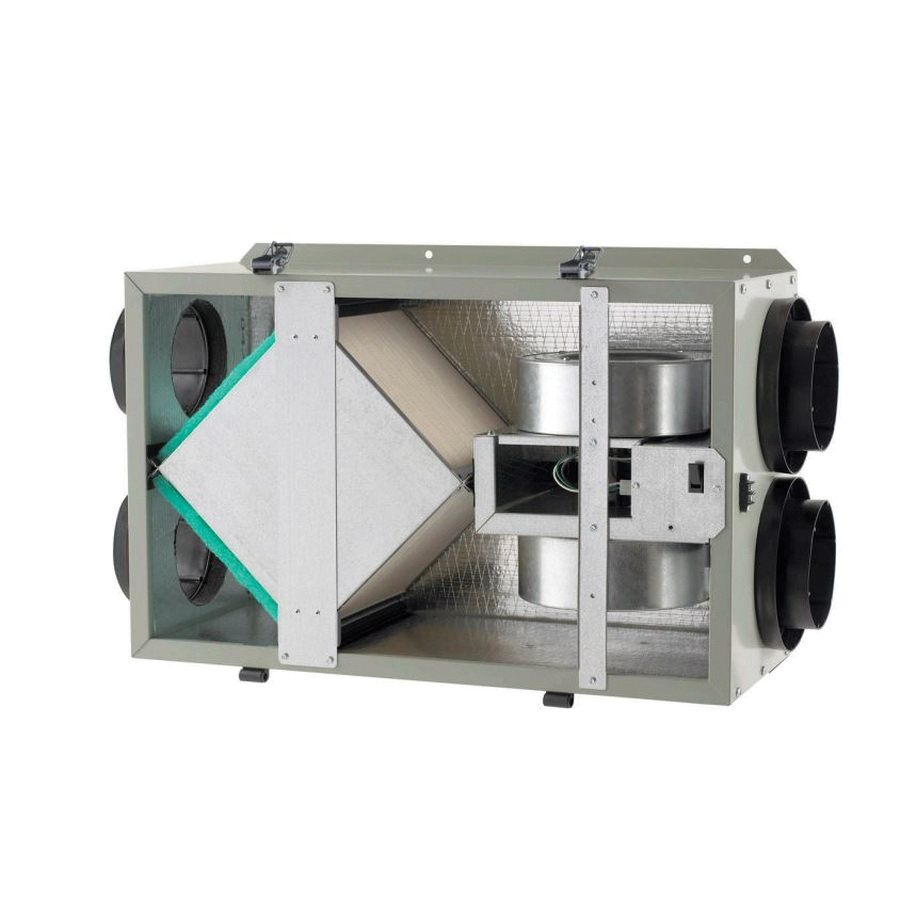

TRANE® FreshEffectsTM TERVR200A9P00A Energy Recovery Ventilator, 200 cfm Air Flow, 120 V, 15 A, Steel

  • Manufacturer: Trane International Inc
  • Brand Name: American Standard®
  • Part Number: TERVR200A9P00A
  • MPN: TERVR200A9P00A
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

TRANE® FreshEffectsTM Energy Recovery Ventilator, 200 cfm Air Flow Capacity, 15 A, 120 V, 60 Hz, 1-Phase, 1/11 hp, 8 in Duct, 1750 rpm, Steel, 28-3/4 in Length, 23-7/8 in Width, 20-1/8 in Height

Air Flow Capacity      :      200 cfm
Amperage Rating      :      15 A
Duct Size      :      8 in
Frequency Rating      :      60 Hz
HP Rating      :      1/11 hp
Height      :      20-1/8 in
Length      :      28-3/4 in
Material      :      Steel
Phase      :      1 ph
Speed Rating      :      1750 rpm
Voltage Rating      :      120 V
Width      :      23-7/8 in
  • FreshEffects™ ERV technology for all seasons and climates
  • Static plate energy transfer core for efficient transfer of heat and moisture
  • Passive defrost does not require condensate drain and provides lower installed cost and improves reliability
  • Multi position mounting for installation flexibility
  • FreshEffects™ ERV airflow design does not require installation of balancing dampers reducing installation and start up time
  • Percent Timer (PT) control included with ERV for simple, automatic operation
  • Optional push button control accessory provides manual override at point of use
  • Cam action latches and hinged access doors provide quick access for maintenance and service.
  • Heavy gauge, powder painted steel cabinet provides durability and matches the system appearance
  • Permanently lubricated motor bearings for long life
  • Standard 34" power cord with ground plug for easy installation
  • Double duct collars (6" & 8")for connection of flexible or rigid ductwork for TERVR100 and 200
  • 8" round compatible duct connection for TERVR300
  • Cabinet wall and doors have 1" cleanable, foil face, high density board insulation, with 1/4" foam insulation on access panel for thermal and sound insulation
  • ERV cabinet / door color: Polyslate Gray/ Tarpaulin Gray
  • 5 year limited warranty on parts
  • 10 year limited warranty on energy transfer core
  • Optional 5 and 10 year extended warranties
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/TRANE_TERVR200A9P00A_Specification_Sheet.pdf
