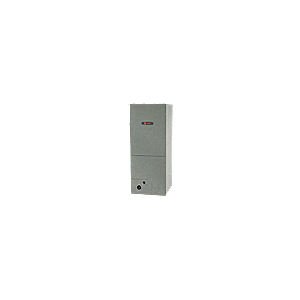

American Standard® TEM4A0C48S41SC TEM4A0C48S41S^
TRANE® TEM4A0C48S41SC Air Handler, 48000 Btu/hr BTU, 1600 cfm, 208/230 V, 6 A, 3/4 hp, 60 Hz, 1 ph-Phase
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: TEM4A0C48S41S^
- MPN: TEM4A0C48S41SC
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
TRANE® Air Handler, 4 ton Nominal Capacity, 48000 Btu/hr, 208/230 V, 6 A, 3/4 hp, 60 Hz, 1-Phase, 1050 rpm Rotational Speed, 1600 cfm, 4-Way, Multi-Position, Brazed Connection, R-410A Refrigerant, 15 A Fuse Rating, 3/8 in Liquid Line, 7/8 in Suction Line, 3 Speed, ECM Motor, Metal, Finish: Painted, 51-3/8 in H x 23-1/2 in W x 21-1/8 in D
| Amperage Rating | : | 6 A |
| BTU Rating | : | 48000 Btu/hr |
| CFM Rating | : | 1600 cfm |
| Configuration | : | 4-Way, Multi-Position |
| Connection Type | : | Brazed |
| Dimensions | : | 51-3/8 in H x 23-1/2 in W x 21-1/8 in D |
| Finish | : | Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HP Rating | : | 3/4 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Metal |
| Motor Type | : | ECM |
| Nominal Capacity | : | 4 ton |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1050 rpm |
| Suction Line Size | : | 7/8 in |
| Voltage Rating | : | 208/230 V |
