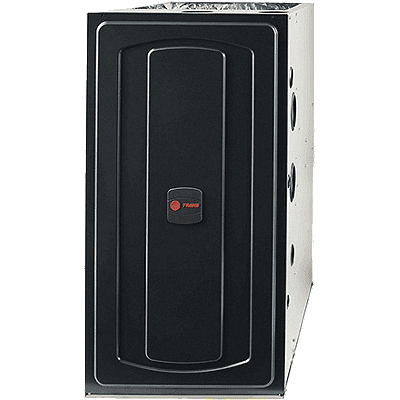

American Standard® S9B1C100U5PSAB S9B1C100U5PS^
TRANE® S9B1 Series S9B1C100U5PSAB Gas Furnace, 120 V, 1 hp, 92.1 % AFUE, Horizontal, Upflow, LP Gas, Natural Gas
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: S9B1C100U5PS^
- MPN: S9B1C100U5PSAB
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
TRANE® Gas Furnace, S9B1 Series, Input BTU Rating: 100000 Btu/hr, Output BTU Rating: 97400 Btu/hr, 120 V, 10.6 A, 1 hp, 92.1 % AFUE Rating, 1-Phase, 60 Hz, 1 Stages, Horizontal, Upflow, LP Gas, Natural Gas Fuel, 9 Speed, Blower Size: 11 x 10 in, 34 in H x 21 in W x 28-3/4 in D Cabinet, ECM Motor, 1075 rpm Rotational Speed, Vent, Ducted or Ductless: Vent, 2 in Vent, 15 A Fuse Rating, Tonnage: 8 ton, SiNi Ignition, 40 to 70 deg F Temperature Rise
| AFUE Rating | : | 92.1 % |
| Amperage Rating | : | 10.6 A |
| Blower Size | : | 11 x 10 in |
| Cabinet Dimensions | : | 34 in H x 21 in W x 28-3/4 in D |
| Configuration | : | Horizontal, Upflow |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | LP Gas, Natural Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1 hp |
| Ignition Type | : | SiNi |
| Input BTU Rating | : | 100000 Btu/hr |
| Motor Type | : | ECM |
| Number of Speeds | : | 9 |
| Number of Stages | : | 1 |
| Output BTU Rating | : | 97400 Btu/hr |
| Phase | : | 1 ph |
| Rotational Speed | : | 1075 rpm |
| Series | : | S9B1 Series |
| Temperature Rise | : | 40 to 70 deg F |
| Tonnage | : | 8 ton |
| Vent Size | : | 2 in |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 120 V |
