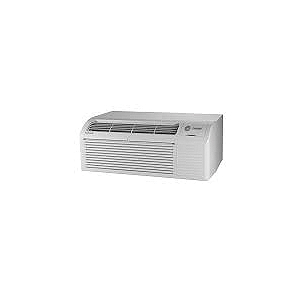

American Standard® PTHG1501HAA PTHG1501HAA
TRANE® ProSpace™ PTHG PTHG1501HAA PTAC Heat Pump With Electric Heat, 208-230 V, 15000 Btu/hr Cooling
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: PTHG1501HAA
- MPN: PTHG1501HAA
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The ProSpace™ Packaged Terminal Air Conditioners and heat pumps provide a high standard of quality in performance, workmanship, durability, and appearance as they heat and cool the occupied air space year round. This manual provides information for ease of installation, operation and maintenance. All models are designed for through-the-wall installation. Separate installation instructions are included with all accessory components. Read this manual completely and carefully before starting any work. Write down the model and serial number on the space provided on the product registration card. Locate the model and serial number on the serial number plate attached to the unit. These numbers are required for any service work.
TRANE® ProSpace™ PTAC Heat Pump, Model: PTHG, 208-230 V, 6.5 A, 5 kW, 60 Hz, 1-Phase, 15000 Btu/hr Cooling, 13800 Btu/hr Heating, 341 cfm Flow Rate, 10.4 EER Rating, 3.17 pt/hr Dehumidification Rating, 226 to 334 sq-ft Coverage Area, R-32 Refrigerant, 53 dB Sound Level, Additional Information: 1.25 ton Capacity
| Additional Information | : | 1.25 ton Capacity |
| Amperage Rating | : | 6.5 A |
| Cooling BTU Rating | : | 15000 Btu/hr |
| Coverage Area | : | 226 to 334 sq-ft |
| Dehumidification Rating | : | 3.17 pt/hr |
| EER Rating | : | 10.4 |
| Flow Rate | : | 341 cfm |
| Frequency Rating | : | 60 Hz |
| Heating BTU Rating | : | 13800 Btu/hr |
| Model | : | PTHG |
| Phase | : | 1 ph |
| Power Rating | : | 5 kW |
| Refrigerant Type | : | R-32 |
| Sound Level | : | 53 dB |
| Voltage Rating | : | 208-230 V |
Instruction/Installation Manual
