American Standard® MOT18820 MOT18820

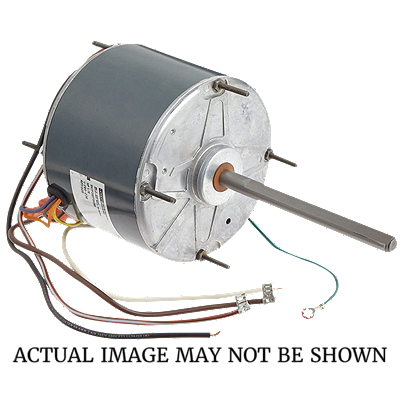

American Standard® MOT18820 Condenser Fan Motor, 1 hp, 208-230/460 V, 1 -Phase, 48 Frame, 1140 rpm Speed
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: MOT18820
- MPN: MOT18820
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
American Standard® Condenser Fan Motor, 1 hp, 208-230/460 V, 1 ph, 1140 rpm, 1 Speed, Totally Enclosed Air Over Enclosure, 48 Frame, 0.625 in Dia x 4.44 in L Shaft, Additional Information: Clockwise/Counter-Clockwise Rotation
| Additional Information | : | Clockwise/Counter-Clockwise Rotation |
| Body Length | : | 6.312 |
| Design Torque | : | 70 Oz-ft at 460V |
| Enclosure Type | : | Totally Enclosed Air Over |
| Flat Length (In) | : | 2.98 |
| Frame Size | : | 48 |
| Frame | : | 48 |
| HP (Decimal) | : | 1 |
| HP (Fraction) | : | 1 |
| HP Rating | : | 1 hp |
| Motor Length (IN) | : | 6.312 |
| Number of Phase | : | 1 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Rotation | : | CW / CCW |
| Shaft Diameter (In) | : | 0.625 |
| Shaft Length (In) | : | 4.44 |
| Shaft Size | : | 0.625 in Dia x 4.44 in L |
| Speed (RPM) | : | 1,200 |
| Speed Rating | : | 1140 rpm |
| Suggested Capacitor | : | 25.0 MFD/370V AC |
| Voltage (VAC) | : | 380 to 415/460 |
| Voltage Rating | : | 208-230/460 V |
| Wire Length (in) | : | 110 |
