American Standard® MOT18456 MOT18456

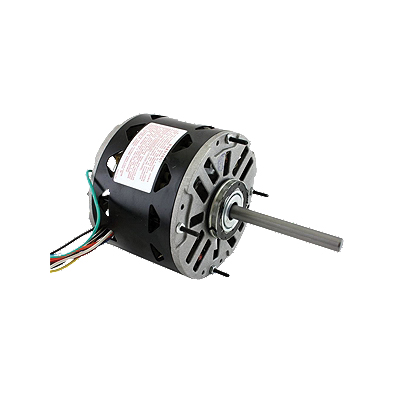

American Standard® MOT18456 Blower Motor, 1/2 hp, 208-230 V, 60 Hz, 1 -Phase, 48 Frame, 1050 rpm Speed
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: MOT18456
- MPN: MOT18456
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
American Standard® Blower Motor, 1/2 hp, 208-230 V, 60 Hz, 1 ph, 1050 rpm, 5 Speed, ODP Enclosure, 48 Frame, Ball Bearing, Belly Band Mounting, For Use With: TEM4A0C43M41SBA Convertible Air Handler Unit, Additional Information: Counter-Clockwise Rotation
| Additional Information | : | Counter-Clockwise Rotation |
| Bearing Type | : | Ball |
| Enclosure Type | : | ODP |
| Frame Size | : | 48 |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP (Decimal) | : | 0.5 |
| HP (Fraction) | : | 1/2 |
| HP Rating | : | 1/2 hp |
| Load Current (A) | : | 4.1 |
| Motor Type | : | AC, Constant Torque Blower |
| Mounting Type | : | Belly Band |
| NEMA Dimensions (In) | : | 5.6875 x 8.125 |
| New Long Description-500 | : | MOTOR, AC, CONSTANT TORQUE BLOWER, 5.6875IN DIAMETER, 8.125IN HEIGHT NEMA, 230VAC, 4.1A LOAD, 60HZ, 1 PH, 0.5HP, 5 SPEEDS, 48 FRAME, ECM TECHNOLOGY, CCW ROTATION, ELECTRONIC OVERLOAD PROTECTOR, BALL BEARING, BELLY BAND MOUNT, MEETS CSA, UL |
| New Short Description- 150 | : | MOTOR,AC,CONSTANT TORQUE BLOWER,5.6875IN DIA,8.125IN HT,230VAC,4.1A LOAD,60HZ,1 PH,0.5HP,5 SPEED,48 FRAME,ECM TECH,CCW ROTATION |
| Number of Phase | : | 1 |
| Number of Speeds | : | 5 |
| Phase | : | 1 ph |
| Protector Type | : | Electronic Overload |
| Rotation | : | CCW |
| Speed (RPM) | : | 1,050 |
| Speed Rating | : | 1050 rpm |
| Standards | : | CSA,UL |
| Suitable For Use With | : | TEM4A0C43M41SBA Convertible Air Handler Unit |
| Technology | : | ECM |
| Voltage (VAC) | : | 208 to 230 |
| Voltage Rating | : | 208-230 V |
