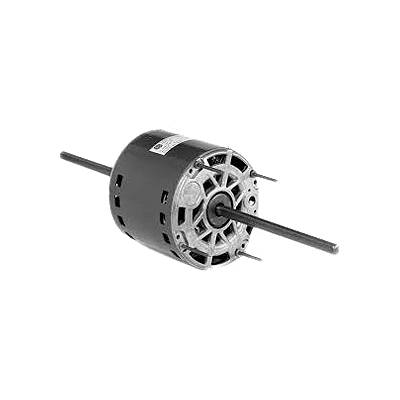

American Standard® MOT16315 MOT16315
American Standard® MOT16315 Condenser Fan Motor, 1 hp, 460 V, 1 -Phase, 48 Frame, 1125 rpm Speed
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: MOT16315
- MPN: MOT16315
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
American Standard® Condenser Fan Motor, 1 hp, 460 V, 1 ph, 1125 rpm, 1 Speed, TEFC Enclosure, 48 Frame, 0.625 in Dia x 3.71 in L Shaft, Vertical Shaft Up Mounting, Additional Information: Counter-Clockwise Rotation
| Additional Information | : | Counter-Clockwise Rotation |
| Body Length | : | 6.23 |
| Enclosure Type | : | TEFC |
| Flat Length (In) | : | 1.71 |
| Frame Size | : | 48 |
| Frame | : | 48 |
| HP (Decimal) | : | 0.75 to 1 |
| HP (Fraction) | : | 1 |
| HP Rating | : | 1 hp |
| Load Current (A) | : | 2.5 |
| Motor Cap | : | 25 UF at 440 V |
| Motor Type | : | Permanent Split Capacitor; AC; Air Over; Direct Drive |
| Mounting Type | : | Vertical Shaft Up |
| New Long Description-500 | : | MOTOR, AC, CONDENSER FAN, 460V AC, 2.5A LOAD CURRENT, 1HP, 1126RPM SPEED, 60HZ FREQUENCY, 1 PHASE, CCW ROTATION, PSC TECHNOLOGY, 70DEGC MAX TEMPERATURE, 1 SPEEDS, TENV ENCLOSURE, B INSULATION CLASS, BAND/THROUGH-BOLT MOUNT, OVERLOAD PROTECTOR, THERMAL PROTECTOR, 1 SERVICE FACTOR, SLINGER, 25UF AT 440V MOTOR CAPACITANCE, 0.5IN SHAFT DIAMETER, MEETS ROHS, FOR AIR CONDITIONING AND HEAT PUMP |
| New Short Description- 150 | : | MOTOR,AC,CONDENSER FAN,460V AC,2.5A LOAD,1HP,1126RPM,60HZ,1 PH,CCW ROTATION,PSC TECH,70DEGC MAX,1 SPEED,TENV ENCL,B INSUL,BAND/THROUGH-BOLT MTG,1 |
| Number of Phase | : | 1 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Protector Type | : | Overload |
| Rotation | : | CCW / LE |
| Shaft Diameter (In) | : | 0.625 |
| Shaft Length (In) | : | 3.71 |
| Shaft Size | : | 0.625 in Dia x 3.71 in L |
| Slinger | : | Yes |
| Speed (RPM) | : | 1,125; 950 |
| Speed Rating | : | 1125 rpm |
| Standards | : | ROHS |
| Suggested Capacitor | : | 25.0 MFD/440V AC |
| Technology | : | PSC |
| Thermal Protector | : | True |
| Type | : | AC |
| Voltage (VAC) | : | 380 to 415/460 |
| Voltage Rating | : | 460 V |
| Wire Length (in) | : | 96 |
