American Standard® MOT14039 MOT14039

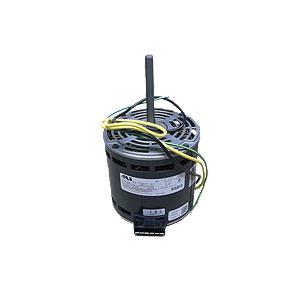

American Standard® MOT14039 PSC Blower Motor, 1/2 hp, 208 - 230 V, 60 Hz, 1 ph -Phase, 48 Frame, 1200 rpm Speed
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: MOT14039
- MPN: MOT14039
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
American Standard® PSC Blower Motor, 1/2 hp, 208 - 230 V, 2.7 A, 60 Hz, 1 ph Phase, 1200 rpm, 3 Speed, Open Air Over Enclosure, 48 Frame, 1/2 in Dia x 2-1/2 in L Shaft, 1 Service Factor, Sleeve Bearing, Belly Band Mounting, 50 to 130 deg F, Insulation Class: Class B, 5.6 in Overall Width, 9.31 in Overall Depth, 5.31 in Overall Height, For Use With: TAM4A0B42S31SBA, TAM4A0B42S31EDA, TAM4A0B42S31SAA, TAM4A0B42S31SDA Air Handlers, Additional Information: 10 uF at 370 V Motor Capacitor, CCW/LE Rotation
| Additional Information | : | 10 uF at 370 V Motor Capacitor, CCW/LE Rotation |
| Amperage Rating | : | 2.7 A |
| Bearing Type | : | Sleeve |
| Enclosure Type | : | Open Air Over |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Belly Band |
| Number of Speeds | : | 3 |
| Overall Depth | : | 9.31 in |
| Overall Height | : | 5.31 in |
| Overall Width | : | 5.6 in |
| Phase | : | 1 ph |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 2-1/2 in L |
| Speed Rating | : | 1200 rpm |
| Suitable For Use With | : | TAM4A0B42S31SBA, TAM4A0B42S31EDA, TAM4A0B42S31SAA, TAM4A0B42S31SDA Air Handlers |
| Temperature Rating | : | 50 to 130 deg F |
| Voltage Rating | : | 208 - 230 V |
