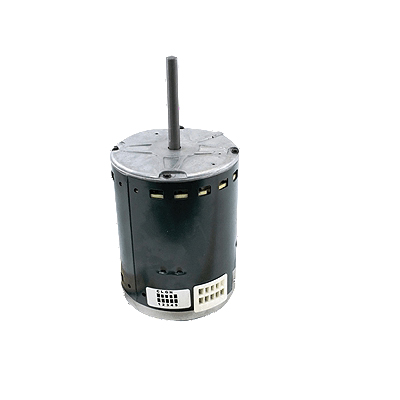

American Standard® MOT12700 MOT12700
American Standard® MOT12700 Blower Motor, 1 hp, 208-230 V, 60 Hz, 1 -Phase, 48 Frame, 1050 rpm Speed
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: MOT12700
- MPN: MOT12700
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
American Standard® Blower Motor, 1 hp, 208-230 V, 60 Hz, 1 ph, 1050 rpm, 1 Speed, Open Air Over Enclosure, 48 Frame, 0.5 in Dia x 3.92 in L Shaft, Ball Bearing, Additional Information: Clockwise Rotation
| Additional Information | : | Clockwise Rotation |
| Bearing Type | : | Ball |
| Enclosure Type | : | Open Air Over |
| Frame Size | : | 48 |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP (Decimal) | : | 1 |
| HP (Fraction) | : | 1 |
| HP Rating | : | 1 hp |
| Load Current (A) | : | 7.6 |
| Motor Type | : | AC |
| NEMA Dimensions (In) | : | 5.6875 x 8.125 |
| New Long Description-500 | : | MOTOR, AC, 230V AC, 7.6A LOAD CURRENT, 1HP, 1050RPM SPEED, 50/60HZ FREQUENCY, 1 PHASE, CW ROTATION, 48 FRAME, ECM TECHNOLOGY, 1 SPEEDS, OAO ENCLOSURE, B INSULATION CLASS, BALL BEARING, 1 SERVICE FACTOR, 0.5IN SHAFT DIAMETER, 3.92IN SHAFT LENGTH, 5.6875IN DIAMETER, 8.125IN HEIGHT NEMA DIMENSIONS, MEETS CSA, UL |
| New Short Description- 150 | : | MOTOR,AC,230V AC,7.6A LOAD,1HP,1050RPM,50/60HZ,1 PH,CW ROTATION,48 FR,ECM TECH,1 SPEED,OAO ENCL,B INSUL,BALL BRG,1,0.5IN SHAFT DIA,3.92IN SHAFT |
| Number of Phase | : | 1 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Rotation | : | CW |
| Shaft Diameter (In) | : | 0.5 |
| Shaft Length (In) | : | 3.92 |
| Shaft Size | : | 0.5 in Dia x 3.92 in L |
| Speed (RPM) | : | 1,050 |
| Speed Rating | : | 1050 rpm |
| Standards | : | CSA,UL |
| Technology | : | ECM |
| Voltage (VAC) | : | 208 to 230 |
| Voltage Rating | : | 208-230 V |
