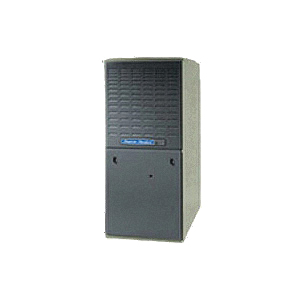

American Standard® AUD1A060A9241B AUD1A060A9241B
American Standard® AUD1A060A9241B Gas Furnace, 115 V, 1/5 hp, 80 % AFUE, Horizontal, Upflow, LP Gas, Natural Gas, Steel
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: AUD1A060A9241B
- MPN: AUD1A060A9241B
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
American Standard® Gas Furnace, Input BTU Rating: 60000 Btu/hr, Output BTU Rating: 47000 Btu/hr, 115 V, 5.4 A, 1/5 hp, 80 % AFUE Rating, 1-Phase, 60 Hz, 1 Stages, Horizontal, Upflow, LP Gas, Natural Gas Fuel, 3 Burners, 4 Speed, Blower Size: 10 x 6 in, 40 in H x 14-1/2 in W x 28 in D Cabinet, Direct Drive Motor, 1080 rpm Rotational Speed, Vent, Ducted or Ductless: Vent, 4 in Vent, 15 A Fuse Rating, Tonnage: 2 ton, Hot Surface Ignition, Steel, 35 to 65 deg F Temperature Rise
| AFUE Rating | : | 80 % |
| Amperage Rating | : | 5.4 A |
| Blower Size | : | 10 x 6 in |
| Cabinet Dimensions | : | 40 in H x 14-1/2 in W x 28 in D |
| Configuration | : | Horizontal, Upflow |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | LP Gas, Natural Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/5 hp |
| Ignition Type | : | Hot Surface |
| Input BTU Rating | : | 60000 Btu/hr |
| Material | : | Steel |
| Motor Type | : | Direct Drive |
| Number of Burners | : | 3 |
| Number of Speeds | : | 4 |
| Number of Stages | : | 1 |
| Output BTU Rating | : | 47000 Btu/hr |
| Phase | : | 1 ph |
| Rotational Speed | : | 1080 rpm |
| Temperature Rise | : | 35 to 65 deg F |
| Tonnage | : | 2 ton |
| Vent Size | : | 4 in |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 115 V |
Instruction/Installation Manual
