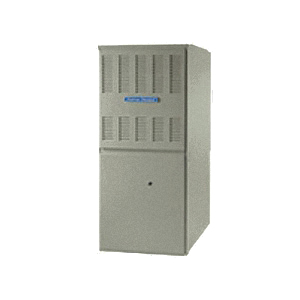

American Standard® AUC1B060A9361A AUC1B060A9361A
American Standard® AUC1B060A9361A Gas Furnace, 115 V, 1/3 hp, 92.1 % AFUE, Horizontal, Upflow, LP Gas, Natural Gas, Steel
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: AUC1B060A9361A
- MPN: AUC1B060A9361A
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
American Standard® Gas Furnace, Input BTU Rating: 60000 Btu/hr, Output BTU Rating: 56000 Btu/hr, 115 V, 8.4 A, 1/3 hp, 92.1 % AFUE Rating, 1-Phase, 60 Hz, 1 Stages, Horizontal, Upflow, LP Gas, Natural Gas Fuel, 3 Burners, 4 Speed, Blower Size: 10 x 7 in, 40 in H x 17-1/2 in W x 28 in D Cabinet, Direct Drive Motor, 1075 rpm Rotational Speed, Vent, Ducted or Ductless: Vent, 2 in Vent, 15 A Fuse Rating, Tonnage: 3 ton, Hot Surface Ignition, Steel, 30 to 60 deg F Temperature Rise
| AFUE Rating | : | 92.1 % |
| Amperage Rating | : | 8.4 A |
| Blower Size | : | 10 x 7 in |
| Cabinet Dimensions | : | 40 in H x 17-1/2 in W x 28 in D |
| Configuration | : | Horizontal, Upflow |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | LP Gas, Natural Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/3 hp |
| Ignition Type | : | Hot Surface |
| Input BTU Rating | : | 60000 Btu/hr |
| Material | : | Steel |
| Motor Type | : | Direct Drive |
| Number of Burners | : | 3 |
| Number of Speeds | : | 4 |
| Number of Stages | : | 1 |
| Output BTU Rating | : | 56000 Btu/hr |
| Phase | : | 1 ph |
| Rotational Speed | : | 1075 rpm |
| Temperature Rise | : | 30 to 60 deg F |
| Tonnage | : | 3 ton |
| Vent Size | : | 2 in |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 115 V |
Instruction/Installation Manual
