American Standard® 5TMM5B0A30M21S 5TMM5B0A30M21SA

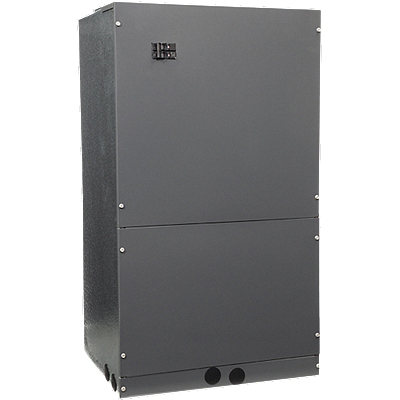

TRANE® 5TMM5 Series 5TMM5B0A30M21S Air Handler, 18000 to 30000 Btu/hr BTU, 995 cfm, 208/240 V, 2.4 A, 1/3 hp, 60 Hz
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: 5TMM5B0A30M21SA
- MPN: 5TMM5B0A30M21S
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
TRANE® Air Handler, 5TMM5 Series, 2.5 ton Nominal Capacity, 18000 to 30000 Btu/hr, 208/240 V, 2.4 A, 1/3 hp, 60 Hz, 1-Phase, 995 cfm, Upflow, R-454B Refrigerant, 15 A Fuse Rating, 3/8 in Liquid Line, 3/4 in Suction Line, 14 x 18 x 1 in Filter, CTM Motor, Wall Mounting, 36 in H x 20-1/2 in W x 15 in D
| Amperage Rating | : | 2.4 A |
| BTU Rating | : | 18000 to 30000 Btu/hr |
| CFM Rating | : | 995 cfm |
| Configuration | : | Upflow |
| Dimensions | : | 36 in H x 20-1/2 in W x 15 in D |
| Filter Size | : | 14 x 18 x 1 in |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/3 hp |
| Liquid Line Size | : | 3/8 in |
| Motor Type | : | CTM |
| Mounting Type | : | Wall |
| Nominal Capacity | : | 2.5 ton |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-454B |
| Series | : | 5TMM5 Series |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/240 V |
Instruction/Installation Manual
