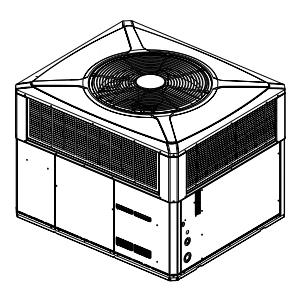

American Standard® 4WCY5060A1000A 4WCY5060^1000^
American Standard® 4WCY5060A1000A Single Packaged Heat Pump, 5 ton Nominal, 55000 Btu/hr Heating BTU, 208 to 230 VAC, 42.2 A
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: 4WCY5060^1000^
- MPN: 4WCY5060A1000A
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The XL15C packaged heat pump system delivers exceptional heating, cooling and quiet operation at 15.00 SEER/8.20 HSPF in 2 to 5 ton units. The durable components are assembled into one cabinet including a single-stage Climatuff® compressor.
American Standard® Single Packaged Heat Pump, 5 ton Nominal Capacity, 57500 Btu/hr Cooling, 55000 Btu/hr Heating, 208 to 230 VAC, 42.2 A, 4.45 kW, 1 hp HP Rating, 60 Hz, 1 ph, 830 rpm Rotational Speed, Scroll Compressor, CFM Rating: 1780 cfm, 15 SEER, HSPF: 8.4, 11.5 EER, FNPT Connection Type, 3/4 in Connection, R-410, 60 A Fuse, 74 dBA, Flush Mount, Direct Drive, 4-Rows, 5 sq-ft Inner Face Area, 2-Rows, 23.57 sq-ft Outer Face Area Coil, 15 FPI, 24 FPI Fins per Inch, 5.3 sq-ft Filter, Steel, Enamel, 115 deg F, 47 in W, Domestic, Additional Information: Expansion Valve Control Type
| Additional Information | : | Expansion Valve Control Type |
| Amperage Rating | : | 42.2 A |
| CFM Rating | : | 1780 cfm |
| Coil Rating | : | 4-Rows, 5 sq-ft Inner Face Area, 2-Rows, 23.57 sq-ft Outer Face Area |
| Compressor Type | : | Scroll |
| Configuration | : | Convertible |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT |
| Cooling BTU Rating | : | 57500 Btu/hr |
| Dimensions | : | 47 in W |
| Domestic/Import | : | Domestic |
| Drive Type | : | Direct |
| EER Rating | : | 11.5 |
| Filter Size | : | 5.3 sq-ft |
| Finish | : | Enamel |
| Fins per Inch | : | 15 FPI, 24 FPI |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 60 A |
| HP Rating | : | 1 hp |
| HSPF Rating | : | 8.4 |
| Heating BTU Rating | : | 55000 Btu/hr |
| Material | : | Steel |
| Mounting Type | : | Flush |
| Nominal Capacity | : | 5 ton |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410 |
| Rotational Speed | : | 830 rpm |
| SEER Rating | : | 15 |
| Series | : | 4WCY5 Series |
| Sound Level | : | 74 dBA |
| Temperature Rating | : | 115 deg F |
| Voltage Rating | : | 208 to 230 VAC |
| Wattage | : | 4.45 kW |
- Single packaged electric heat pumps are easy and versatile to install
- Single packaged electric heat pump systems are unmatched in quality and reliability
- Single packaged electric heat pump systems provide better performance
