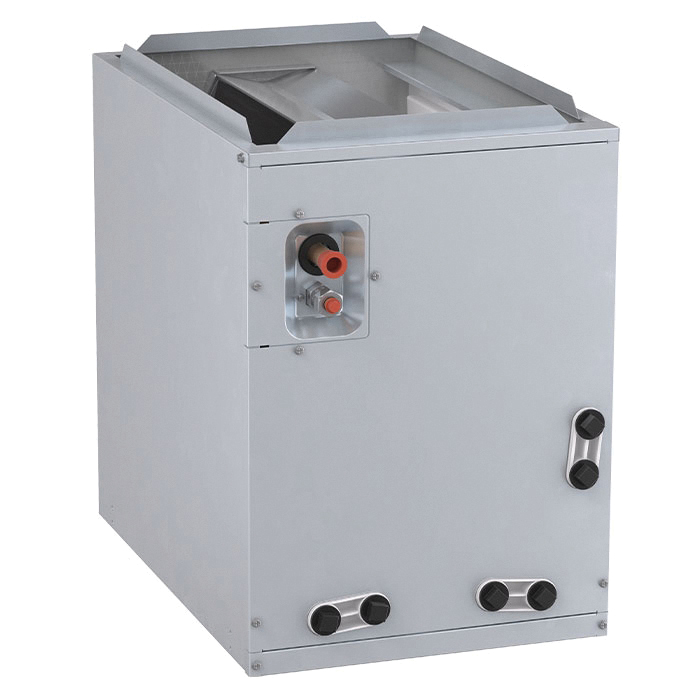

American Standard® 4MXCB006AC6HCB 4MXCB006AC6HC^
TRANE® 4MXC Series 4MXCB006AC6HCB Cooling and Heat Pump Evaporator Coil, Cased A, Direct Expansion Coil, 3 to 4 ton
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: 4MXCB006AC6HC^
- MPN: 4MXCB006AC6HCB
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The 4MXC is a 1.5-5 ton cased value model coil suitable for universal installations-up, down, horizontal, left, or right airflow. Also known as an evaporator coil or an indoor coil, this piece is the unsung hero of your heating or cooling system. Our all-aluminum coils are designed to work with your outdoor condensing unit or furnace. They are matched in size, efficiency and capacity to ensure optimal performance of your home comfort system. The coil serves as a heat exchanger-working with your heating system in the winter and your cooling system in the summer.
TRANE® Cooling and Heat Pump Evaporator Coil, 4MXC Series, Downflow, Left/Right, Upflow, 3/4 in NPT Drain Pan, Tonnage: 3 to 4 ton, 1 Stages, R-410A Refrigerant, Cased A, Direct Expansion Coil, 9/32 in Connection, Tube Connection, 4 Rows, 5.01 sq-ft Face Area, Aluminum, 26 in L x 17-1/2 in W x 21 in D
| Coil Type | : | Cased A, Direct Expansion |
| Configuration | : | Downflow, Left/Right, Upflow |
| Connection Size | : | 9/32 in |
| Connection Type | : | Tube |
| Dimensions | : | 26 in L x 17-1/2 in W x 21 in D |
| Drain Pan Size | : | 3/4 in NPT |
| Face Area | : | 5.01 sq-ft |
| Material | : | Aluminum |
| Number of Rows | : | 4 |
| Number of Stages | : | 1 |
| Refrigerant Type | : | R-410A |
| Series | : | 4MXC Series |
| Tonnage | : | 3 to 4 ton |
- Single stage equipment only
- Fixed orifice
- TXV kit available for expanded ratings and applications
- All aluminum to prevent formicary corrosion
