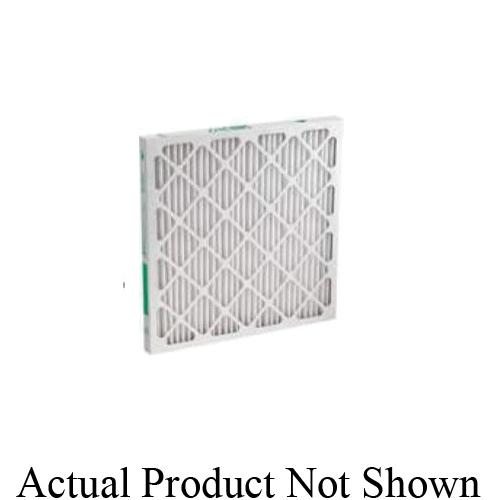

Airguard® 0474602 FILTER 16254PLEAT

Airguard® XTREME+PLUS® 0474602 High Capacity Self-Supported Filter, Pleated Filter, 16 in W, 25 in H, 4 in D

  • Manufacturer: PARKER HANNIFIN CORP
  • Brand Name: Airguard®
  • Part Number: FILTER 16254PLEAT
  • MPN: 0474602
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Airguard® XTREME+PLUS® HC (high-capacity) self-supported pleated (SSP) air filters are specially designed for high-performance and extended service life in HVAC or process air applications with low or medium dust holding requirements. All XTREME+PLUS® HC filters achieve MERV 8 3 8 mechanical efficiency and feature a state of the art media pack surrounded by a single piece, beverage board die-cut frame. The filters can endure impact and deformation and return to their original shape, saving users time and money that is often wasted on replacing damaged wire backed filters. With over 250 adhesion points between the media and the frame, the XTREME+PLUS® HC resists movement, bunching and collapsing during operation thus supporting a consistent low pressure drop, balanced dust loading and extended service life. With no metal to warp or deform and rugged self-supported pleat technology, the filters are capable of maintaining their structural integrity even in humid or wet conditions. XTREME+PLUS® HC pleated air filters are not recommended for use in applications with high-temperatures or turbulent airflow conditions.

Airguard® High Capacity Self-Supported Filter, Pleated Filter, Synthetic Media, Beverage Board Frame, 16 in Width, 25 in Height, 4 in Depth, MERV 8 MERV, 70 % Filter Efficiency, 18.8 sq-ft Media Area, 11 Pleats per Linear Feet, 500 fpm Rated Velocity, 0.15 in-WG Initial Resistance, 1 in-WG Final Resistance, 1400 cfm Air Flow Capacity, 24-1/2 in H x 15-1/2 in W x 3-3/4 in D Actual, 150 deg F

Actual Size      :      24-1/2 in H x 15-1/2 in W x 3-3/4 in D
Air Flow Capacity      :      1400 cfm
Depth      :      4 in
Filter Efficiency      :      70 %
Filter Type      :      Pleated
Final Resistance      :      1 in-WG
Frame Material      :      Beverage Board
Height      :      25 in
Initial Resistance      :      0.15 in-WG
MERV      :      MERV 8
Media Area      :      18.8 sq-ft
Media Material      :      Synthetic
Pleats per Linear Feet      :      11
Rated Velocity      :      500 fpm
Temperature Rating      :      150 deg F
Width      :      16 in
  • Self-supported media - no metal wire backing, means no corrosion or deformation of metal
  • Consistent pleat shape and spacing allow particulates to collect evenly over the entire surface of the media
  • Pleat stabilizer straps add rigidity and maintain proper pleat spacing
  • Over 250 adhesion points between the media and the frame
  • 100% synthetic media is resistant to moisture, mold and mechanical damage
  • Fully incinerable, environmentally friendly disposal
