The HE Series premier evaporator coils match perfectly with any system, providing an upgrade over standard matched coils.

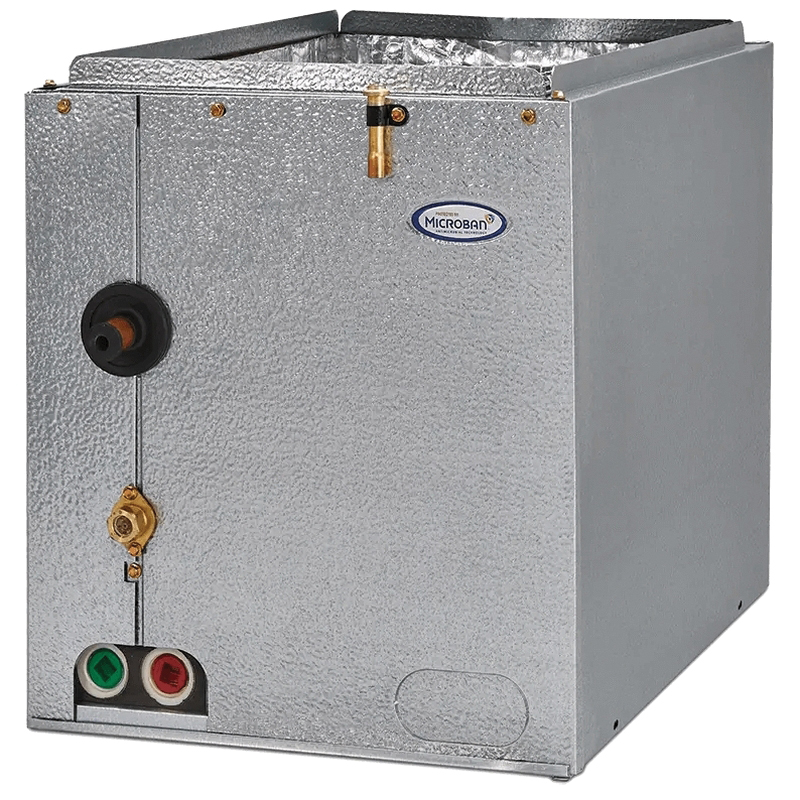

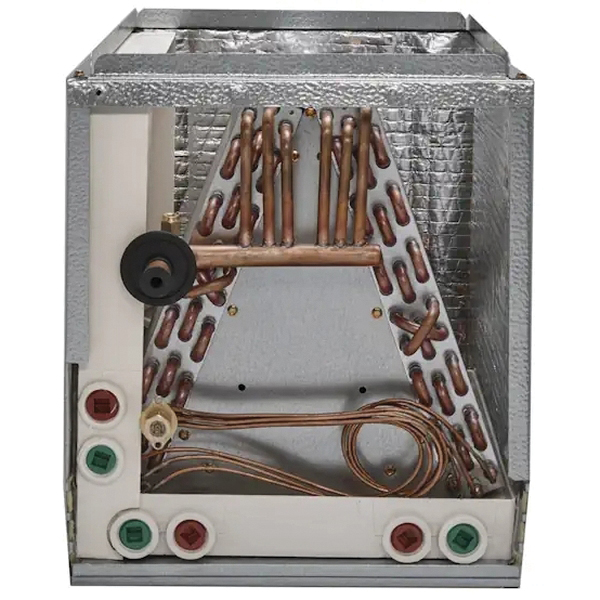

ADP® Evaporator Coil, HE Series, 36000 Btu/hr Nominal Capacity, Left-Hand Cased Multi-Position, R-410A Refrigerant, Aluminum, 20-1/2 in H x 17-1/2 in W x 20-1/2 in D, Additional Information: Non-Bleed HP-A/C TXV Metering Device, 3/4 in Cabinet Upper Notch, TXV Access Port
| Additional Information | : | Non-Bleed HP-A/C TXV Metering Device, 3/4 in Cabinet Upper Notch, TXV Access Port |
| Configuration | : | Left-Hand Cased Multi-Position |
| Dimensions | : | 20-1/2 in H x 17-1/2 in W x 20-1/2 in D |
| Material | : | Aluminum |
| Nominal Capacity | : | 36000 Btu/hr |
| Refrigerant Type | : | R-410A |
| Series | : | HE Series |
- High efficiency lanced fin design
- "No-hassle" 5 year warranty. 10 year Limited Warranty available
- R-22, R-410A, AC & Heat Pump compatible
- All coils have durable packaging with bar coded labels on the box
- Threaded expansion valves available factory installed or as a field installed kit
- Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air
- Piston options include externally accessible body for easy piston change out and/or TXV installation
- Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan
- UV resistant drain pans are molded of high temperature (450 deg. F) engineered polymer
- Dual 3/4" FPT condensate drains on front-left and front-right side of drain pans
- Patented HydroTEC™ low water retention drain pan
- Copper refrigerant connections for easy brazing on both copper and aluminum slab models
- Intertek lab tested 1% or less cabinet air leakage for better efficiency
- Cased coil cabinets are fully lined with 5/8" foil faced insulation
- Optional painted or embossed galvanized steel cabinets
- Short cabinet with easy access
- Non-captive refrigerant lines with long stubs make for easy installation
- Enhanced refrigerant pipe grommets: secure, tight, and easy to install
- Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV
- Multi-position coils are upflow, left or right airflow capable
