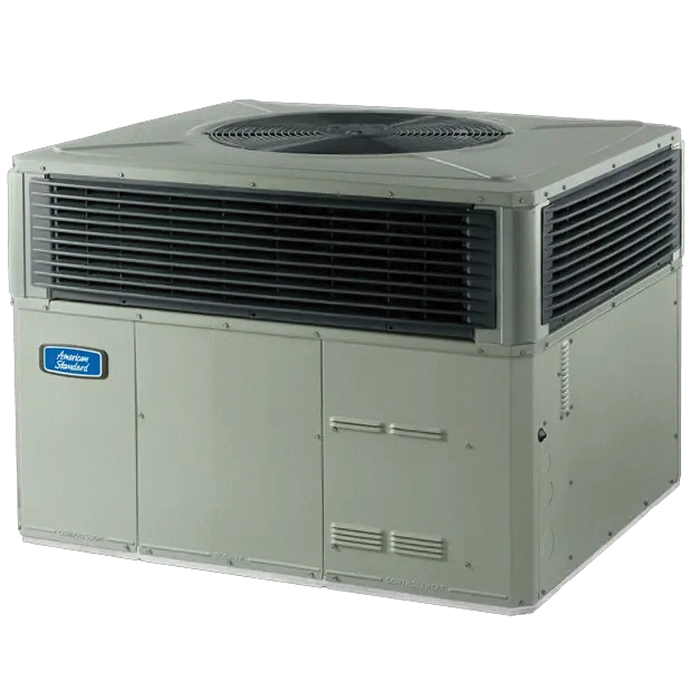

American Standard® 5WCC4042A1000A 5WCC4042^1000^
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part Number: 5WCC4042^1000^
- MPN: 5WCC4042A1000A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Check Branch Availability
-
Price:
| Amperage Rating | : | 31 A |
| CFM Rating | : | 1438 cfm |
| Coil Rating | : | 20.54 sq-ft Face Area Outdoor, 5 sq-ft Face Area Indoor |
| Compressor Type | : | Scroll |
| Configuration | : | Convertible |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT |
| Cooling BTU Rating | : | 42000 Btu/hr |
| Dimensions | : | 50 in H x 62 in W x 47 in D |
| Drive Type | : | Direct |
| Finish | : | Enamel |
| Fins per Inch | : | 24 FPI Outdoor, 15 FPI Indoor |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 45 A |
| HP Rating | : | 1/4 hp |
| Heating BTU Rating | : | 39000 Btu/hr |
| Material | : | Steel |
| Nominal Capacity | : | 3.5 ton |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 825 rpm |
| SEER Rating | : | 14 |
| Series | : | Silver 14 Series |
| Sound Level | : | 71.5 dB |
| Temperature Rating | : | 55 to 115 deg F |
| Voltage Rating | : | 208-230 V |
| Wattage | : | 3.65 kW |
