Indoor Gas Furnaces

S9V2-VS

GOLD S9V2-VS

The Gold S9V2-VS furnace is more efficient in both heating and cooling, offers quiet operation, and maintains the DNA that American Standard is known for: quality and reliability. The S9V2 is rated at 97% gas efficiency (AFUE) providing energy savings in both winter AND summer. The S9V2-VS furnace includes a variable speed draft inducer.  With stainless steel primary and secondary heat exchangers you can count on a consistent flow of warm, comfortable air with quiet operation.

UP TO 97% AFUE

  • Variable-speed ECM blower motor
  • Comfort-R™ mode
  • Variable-speed draft inducer
  • Single or two pipe vent options
  • 40–120 mbth input
  • Two-stage heat
  • Compatible with 1-stage, 2-stage, and variable speed OD equipment
  • Dry contact Humidifier and EAC terminals
  • Fully insulated/gasketed
  • Silicon nitride ignitor
  • Standard 34″ height
  • IFC board with digital configuration, status and fault codes
  • Certified to 1% air leakage
  • ENERGY STAR® qualified
Show more
S9V2

GOLD S9V2

The Gold S9V2 furnace is more efficient in both heating and cooling, offers quiet operation, and maintains the DNA that American Standard is known for: quality and reliability. The S9V2 is rated at 96% gas efficiency (AFUE) providing energy savings in both winter AND summer. With stainless steel primary and secondary heat exchangers you can count on a consistent flow of warm, comfortable air with quiet operation.

96% AFUE

  • Variable-speed ECM blower motor
  • Comfort-R™ mode
  • Two-speed draft inducer
  • Single or two pipe vent options
  • 40–120 mbth input
  • Two-stage heat
  • Compatible with 1-stage, 2-stage, and variable speed OD equipment
  • Dry contact Humidifier and EAC terminals
  • Fully insulated/gasketed
  • Silicon nitride ignitor
  • Standard 34″ height
  • IFC board with digital configuration, status and fault codes
  • Certified to 1% air leakage
  • ENERGY STAR® qualified
down arrow
Show more
S9X2

GOLD S9X2

The Gold S9X2 furnace offers two stages of heat and a high-efficiency CTM blower motor for comfort in cold weather, while maintaining the DNA that American Standard is known for: quality and reliability. The S9X2 is rated at 96% gas efficiency (AFUE), providing energy savings and a consistent flow of warm, comfortable air in both winter AND summer.

UP TO 96% AFUE

  • High efficiency 5 speed constant torque ECM blower motor
  • Two-speed draft inducer
  • Single or two pipe vent options
  • 40–120 mbth input
  • Two-stage heat
  • Compatible with 2-stage OD equipment
  • Dry contact Humidifier and EAC terminals
  • Fully insulated/gasketed
  • Silicon nitride ignitor
  • Standard 34″ height
  • IFC board with digital configuration, status and fault codes
  • Certified to 1% air leakage
  • ENERGY STAR® qualified
down arrow
Show more
AUHM/ADHM

PLATINUM 95

Communicating technology in a fully modulating furnace for the ultimate comfort and greater efficiency. The advanced AccuLink™ II allows the Platinum 95 to constantly calibrate itself for optimal performance year after year. The Platinum 95 is rated with up to 97.3% efficiency (AFUE) and select furnace models are Energy Star qualified. A variable-speed blower motor adjusts speed to provide a consistent flow of warm, comfortable air with quiet operation.

COMMUNICATING
UP TO 97.3 AFUE

  • 60–120 mbth input
  • AccuLink™ II capability
  • Fully modulating gas valve
  • Three-wire connections
  • Variable-speed communicating ECM blower motor
  • Continuous Comfort-R™ mode
  • Single or two pipe vent options
  • Digital user interface for easy setup and diagnostics
  • Silicon nitride igniter
  • Variable-speed draft inducer
  • Certified to 2% air leakage
  • ENERGY STAR® qualified (Select models)
down arrow
Show more
S9X1

S9X1

The S9X1 furnace offers a high-efficiency constant torque ECM blower motor for comfort in cold weather, while maintaining the DNA that American Standard is known for: quality and reliability. The S9X1 is rated at up to 96% gas efficiency (AFUE), providing energy savings and a consistent flow of warm, comfortable air in both winter AND summer.

UP TO 96% AFUE

  • 40 – 120 mbth input
  • Single-stage heat
  • High efficiency 9 tap Constant Torque ECM motor
  • Single-speed draft inducer
  • Silicon nitride igniter
  • Fully insulated/gasketed
  • Single or two pipe vent options
  • IFC board with digital configuration, status and fault codes
  • Certified to 1% air leakage
  • ENERGY STAR® qualified
down arrow
Show more
L9X1

L9X1 (CALIFORNIA ONLY)

American Standard® Heating & Air Conditioning’s Ultra-Low NOx gas furnaces offer a new option for high efficiency heating performance that also reduces emissions of nitrogen oxides (NOx). Due to the impact of such greenhouse gases on the environment and climate change, some areas of California have begun to regulate residential gas furnace emissions. American Standard’s Ultra-Low NOx furnaces rank among the lowest emitting in the industry, while keeping your home comfortable in cooler weather.

UP TO 95.0% AFUE

    • Constant Torque Electronically Commutated Motor
    • Single-Stage Heating
    • Less than 2% Cabinet Air Leakage
    • Reliable Silicon Nitride Hot Surface Igniter
    • Durable, Insulated Cabinet
    • Tubular, Steel Heat Exchanger

California Only

down arrow
Show more
S9B1

S9B1

The S9B1 furnace offers a constant torque ECM blower motor for comfort in cold weather, while maintaining the DNA that American Standard is known for: quality and reliability. The S9B1 is rated at 92.1% gas efficiency (AFUE), providing energy savings and a consistent flow of warm, comfortable air in both winter AND summer.

92.1% AFUE

  • 40 – 120 mbth input
  • Single-stage heat
  • 9 tap Constant Torque ECM motor
  • Single-speed draft inducer
  • Silicon nitride igniter
  • Single or two pipe vent options
  • Stainless steel heat exchanger
down arrow
Show more

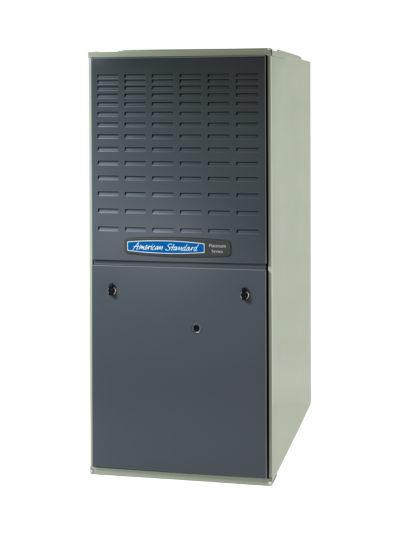

AUD2/ADD2

PLATINUM 80

Communicating technology for ultimate comfort and greater efficiency. The advanced AccuLink™ II allows the Platinum 80 to constantly configure itself for optimal performance year after year. With a 80% AFUE rating, the Platinum 80’s variable-speed fan motor adjusts speed to provide a consistent flow of warm, comfortable air with quiet operation.

COMMUNICATING
80% AFUE

  • 60–140 mbth input
  • AccuLink™ II
  • Continuous Comfort-R™ mode
  • Two-stage heat
  • Three-wire connections
  • Two-speed draft inducer
  • Silicon nitride igniter
  • Simplified American Standard AccuClean™ connections
  • Variable-speed communicating ECM blower motor
  • Digital user interface for easy setup and diagnostics
  • Certified to 2% air leakage
Show more
AUD2-9V/ADD2-9V

GOLD 80V

The consistently efficient Gold 80v variable-speed gas furnace is built to meet your home’s needs and designed to fit wherever you need it. A variable-speed fan motor adjusts speed to provide a consistent flow of warm, comfortable air with a rating of up to 80% AFUE.

80% AFUE

  • 60–140 mbth input
  • Two-stage heat
  • Variable-speed ECM blower motor
  • Comfort-R™ mode
  • Two-speed draft inducer
  • Silicon nitride igniter
  • Fully insulated/gasketed
  • Factory wired for humidifier and EAC
  • Certified to 2% air leakage
down arrow
Show more
S8X2

S8X2

The S8X2 furnace offers two stages of heat for comfort in cold weather, while maintaining the DNA that American Standard is known for: quality and reliability. The S8X2 is rated at 80% gas efficiency (AFUE), providing energy savings and a consistent flow of warm, comfortable air in both winter AND summer.

Two-stage furnaces can achieve more consistent temperatures throughout the home compared to a single-stage furnace.

80% AFUE

  • 40 – 140 mbth input
  • Two-stage heat
  • High Efficiency 9 tap Constant Torque ECM blower
  • Two-speed draft inducer
  • Silicon nitride igniter
  • Fully insulated*/gasketed
  • Aluminized steel heat exchanger
  • Factory wired for humidifier and EAC

* S8X1 & S8X2 models do not have insulation in the blower compartment on the 14.5″ models.



down arrow
Show more

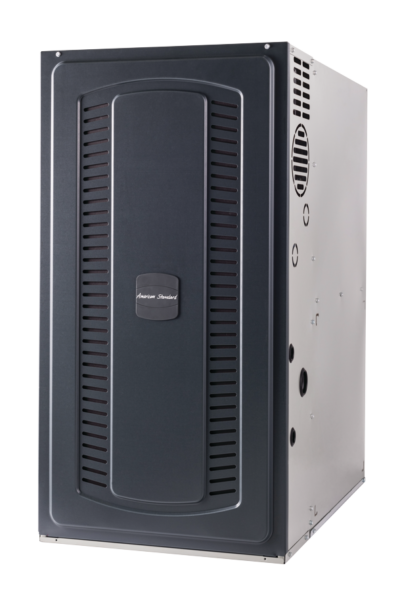

S8X1

S8X1

The S8X1 furnace offers single stage heat for comfort in cold weather, while maintaining the DNA that American Standard is known for: quality and reliability. The S8X1 is rated at 80% gas efficiency (AFUE), providing energy savings and a consistent flow of warm, comfortable air in both winter AND summer.

80% AFUE

  • 26 – 120 mbth input
  • Single-stage heat
  • High Efficiency 9 tap Constant Torque ECM Blower
  • Single-speed draft inducer
  • Silicon nitride igniter
  • Fully insulated*/gasketed
  • Humidifier and EAC terminals
  • Certified to 1% air leakage

* S8X1 & S8X2 models do not have insulation in the blower compartment on the 14.5″ models.

down arrow

S8X1

Show more
L8V1

L8V1 (CALIFORNIA ONLY)

American Standard® Heating & Air Conditioning’s Ultra-Low NOx gas furnaces offer a new option for high efficiency heating performance that also reduces emissions of nitrogen oxides (NOx). Due to the impact of such greenhouse gases on the environment and climate change, some areas of California have begun to regulate residential gas furnace emissions. American Standard’s Ultra-Low NOx furnaces rank among the lowest emitting in the industry, while keeping your home comfortable in cooler weather.

UP TO 80.0% AFUE

    • Variable Speed Blower Motor
    • Single-Stage Heating
    • Less than 1% Cabinet Air Leakage
    • Reliable Silicon Nitride Hot Surface Igniter
    • Durable, Insulated Cabinet
    • Tubular, Steel Heat Exchanger

California Only

Show more
L8X1

L8X1 (CALIFORNIA ONLY)

American Standard® Heating & Air Conditioning’s Ultra-Low NOx gas furnaces offer a new option for high efficiency heating performance that also reduces emissions of nitrogen oxides (NOx). Due to the impact of such greenhouse gases on the environment and climate change, some areas of California have begun to regulate residential gas furnace emissions. American Standard’s Ultra-Low NOx furnaces rank among the lowest emitting in the industry, while keeping your home comfortable in cooler weather.

UP TO 80.0% AFUE

    • Constant Torque Electronically Commutated Motor
    • Single-Stage Heating
    • Less than 1% Cabinet Air Leakage*
    • Less than 2% Cabinet Air Leakage**
    • Reliable Silicon Nitride Hot Surface Igniter
    • Durable, Insulated Cabinet
    • Tubular, Steel Heat Exchanger

California Only
* B060 & B080 Models
** A055, B070, & C100 Models

Show more
S8B1

S8B1

The S8B1 furnace offers single stage heat for comfort in cold weather, while maintaining the DNA that American Standard is known for: quality and reliability. The S8B1 is rated at 80% gas efficiency (AFUE), providing energy savings and a consistent flow of warm, comfortable air in both winter AND summer.

80% AFUE

  • 26 – 120 mbth input
  • Single-stage heat
  • 9 tap Constant Torque ECM blower
  • Single-speed draft inducer
  • Silicon nitride igniter
  • Certified to 1.4% air leakage
down arrow
Show more
AUE1/ADE1

AMERICAN STANDARD 80

The single-stage American Standard 80 heating furnace is designed to help meet your family’s needs, year after year. Because an American Standard 80 furnace is built to last with high-quality components for long lasting performance and reliability, your family can enjoy the benefits of a comfortable environment.

80% AFUE

  • 40–140 mbth input
  • Single-stage heat
  • PSC four-speed blower motor
  • Single-speed draft inducer
  • Silicon nitride igniter

Show more
