Indoor Air Quality Components

AFD

AMERICAN STANDARD ACCUCLEAN™ WHOLE HOUSE AIR CLEANER

Setting the standard in air quality, the American Standard AccuClean™ Air Cleaner uses revolutionary technology that supplies your home with a cleaner, healthier environment, allowing you to breathe easier – literally. Remove up to 99.98% of airborne particles with our air cleaner for your home and say goodbye to worrying about breathing in harmful bacteria or allergens.

Show more
EQBFM

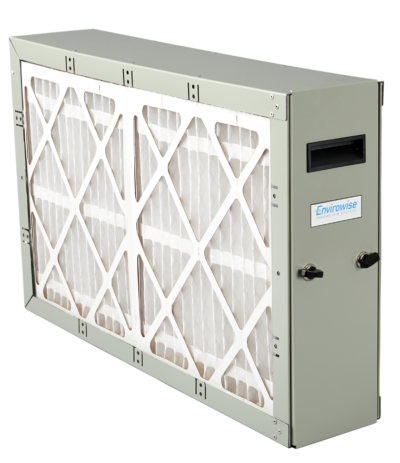

QUICKBOX MEDIA CABINET AND FILTERS

New QuikBox Media Filter Cabinet and MERV 11 media filter that replaces the TFM Perfect Fit Media Filter. Cabinet is a smaller height than TFM, has a fully insulted door, inside frame insulation to prevent cabinet sweating, and painted finish to match equipment. QuikBox cabinets come in 11 sizes to fit most of American Standard equipment dimensions without adding transitions.

Show more
BAYSF1165/1185/1235/1265

SLIMFIT FILTER

SlimFit Filter Cabinet and 1” MERV 4 pleated media filter. Fully insulated door and inside frame insulation to prevent cabinet sweating. Painted finish to match equipment. Hinged door for easy filter replacement. Designed for TEM Air Handler line and comes in 3 widths to match equipment footprint. Standard size filters for homeowner replacement.

  • 1” Pleated Filter, MERV 4 rated, lasts up to 90 days
  • Made-to-fit cabinet sizes for TEM Air Handlers and S9V and S9X furnace side return cabinets
  • 2” depth low profile painted steel cabinet with hinged door for easy filter replacement
Show more
EDHUM70V

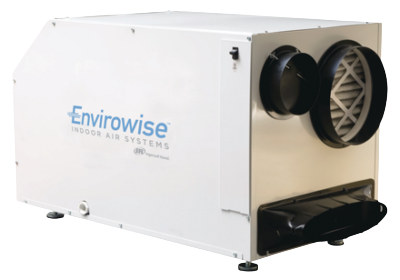

ENVIROWISE 70V DRY™ VENTILATING DEHUMIDIFIER

The Envirowise 70V Dry™ Ventilating Dehumidifier may be ducted with 100% outside air to have an efficient method of meeting ventilation needs without adding moisture to the inside air. With the flip of a switch, the 70V may change application to a ducted or stand-alone dehumidifier that removes moisture from the inside air. The 70V is a compact unit designed to fit in tight low-clearance applications and is sized to handle up to 1,800 sq. ft. in dehumidification mode, making it ideal for condos or townhome applications. In ventilation mode, the 70V brings in fresh air for homes up to 3000 sq.’ without bringing in uncomfortable moisture. The 70V is controlled from either the unit or from an optional remote wall control with dehumidification software.

  • Automatically energizes compressor when entering air is above enthalpy set point
  • 62.2 Compliant Ventilator and Dehumidifier in one product
  • Ventilation up to 125 cfm – sized for a 4BR, 3000 sq.’ home
  • Up to 70 ppd moisture removal in dehumidification mode
  • MERV 11 Filter included
  • Dedicated Control or use Nexia enabled thermostat control
down arrow
Show more
EERV100/EERV200/EERV300

ENVIROWISE™ ENERGY RECOVERY VENTILATOR

Envirowise™ Energy Recovery Ventilator provides a whole-house solution for fresh air ventilation. Envirowise™ ERV exhausts stale indoor air and brings in fresh, preconditioned, outdoor air, so your home can be a cleaner, more enjoyable place to live. This ventilator also decreases the level of odors, chemical vapors and naturally occurring gases that become trapped in tightly sealed homes. Plus, with its quiet operation and durable components, you can count on fresh air from Envirowise™ ERV for years to come.

  • Multi-position mounting
  • Up to 78% sensible heat recovery
  • High-efficiency crossflow energy transfer core
  • Slide-out filter
  • Percent timer control included
  • Permanently lubricated ball-bearing fan motor

Show more
QF130V

INLINE VENTILATOR

The EnviroWise™ QF130V inline ventilator offers homeowners a cost effective mechanical fresh air solution that controls humidity and temperature. The QF130V has a full ECM motor (an industry first) that makes installation fast and easy, with no balancing dampers required. The ECM motor allows for adjustable airflow to meet the ventilation requirements for homes up to 3500 sq. ft. The installer dials in the quantity (CFM) of fresh air needed and sets the desired limits for outside humidity and temperature, and the QF130V is ready. A 24V relay is included with the unit and allows the flexibility of controlling the QF130V from the wall mounted thermostat.

  • 62.2 Compliant Ventilation
  • Full ECM Motor with Intelligent Logic Controller
  • Adjustable airflow from 40 to 130 cfm to meet ventilation codes for all size homes.
  • 24V functionality from a Nexia Enabled wall control, or use the on-board controller for “set-it and forget-it” installation
  • MERV 8 filter included for improved IAQ
Show more
EDHUM

EDHUM DEHUMIDIFIER

American Standard now offers 4 additional models of horizontal dehumidifiers that have capacities from 98 pints per day all the way up to 205 pints per day of moisture removal. That takes care of homes from 1400 sq. ft. to 5000 sq. ft. Whatever the climate, Trane has an answer for humidity and comfort.

  • ENERGY STAR® rated
  • Exclusive XT coil technology means higher efficiency humidity removal rates than standard units
  • Optional ventilation capability to meet ASHRAE 62.2 requirements
  • Can be ducted to and wired to operate with HVAC system or can used independently of HVAC system with internal blower and wired control
  • MERV 11 Filter included
down arrow
Show more
EHUMD500

FAN POWERED HUMIDIFIER

The EHUMD500 Envirowise™ humidifier is a fan-powered unit that adds the right amount of moisture in every room, with a capacity of 18 gallons per day and up to 4,200 square feet. Temperature is just one factor in total home comfort, especially in dry weather. Envirowise™ trusted humidifiers can protect your wood floors and furnishings from drying out in the winter, can help alleviate allergy symptoms, improve comfort, and save energy by lowering the thermostat temperature.

  • Capacity: 18 gallons per day
  • Square foot capacity: Up to 4,200
  • Unit type: Power humidifier/automatic control
Show more
EHUMD300

LARGE BYPASS HUMIDIFIER

The EHUMD300 Envirowise™ humidifier is a large bypass unit that provides the right amount of moisture in every room, with a capacity of 16.8 gallons per day and up to 4,000 square feet. Temperature is just one factor in total home comfort, especially in dry weather. Envirowise™ trusted humidifiers can adjust from summer to winter to provide the right amount of moisture to the air in your home, and can help alleviate allergy symptoms. It’s not just comfort. It’s relief for your skin.

  • Capacity: 16.8 gallons per day
  • Square foot capacity: Up to 4,000
  • Unit type: Large bypass humidifier/automatic control
down arrow
Show more
EHUMD200

SMALL BYPASS HUMIDIFIER

The EHUMD200 Envirowise™ humidifier is a small bypass unit that provides the right amount of moisture in every room, with a capacity of 12 gallons per day and up to 3,000 square feet. Temperature is just one factor in total home comfort, especially in dry weather. Envirowise™ trusted humidifiers can adjust from summer to winter to provide the right amount of moisture to the air in your home, and can help alleviate allergy symptoms. It’s not just comfort. It’s relief for your skin.

  • Capacity: 12 gallons per day
  • Square foot capacity: Up to 3,000
  • Unit type: Small bypass humidifier/manual control
Show more
EHUMD800

STEAM HUMIDIFIER

Envirowise™ EHUM800 Steam Humidifier is the ultimate solution in providing the correct amount of indoor moisture in all climates with all types of heating systems. The EHUM800 Steam Humidifier protects wood floors, moldings, and furnishing from harmful dry conditions that can cause damage and operates independently of the heating system to provide the desired indoor moisture level at all times.

  • Capacity: 11–34.6 gallons per day
  • Square foot capacity: Up to 5,000
  • Unit type: Steam humidifier
Show more
EHUMD800LC

STEAM HUMIDIFIER

Envirowise™ EHUM800LC Steam Humidifier is the ultimate solution in providing the correct amount of indoor moisture in all climates with all types of heating systems. The EHUM800 Steam Humidifier protects wood floors, moldings, and furnishing from harmful dry conditions that can cause damage and operates independent of the heating system to provide the desired indoor moisture level at all times.

  • For 120V applications only
  • For low conductivity water applications
  • Up to 11 gal. per day output
  • Replaceable LC canister available
down arrow
Show more
